Connecting the cooking hob to the power mains
• Power mains protection must conform to the relevant regulations.
• Before connecting the appliance, make sure the voltage specified on the rating plate conforms to
the voltage of the power mains.
• There should be a switching device in the electrical installation that can disconnect all poles of
the appliance form the power mains, with a minimum clearance of 3 mm between the contacts
when open. Suitable devices include fuses, protective switches etc.
• The connection should be adjusted to the current and fuses.
• After installation the parts carrying electrical current and insulated parts shall be protected against
contact.
WARNING!
The appliance may only be connected by an authorised expert. False connection can destroy
parts of the appliance. In such case, there is no right to warranty! Disconnect the appliance from
the power mains before any repair or maintenance operation.

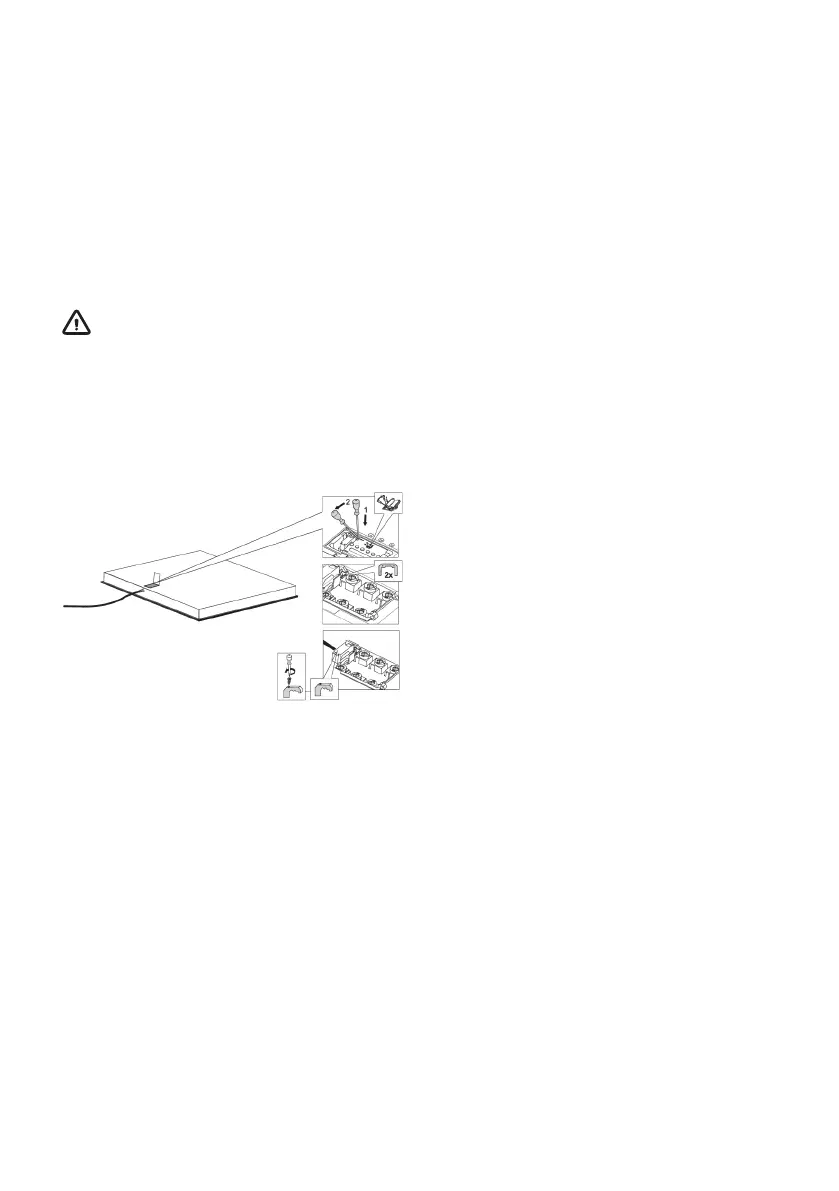

Connection diagram
Connecting the appliance 60 cm
1. Check the voltage. Before connecting the
appliance, make sure the voltage specified
on the rating plate conforms to the voltage
of your power mains. The voltage of your
power mains (220–240 V between L and N)
should be checked by an expert using an
appropriate measuring device.
2. Open the cover of the connection terminal
box.
3. Connect the wires according to your type
of appliance.
4. The jumpers are provided on the
connection terminal.
Power cord
(appliance without a power cord)
• The following may be used for connection:
• PVC insulated connection cables type H05 VV-F or H05V2V2-F with yellow-and-green protective
conductor, or other equivalent or superior cables.
• Exterior cable diameter should be at least 8.00 mm.
• Run the power cord through a cord strain relief (clamp) which
32
