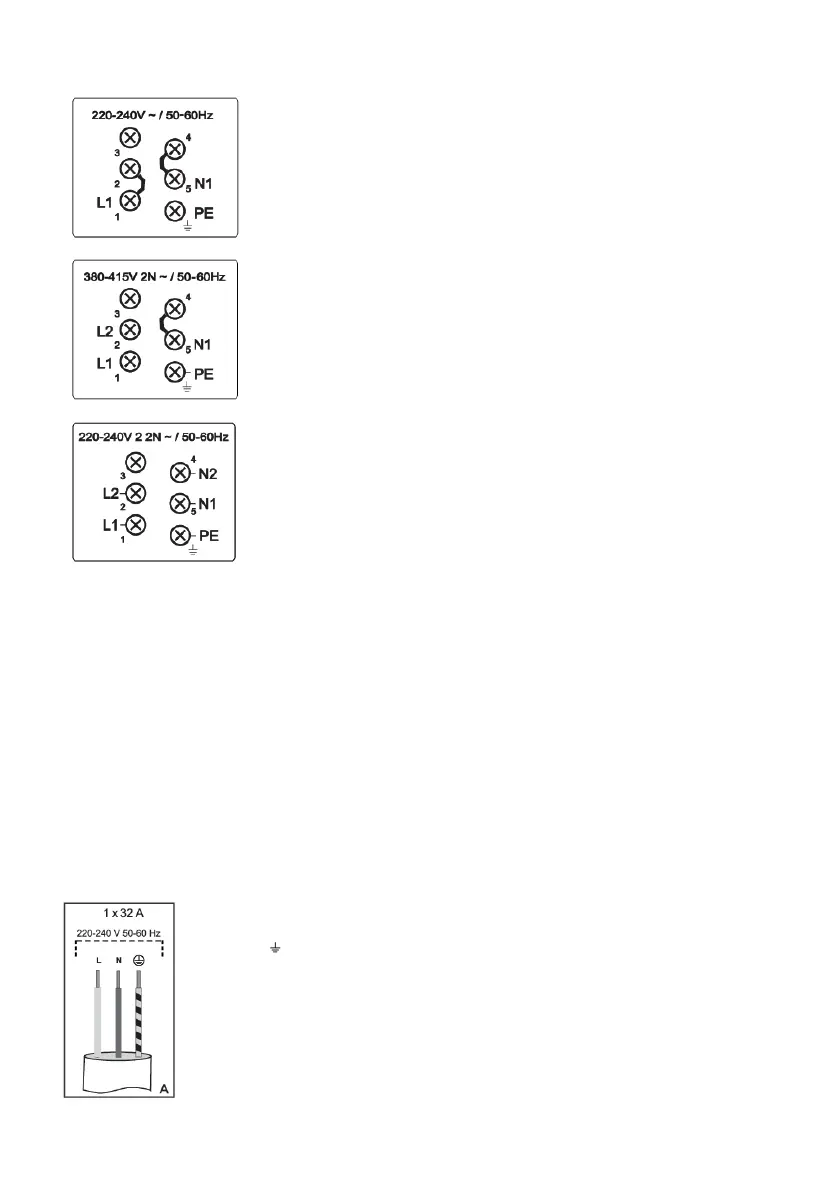

Connection diagram
Single phase connection (32 A)
• Single-phase connection (1 1N, 220–240 V~ /50–60 Hz):
Voltage between line and neutral conductor is 220–240 V~. Install
a jumper between terminals 1 and 2, and between terminals 4
and 5.
-
- The circuit should be fitted with a fuse of at least 32 A. Power
cord core cross-sectional area should be at least 4 mm².
2-phase connection (16A)
• 2 phases, 1 neutral conductor (2 1N, 380–415 V~ /50–60 Hz):
- Voltage between the line and neutral conductor is 220–240 V~.;
voltage between lines is 380–415 V~. Install a jumper between
the terminals 4 and 5. The circuit should be fitted with at least
two fuses of at least 16 A each. Power cord core cross-sectional
area should be at least 1.5 mm².
only for NL!
• 2 phases, 2 neutral conductors (2 2N, 220–240 V 2 2N ~ /50–60Hz):
- Voltage between phases and neutral conductor is 220-240 V~.
- The circuit should be fitted with at least two fuses of at least 16 A
each. Power cord core cross-sectional area should be at least
1.5 mm2.
Connecting the power cord
(appliance with a power cord)
• The appliance has to be hard-wired directly to the power mains.
• Devices for disconnecting from the power mains have to comply with the relevant regulations.
• Do not extend the power cord and do not lead it over sharp edges.
• If the appliance is installed above an oven, make sure the power cord is never in contact with the
oven's hot parts.
Single-phase connection
Connect the appliance as shown in Diagram A. If your power mains do not allow a 32 A fuse, the
appliance power should be decreased or limited accordingly.
See chapter User Settings.
L = brown
N = blue
= yellow/green
