Operating the cooking hob

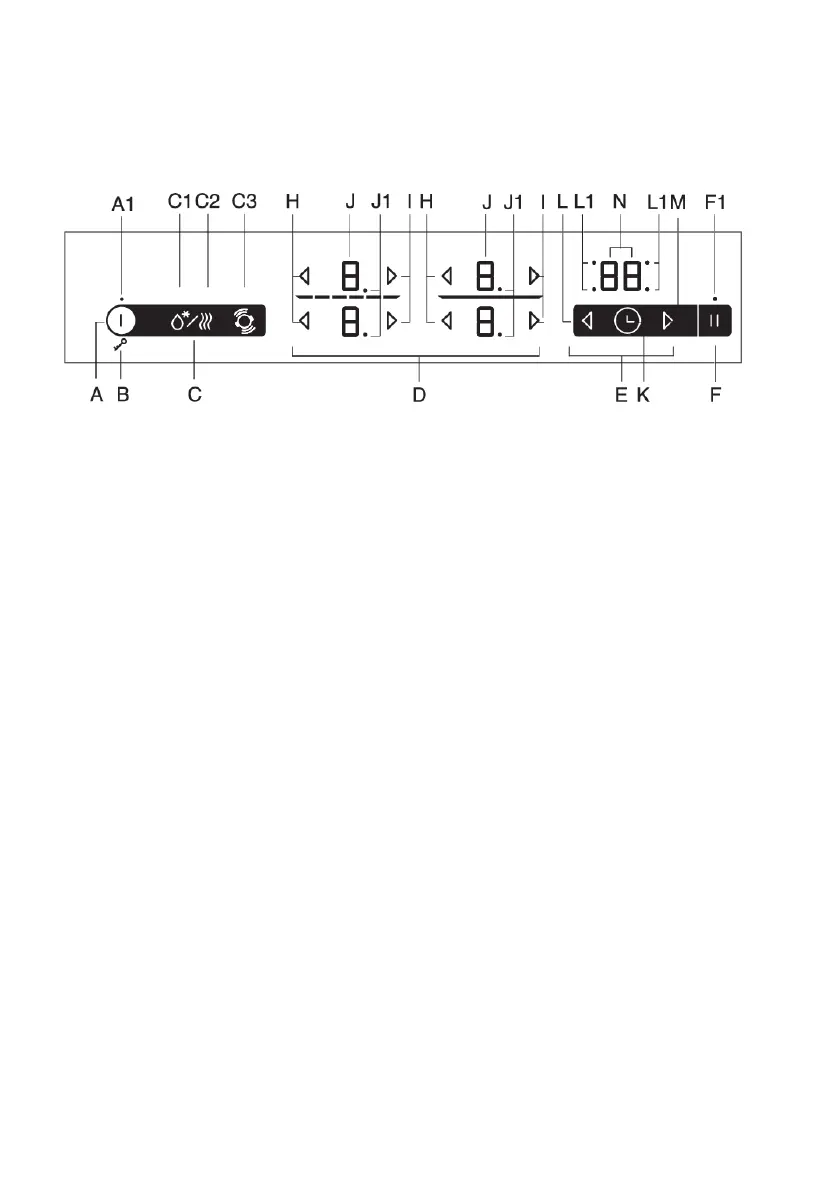

Control unit
(depending on the model)
A Hob on/off key
A1 On/off/child lock indicator light
B Lock/child lock
C Defrosting/reheating key
C1 Defrosting indicator light
C2 Reheating indicator light
C3 Pan position recognition with automatic bridging of cooking zones
D Cooking zone controls
E Timer functions
F Stop/go/memory function
F1 Stop/go and memory function indicator light
H Power decrease key
I Power increase key
J Power level displays
J1 Decimal point indicating half-step power level for the cooking zone
K Program timer on/off
L Program timer setting key (–)
L1 Indicator light for active program timer on respective cooking zones
M Program timer setting key (+)
N Time display
Display units also work as keys for adjusting the settings.
