Installing a built-in hob
Installation procedure
• The worktop has to be completely level.
• Suitably protect the edges of the cut aperture.
• Connect the cooking hob to the mains power supply (see instructions for the connection of the
cooking hob to mains power supply).
• Insert the hob into the cut aperture.
• Installation of the appliance into a kitchen
worktop and its connection to the power
mains may only be performed by an
adequately qualifi ed technician.
• Veneer or other fi nish of the piece of
kitchen furniture into which the hob is to be
built in should be treated with heat resistant
glue (100°C); otherwise, the worktop fi nish
may be discolored or deformed.
• Use of solid wood corner trims on worktops
behind the cooking zone is only allowed, if
the clearance between the trim and the
cooking hob is no smaller than indicated
on the installation plans.
• Cooking hob is dimensioned to be built into
the worktop over a piece of kitchen
furniture, with a width of 600 mm or more.
• Hanging, or wall-mounted kitchen elements should be installed high enough not to interfere with
the work process.

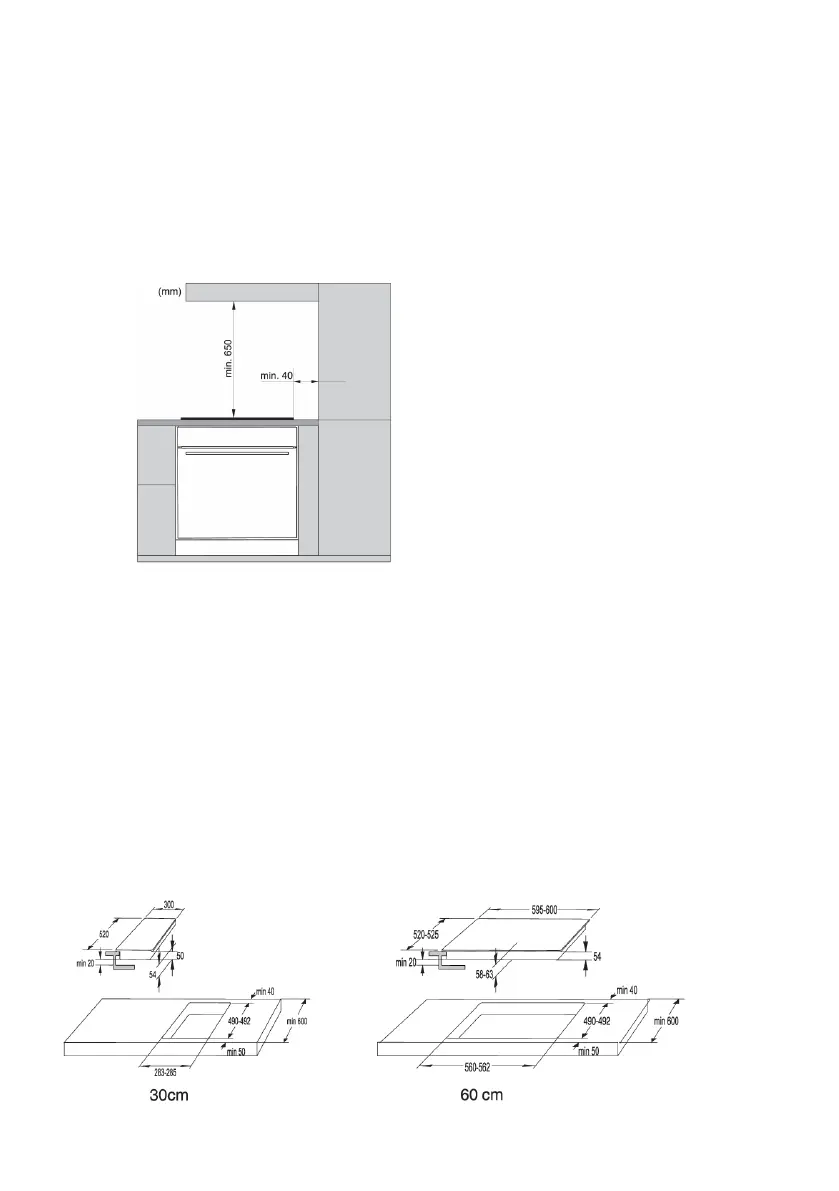

• The distance between the cooking hob and the kitchen hood should be no less than indicated in
the instructions for kitchen hood installation. The minimum distance is 650 mm.
• The distance between the appliance edge and the adjacent tall kitchen furniture element should
amount to no less than 40 mm.
• Use of solid wood corner trims on worktops behind the cooking zone is only allowed, if the
clearance between the trim and the cooking hob is no smaller than indicated on the installation
plans.
• Minimum distance between the built-in cooking hob and the rear wall is indicated on the installation
drawing.
26
