Air vents in the lower kitchen cabinet
INFORMATION!
Normal operation of the induction cooking hob electronic components requires sufficient air
circulation.

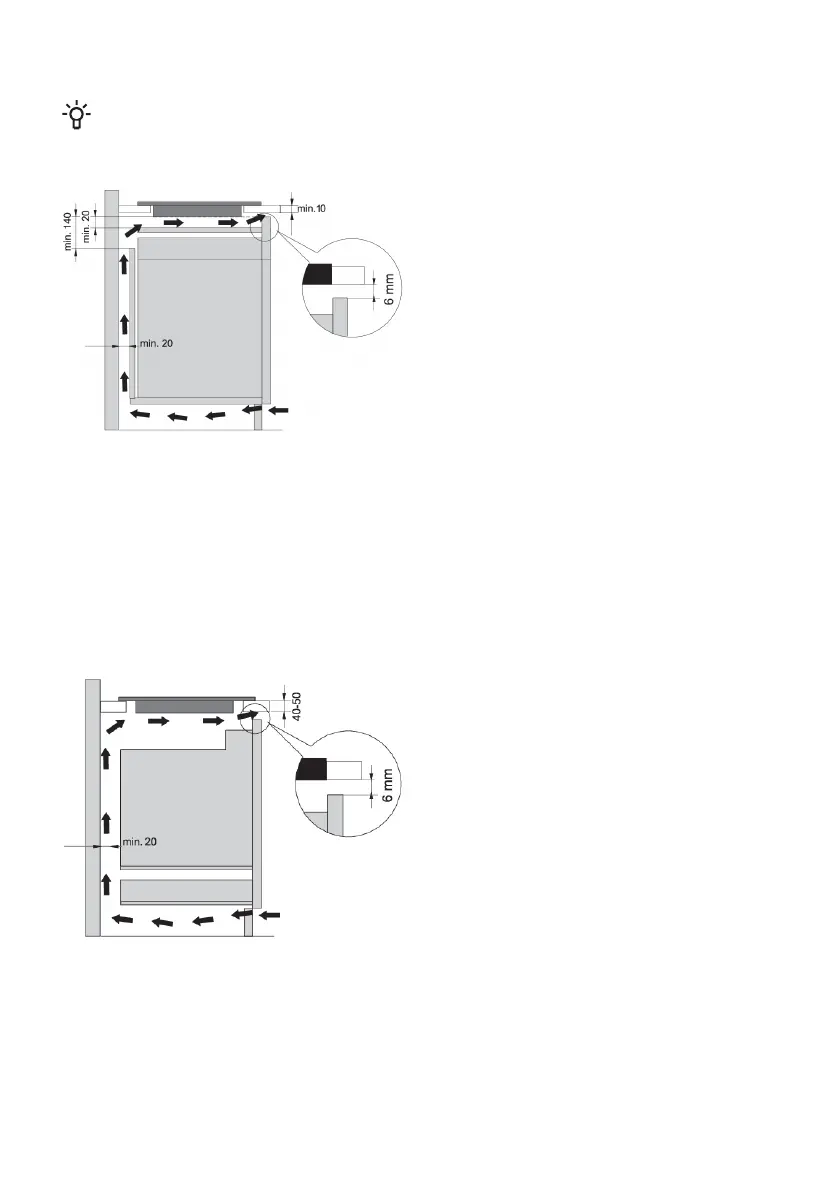

Lower cabinet with a drawer
• There must be an opening with a height of
no less than 140 mm along the entire width
of the cabinet in the cabinet rear wall. In
addition, there should be an opening of at
least 6 mm in the front side, along the entire
width of the cupboard.
• A horizontal partition panel should be
installed underneath the cooking hob along
its entire length. There should be at least
20 mm of clearance between the lower end
of the appliance and the partition panel.
Adequate ventilation should be allowed
from the rear side.
• The hob is fitted with a fan located in its lower part. If there is a drawer below the kitchen cabinet,
do not use it to store small objects or paper as these could, if sucked into the fan, damage the
fan and the cooling system. Moreover, do not use the drawer to store aluminium foil or flammable
substances or liquids (such as sprays). Keep such substances away from the cooking hob. Danger
of explosion!
• There should be at least 20 mm of clearance between the contents of the drawer and the fan inlet
vents.
Lower cabinet with an oven
• Installing an oven under the induction hob
is possible for oven types EVP4.., EVP2..,
and EVP3.. with a cooling fan.
• Before installing the oven, the kitchen
cabinet rear wall has to be removed in the
area of the opening for installation.
• In addition, there should be an opening of
at least 6 mm on the front side, along the
entire width of the cabinet.
• If other appliances are installed under the
induction cooking hob we cannot guarantee
their correct operation.
27
