Hisense I6433C7 User Manual

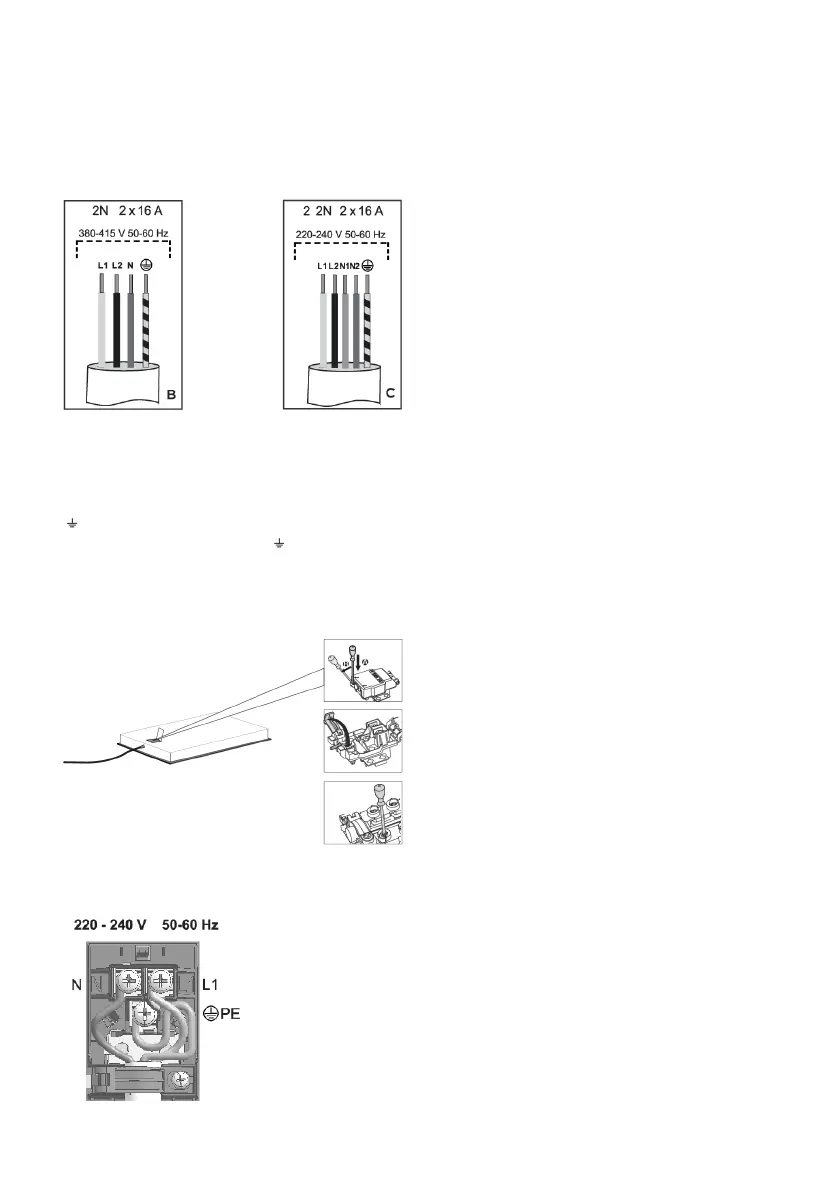

Two-phase connection
• If your electric mains have 2 line conductors and 1 neutral conductor, connect the appliance as
shown in Diagram B.
• If your electric mains have 2 line conductors and 2 neutral conductors, connect the appliance as
shown in Diagram C.
L1 = brown
L2 = black
N1 = blue
N2 = grey
= yellow/green
L1 = brown
L2 = black
N = blue
= yellow/green
only for NL!
Connecting the appliance 30 cm
1. Check the voltage. Before connecting the
appliance, make sure the voltage specified
on the rating plate conforms to the voltage
of your power mains. The voltage of your
power mains (220–240 V between L and N)
should be checked by an expert using an
appropriate measuring device.
2. Open the cover of the connection terminal
box.
3. Connect the wires according to your type
of appliance.
Connection diagram
The circuit should be fitted with a fuse of at least 16 A.
Appliances with a width of 30 centimetres (two cooking zones) only allow
single-phase connection. The cross-sectional area of the power cord
core should be at least 1.5 mm²!
34

Hisense I6433C7 Specifications

General

Hob type	Zone induction hob
Frame type	Frameless
Finish type	Gloss
Warming zone	Yes
Product color	Black
Hob width size	59.5 cm
Top surface type	Glass-ceramic
Appliance placement	Built-in
Cooking zone 1 type	Regular
Cooking zone 3 type	Large
Cooking zone 4 type	Simmer
Cooking zone 1 boost	2000 W
Cooking zone 1 power	1500 W
Cooking zone 1 shape	Round
Cooking zone 4 boost	1600 W
Cooking zone 4 power	1200 W
Warming zone position	-
Cooking zone 1 diameter	180 mm
Cooking zone 1 position	Left front
Cooking zone 2 position	Left rear
Cooking zone 3 diameter	210 mm
Cooking zone 3 position	Right rear
Cooking zone 4 diameter	145 mm
Cooking zone 4 position	Right front
Number of cooking zones	4 zone(s)
Number of warming zones	4
Cooking zone 1 power source	Gas
Cooking zone 2 power source	Electric
Number of gas cooking zones	0 zone(s)
Stop & Go function	No
Country of origin	Slovenia
Clock type	Electronic
Timer type	Digital
Control type	Touch
Display type	LED
Control position	Front
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Connected load (gas)	0 W
Connected load (electric)	7200 W
Package depth	575 mm
Package width	640 mm
Package height	160 mm
Package weight	8100 g

Weight and Dimensions

Depth	520 mm
Width	595 mm
Height	58 mm
Weight	7600 g
Cord length	0 m
Installation compartment depth	490 mm
Installation compartment width	560 mm
Installation compartment height	74 mm
