Introduction
(1) Control panel (6)
(2) Lamp cover (103)
The lamp unit is inside.
(3) Remote sensor (
17)
(4) Lens (107)
(
5) AC IN (AC inlet) (16)
(6) Ports (6)
(7) Exhaust vent
(8) Speaker (
13, 21, 48)
(9) Elevator feet (x 2) (
24)
(10) Spacer (24)
(11) Security slot (16)
(
12) Security bar (16)
(13) Strap hole (4)
(14) FOCUS ring (24)
(15) Filter cover (
105)
The air lter and intake
vent are inside.
(16) Intake vents
►HOT! : Do not touch around the lamp cover and the exhaust
vents during use or just after use, since it is too hot.
►Do not look into the lens or vent while the lamp is on, since the strong light is
not good for your eyes.
►Do not use the security bar and slot to prevent the projector from falling down,
since it is not designed for it.
WARNING
►Maintain normal ventilation to prevent the projector from
heating up. Do not cover, block or plug up the vents. Do not place anything that
can stick or be sucked to the vents, around the intake vents. Clean the air lter
periodically.
CAUTION

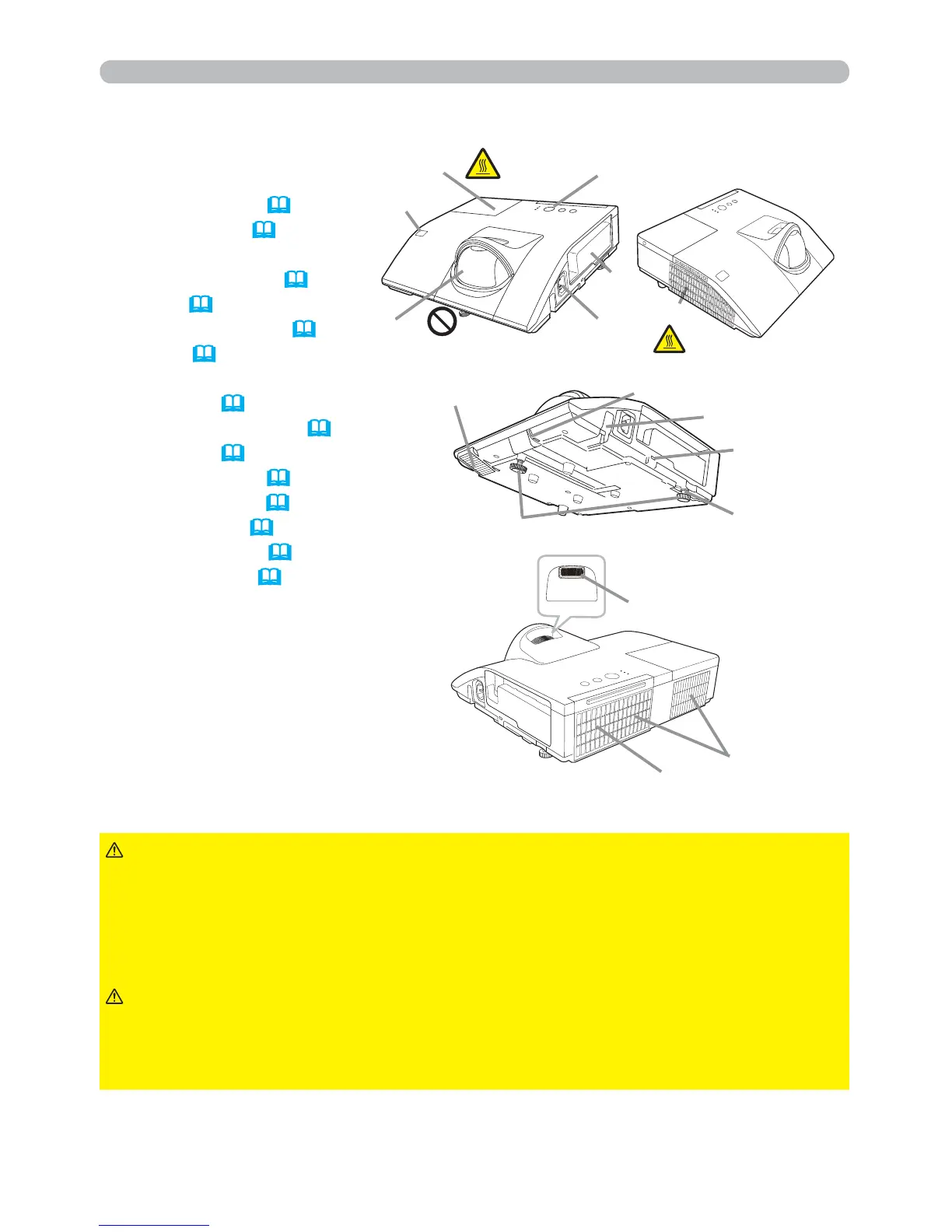

Part names
Projector
(14)
(16)
(3)
(5)
HOT!
HOT!
(2)
(1)
(9)
(10)
(6)
(12)
(11)
(7)
(15)
(8)
(4)
(13)
