Hitachi CP-WU8450 User Manual

33
Operating


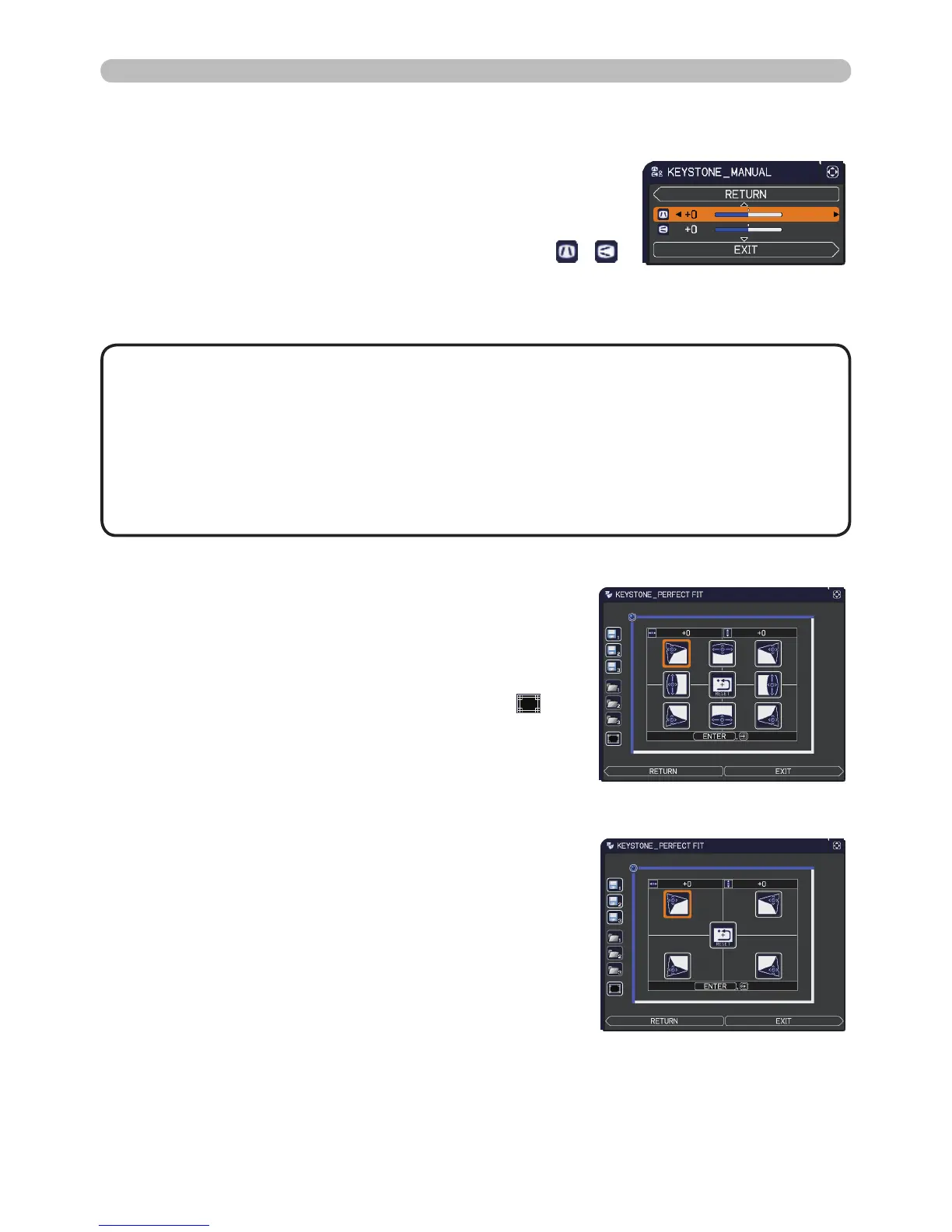

PERFECT FIT:
When PERFECT FIT is pointed at, pressing the
► or ENTER button displays the KEYSTONE_
PERFECT FIT dialog.
This projector is equipped with a test pattern for
PERFECT FIT. Select the test pattern icon
shown in the lower left of the dialog with the ◄/▼
buttons. When you press the ENTER or INPUT
button, the test pattern appears or disappears.
1.
If it is necessary to initialize the current
adjustment, point at RESET in the dialog
with the RESET button, and press the ENTER or
INPUT button.
2.
Select one of the corners to be adjusted with
the ▲/▼/◄► buttons and press the ENTER
or INPUT button. For CP-X8150, CP-X8160, CP-
WX8240 and CP-WX8255, also the sides can be
selected to adjust.

MANUAL:
When MANUAL is pointed at, pressing the ► or
ENTER button displays the KEYSTONE_MANUAL
dialog.
1.
Select the vertical or horizontal keystone ( / )
with the ▲/▼ buttons.
2.
Use the ◄/► buttons to adjust the keystone distortion.
Correcting the distortion (continued)
(continued on next page)
• When the zoom adjustment is set to the TELE (telephoto focus), this
function may be excessive. This function should be used when the zoom ad-
justment is set to the full WIDE (wide-angle focus) whenever possible.
• When the horizontal lens shift is not set to the center, this function may not
work well.
• Point at RETURN in the dialog with the ▲/▼ buttons and press ◄ or ENTER
button to return to the KEYSTONE menu.
NOTE
CP-X8150, CP-X8160,
CP-WX8240, CP-WX8255
CP-SX8350,
CP-WU8440, CP-WU8450

Hitachi CP-WU8450 Specifications

General

Matrix size	0.76 \
Matrix type	3-panel (p-Si TFT active)
Native aspect ratio	16:10
Projection distance	1 - 38.3 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 600 \
Projector native resolution	WUXGA (1920x1200)
Audio input	3
RS-232 ports	1
Zoom capability	Yes
Focal length range	- mm
Lamp type	UHP
Lamp power	330 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	- h
3D	-
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
RMS rated power	16 W
Number of built-in speakers	2
DVI port	No
BNC input ports	5
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Noise level	- dB
Certification	UL/cUL, FCC Part15 class A, AS/NZS CISPR22 class A, CE, GOST-R
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Operating temperature (T-T)	0 - 45 °C
Sustainability certificates	RoHS

Weight and Dimensions

Depth	396 mm
Width	498 mm
Height	135 mm
Weight	8700 g
