Hitachi DSP-160V6WN User Manual

91

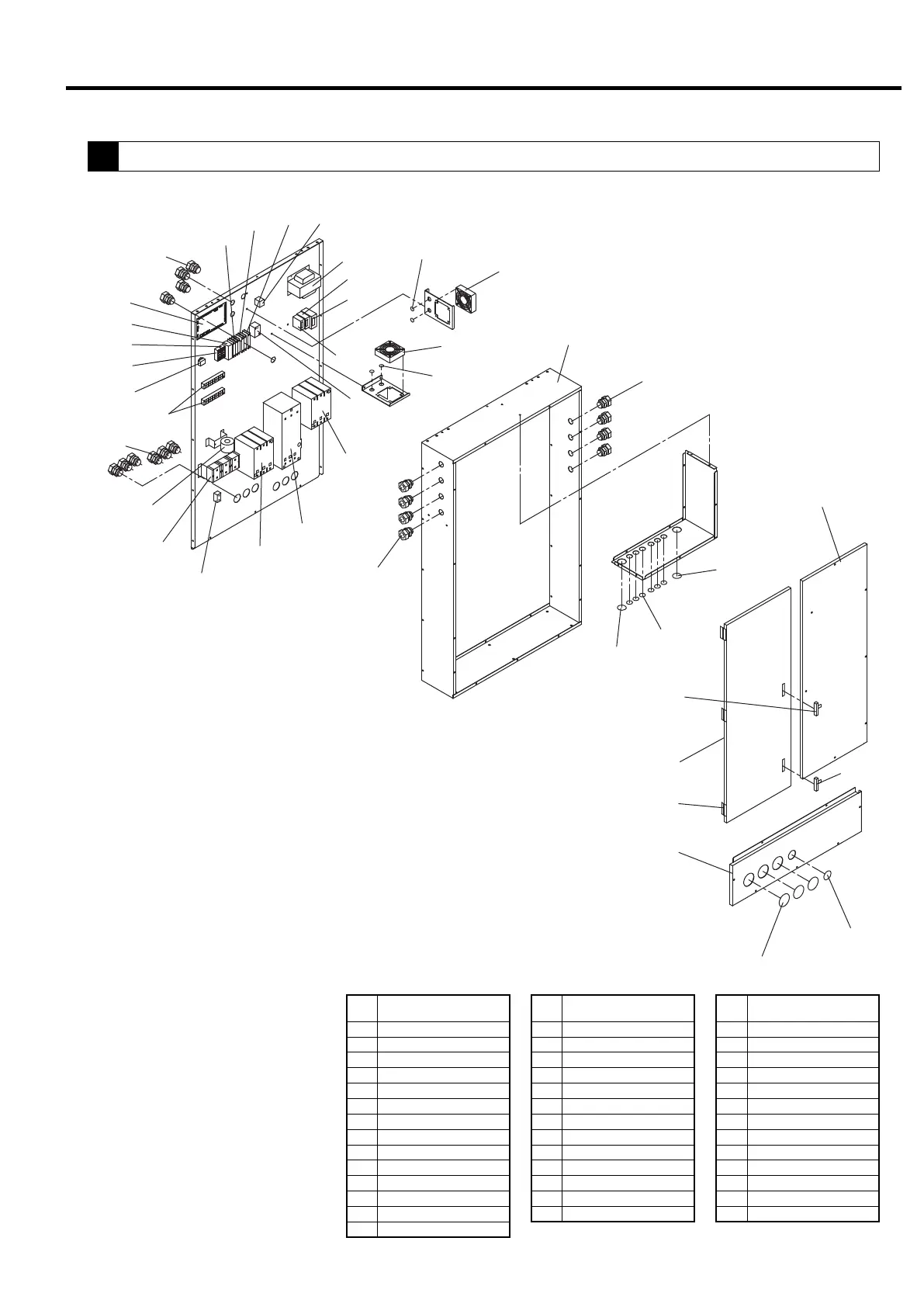

11. PARTS LIST
8
Starter Box (Star-Delta Starting)
Ref.
No.
Description
G03 Conduit
G04 Conduit Nut
G05 Conduit
G06 Conduit Nut
G07 Conduit
G15 AVR
G16 AVR
G17 AVR
G18 Supplemental Protecter
G19 Supplemental Protecter
G20 Supplemental Protecter
G80 Line Filter
G81 Temperature Switch
Ref.
No.
Description
C95 Box
C97 Cover
D06 Terminal Block
D07 Auxiliary Relay
D08 Auxiliary Relay
D12 Cooling Fan
D73 Protective Relay
D75 Transformer
E48 Rubber Bush
E49 Rubber Bush
E50 Rubber Bush
F81 Terminal Block
G02 Conduit Nut
Ref.
No.
Description
700 Control Panel
701
Electromagnetic Contactor
702 Electromagnetic Contactor
704 Electromagnetic Switch
708 Current Transformer
709 Terminal Block
729
Electromagnetic Contactor
743 Rubber Bush
745 CPU PCB
929 Rubber Bush
931 Handle
935 Hinge
B44 Door
B72 Cover
704
D73
745
D07
D08
G19
G17
G15
G16
G20
G18
B44
935
729
D75
C97
C95
E50
G04
G05
B72
702
931
G06
G07
G02
G03
931
E48
E49
G04
G05
709
701
F81
708
E50
D12
D12
929
929
743
D06
G81
G80
