Hitachi DSP-160V6WN User Manual

92

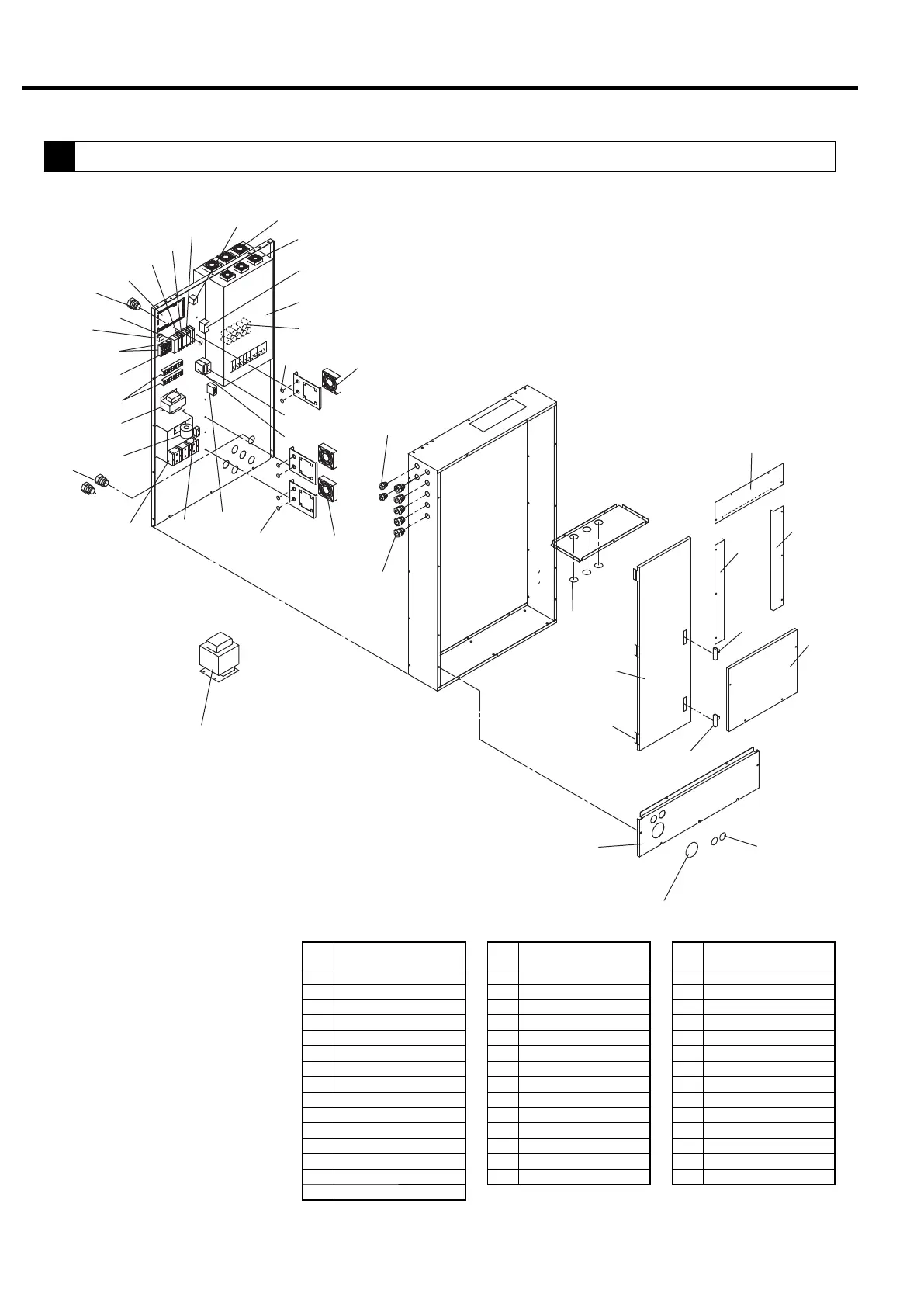

11. PARTS LIST
745
E02
E03
E10
E07
D06
D75
708
709
753
E50
D12
E50
D12
B46
C95
C96
C97
B72
929
B44
935
E49
E48
G20
G19
G18
D07
D08
D73
G17
G15
G16
G81
G06
G07
704
G04
G05
G02
G03
G04
G05
F81
931
931
G80
Ref.
No.
Description
G02 Conduit Nut
G03 Conduit
G04 Conduit Nut
G05 Conduit
G06 Conduit Nut
G07 Conduit
G15 AVR
G16 AVR
G17 AVR
G18 Supplemental Protecter
G19 Supplemental Protecter
G20 Supplemental Protecter
G80 Line Filter
G81 Temperature Switch
Ref.
No.
Description
D06 Terminal Block
D07 Auxiliary Relay
D08 Auxiliary Relay
D12 Cooling Fan
D73 Protective Relay
D75 Transformer
E02 Inverter Cooling Fan 1
E03 Inverter Cooling Fan 2
E07 Smoothing Condenser
E10 Inverter
E48 Rubber Bush
E49 Rubber Bush
E50 Rubber Bush
F81 Terminal Block
Ref.
No.
Description
700 Control Panel
704 Electromagnetic Switch
708 Current Transformer
709 Terminal Block
745 CPU PCB
756 DC Reactor
929 Rubber Bush
931 Handle
935 Hinge
B44 Door
B46 Inverter Cover
B72 Cover
C95 Inverter Cover
C96 Inverter Cover
C97 Inverter Cover
9
Starter Box (Inverter Starting)
