Hitachi DSP-160V6WN User Manual

93

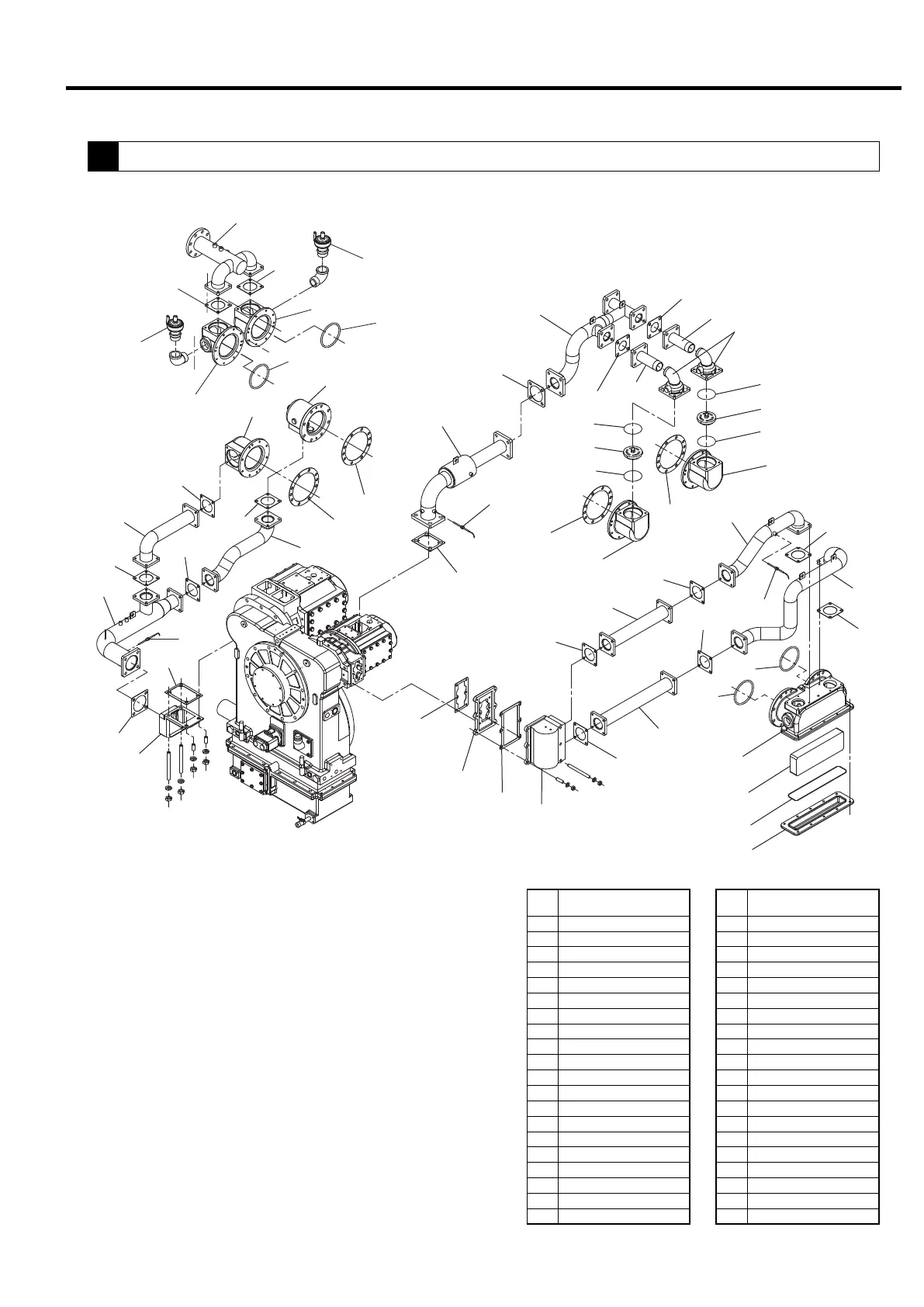

11. PARTS LIST
F66
F65
004
003
870
871
870
001
001
044
044
034
022
D70
035
035
035
035
035
035
865
865
036
036
870
870
871
039
033
002
002
865
868
026
026
F04
F06
F02
F03
029
010
010
D72
D71
023
024
025
H31
H32
H32
021
H34
H33
035
035
F07
875
875
874
865
865
H41
H32
H32
H41
Ref.
No.
Description
001 Aftercooler Header
002
Gasket, aftercooler header
003 Condensate Separator
004
Gasket, condensate separator
010 Gasket, intercooler header
021 Demister
022 Air Piping (1)
023 Air Piping (2)
024 Air Piping (3)
025 Air Piping (4)
026 Air Piping (5)
029 Air Piping (6)
033
Gasket (1), discharge piping
034 Gasket, 1st-stage air end discharge flange
035 Gasket, 1st-stage
036 Gasket, 2nd-stage
039
Gasket, 2nd-stage air end discharge flange
044 Intercooler Header
865
Gasket (2), discharge piping
868 Cover, check valve
Ref.
No.
Description
870 Gasket
871 Check Valve
874 Discharge Piping
875 Safety Valve
D70 Thermistor (1)
D71 Thermistor (2)
D72 Thermistor (3)
F02 Air Piping (7)
F03 Air Piping (8)
F04 Air Piping (9)
F06 Air Piping (10)
F07 Air Piping (11)
F65
Seat, condensate separator
F66 Seat Gasket, condensate separator
H31 Cooler Header (1)
H32 O-Ring, cooler header
H33 O-Ring, demister box
H34 Demister Box
H41 Cooler Header (2)
−−
10
Air Piping
