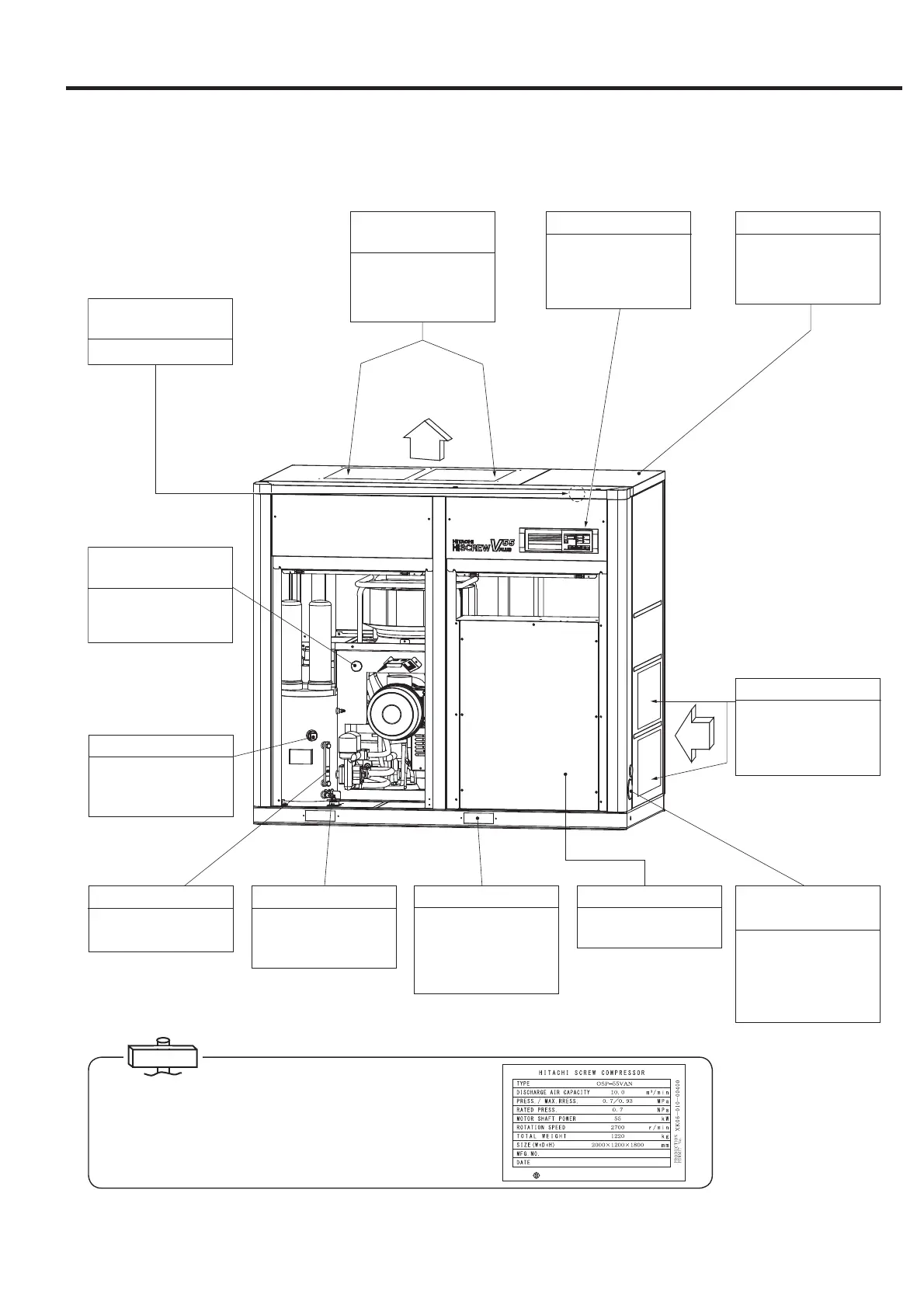

2.1 Appearance
Discharge Air Outlet
(on the rear cover)
Starter
To be located under the
front door.
Compressed air outlet.
Cooling Air Outlet
(from air Compressor)
To discharge the venti-
lating air that has been
heat-exchanged by the
air compressor.
Enclosure
To lower the noise,
sound absorbing mate-
rial is fixed to the inner
surface of the cover.
Instrument Panel
To mount instruments
and switches for the op-
eration (See “3. HOW TO
OPERATE” provision).
Cooling Air Inlet
To be located on the
right cover and to suck
the ventilating air for the
oil cooler, and motor.
Air Intake
(from right side)
Air
Exhaust
Oil Separator tank
internal pressure gauge
To indicate pressure
inside oil separator
tank.
Oil Filling Port
To be used when filling
oil into the oil separator
tank.
Oil Level Gauge
To indicate oil level in
the oil separator tank.
Oil Drain Port
To be used when drain
port oil from the oil sepa-
rator tank.
Fork Slot
To be used when carry-
ing and installing the
unit. Put the attached
noise-proof covers on
them after installation.
Power Cable Conduit Hole
and External Wiring Port
Be sure to connect the
power cable with care
for the power source
electricity specification
(voltage and frequency).
A nameplate is attached on the left enclosure panel. It indi-
cates the
SCREW type (model number), motor output and
frequency, working pressure, and manufacturing number.
Inform the Hitachi distributor of such information whenever
asking it to service your
SCREW.
5
2. PARTS DESCRIPTION AND THEIR FUNCTIONS
IMPORTANT
Hitachi Industrial Equipment (Malaysia) Sdn. Bhd.
