Hitachi PRIMAIDE 1440 - Flowpath Figures; Isocratic System

APPENDIX 3 - 4
FLOWPATH FIGURES
General flowpath figures are shown below. Please select a
plumbing according to your system configuration and the
purpose.
ST :Stainless-steel pipe
TT :Teflon tube
Numbers :Inside diameter.

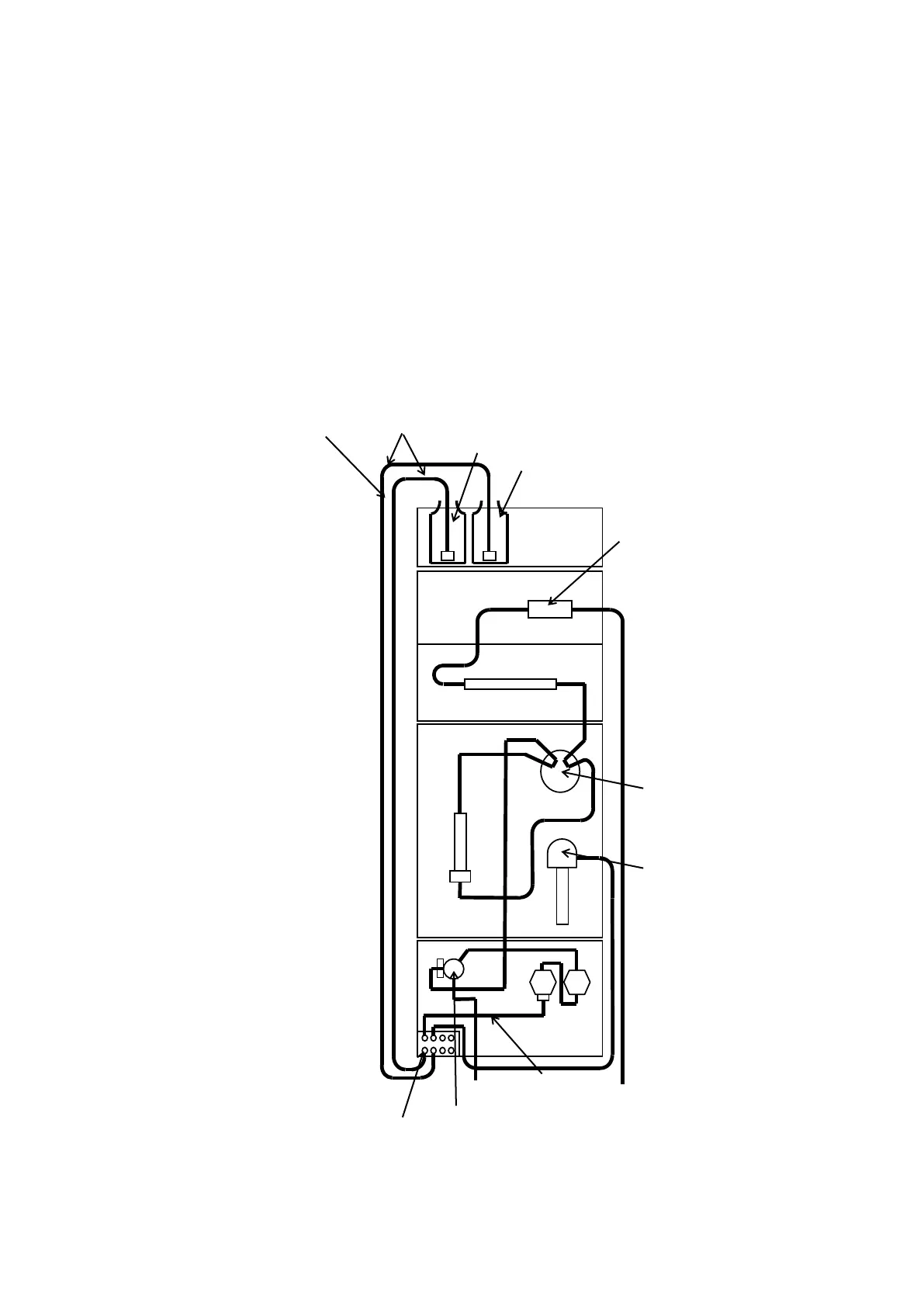

(1) Isocratic System (stacked in one block)
1
1
6
110
OOT
3
2
Primaide1110
Pump
Primaide1310
Column Oven
Primaide1210
Autosampler
Primaide1410/1430
UV/DAD Detector
Primaide
Organizer
Mobile Phase
Drain
Washing Solution
Degassing
device
1.5 TT
Inlet tube
Detector cell
0.33 TT
Injection valve
Syringe valve
Drain valve
1.5TT
0.25 TT
0.25 ST
0.8 ST
Drain
OUT
IN
