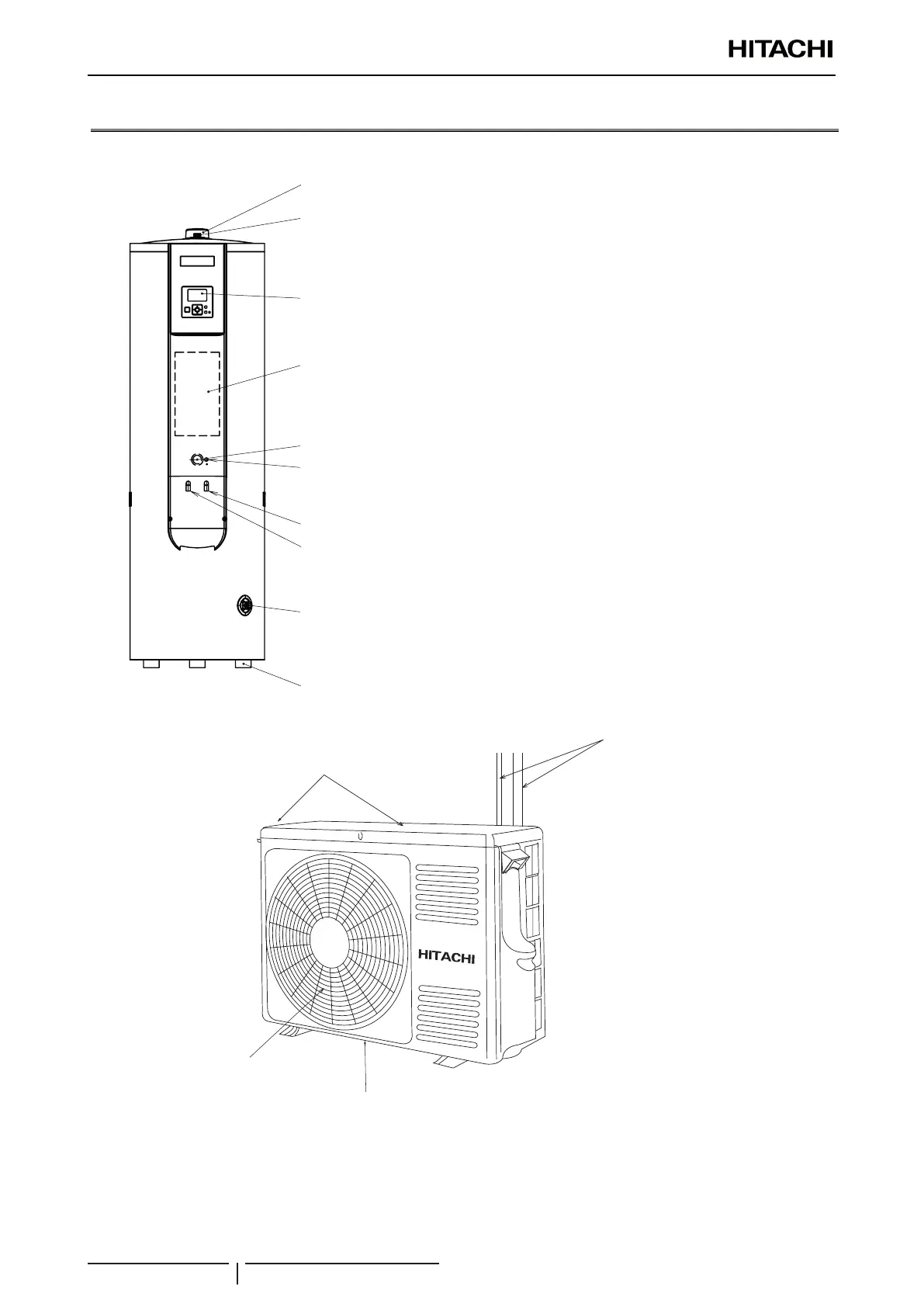

2.1 Name of each part
2.1.1 Tank unit TAW-(190-270)RHC
Mg Anode (Factory Assembled)
Active Anode (Optional)
Cold water inlet (G 3/4” blue)
Mounting feet (x4)
Electrical box
Heater (1.64kW / 230V)
Thermistor
Liquid refrigerant connection
1/4” Ø6.35 mm (black)
Gas refrigerant connection
3/8” Ø9.52 mm (black)
LCD Controller
Hot water outlet (G 3/4” red)
2.1.2 Outdoor unit RAW-35RHC
Refrigerant pipes
Condensed water outlet
Air inlet (back and left side)
Air outlet
! CAUTION
When heating operation, drain or defrosted water ows out from outdoor unit. Don’t close drain outlet portion in chilly area so as not to
freeze these.
? NOTE
• • Mg-Anode should be changed yearly, it may loose its
function for corrosive protection if exceeds the time frame.
• • It is recommended to replace the Mg-Anode every 1 year
depending on water’s quality.
• • Type number for Mg-Anode is E05269. Use this spare
part reference to order it when replacement is needed.
