Hitachi RAW-35RHC - Energy Configuration Function

3 Control functions
Energycongurationfunction
SMGB0135 rev.0 - 06/2020
30
3.13 Energy conguration function
This optional function allows measuring the real power consumption. It can be done by outdoor unit estimation, or
connecting an external power meter.

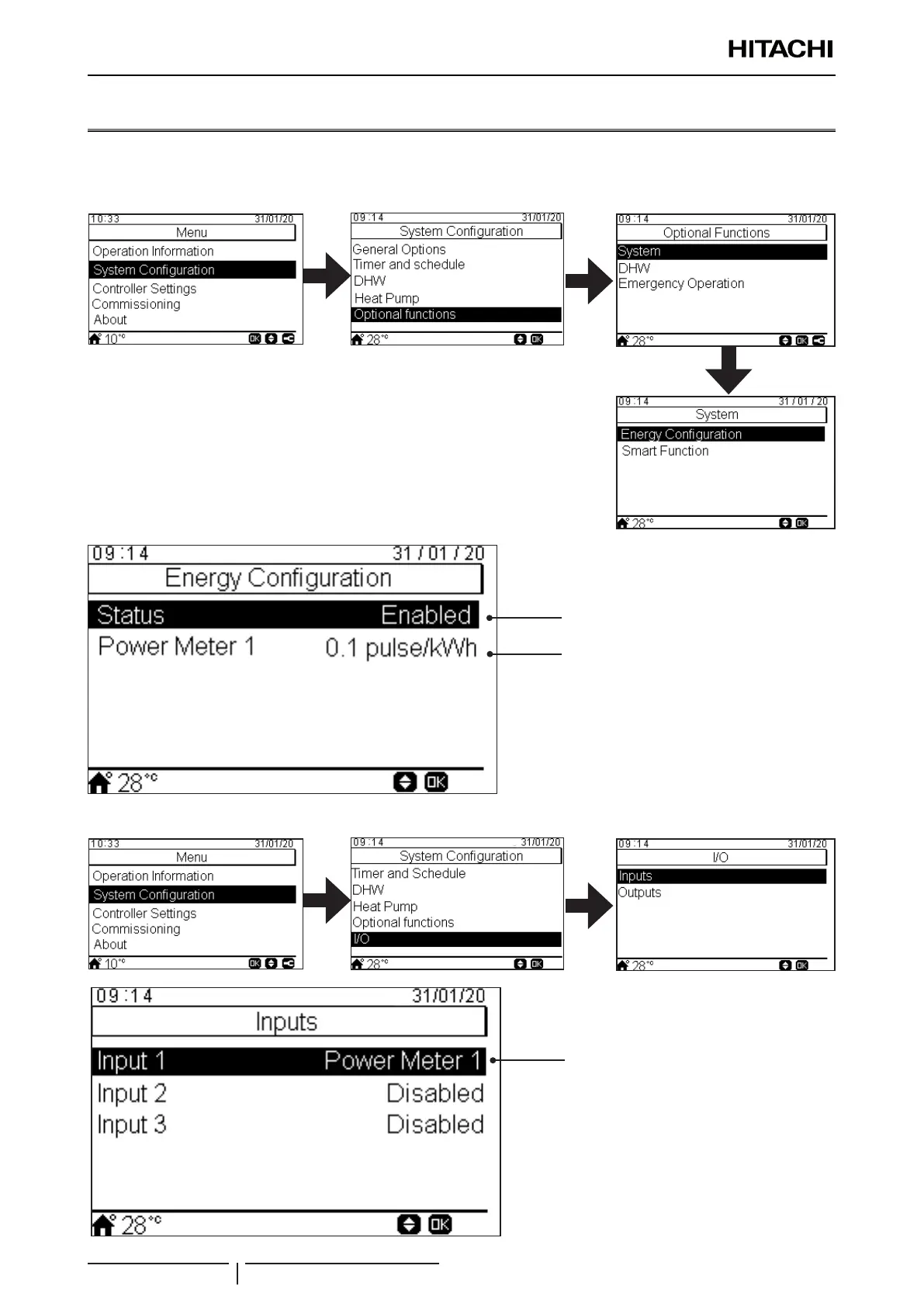

The number of pulses of the power meter is a variable that must be set through the unit controller.
Status of the power meter data control
Number of pulses per kWh of the power
meter. This parameter must be adjusted when
connecting an external power meter.
Range: 0.1/1/10/100/1000 pulse / kWh
AfterenablingtheenergycongurationitisnecessarytoselecttheappropriateinputontheI/Omenu:
Input used as kW/h pulse count for the
monitoring of energy data
