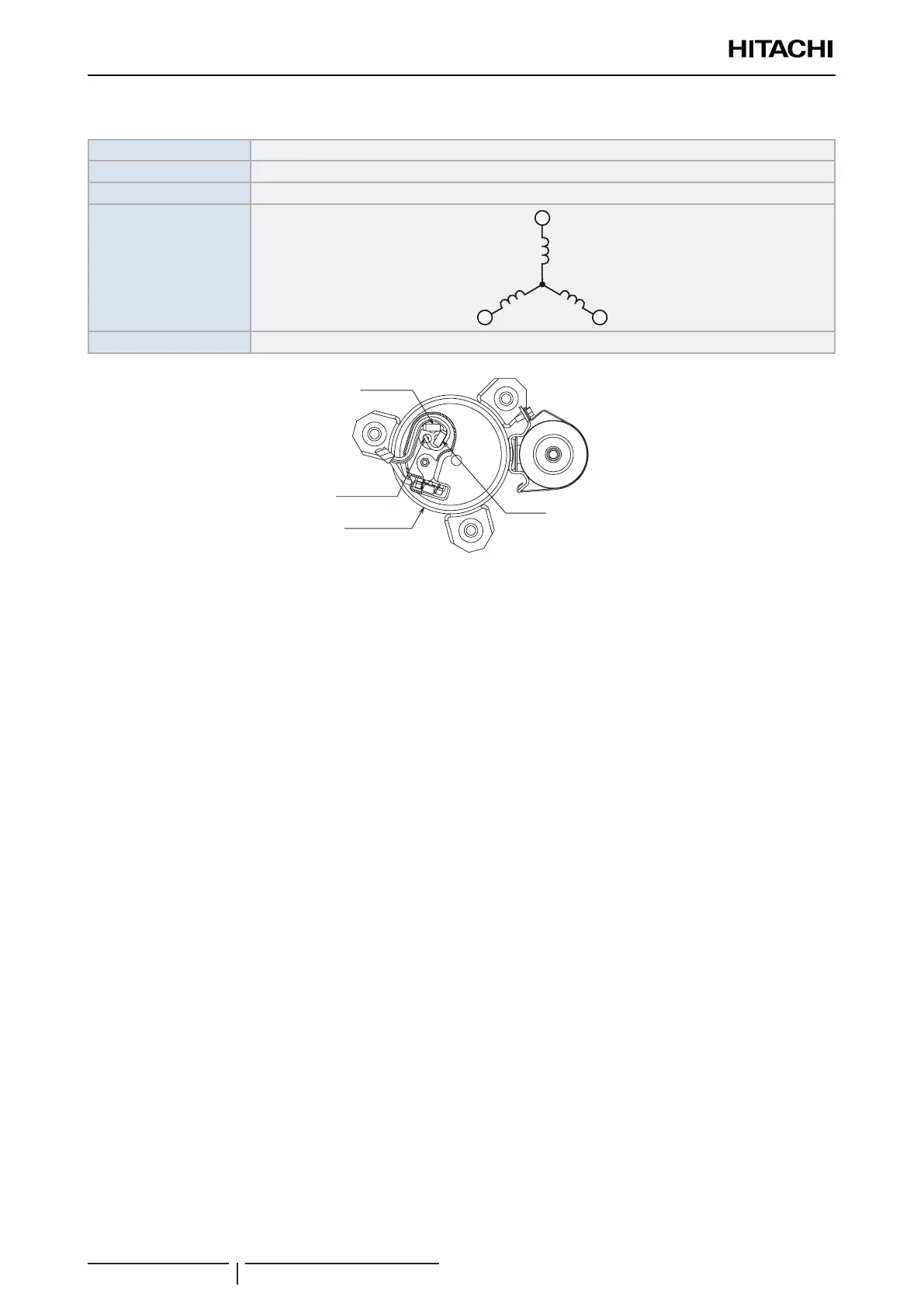

4.1.10 Compressor motor
Compressor type ASD102SKQA6JK6
Power source 220 - 350 V
Output 840 W
Connection
M
M
M
White (U)
Red (W)
Yellow (V)
Resistance value 2 M= 2.167
White (U)
Yellow (V)
Red (W)
Compressor
! CAUTION
Whentherefrigeratingcyclehasbeenoperatedforalongtimewiththecapillarytubescloggedorcrushedorwithtoolittlerefrigerant,
checkthecolouroftherefrigeratingmachineoilinsidethecompressor.Ifthecolourhasbeenchangedconspicuously,replacethecom-
pressor.
