7.1.12 Removing auto louver motors and louver

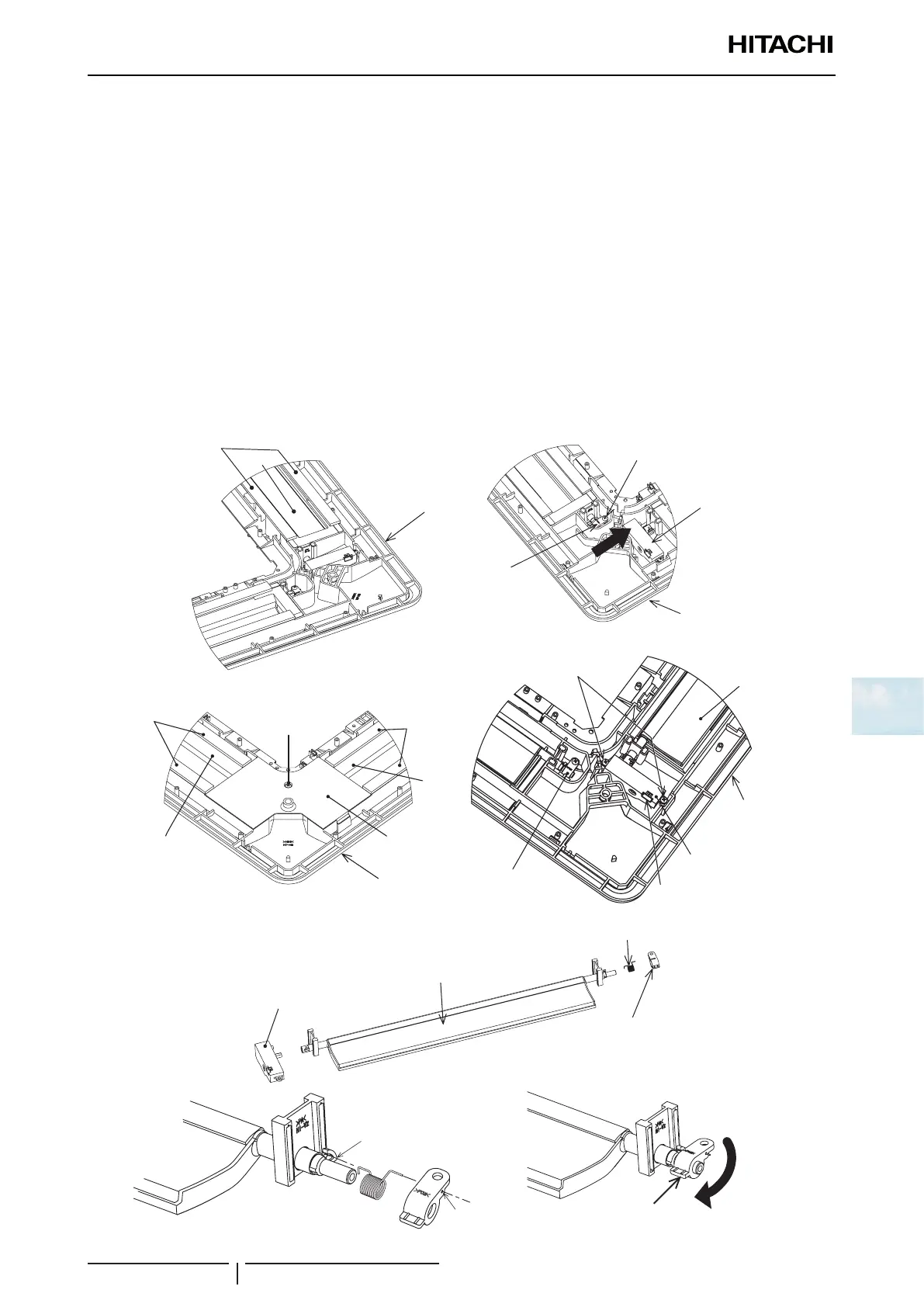

1 Remove the air panel according to the item “7.1.3 Removing optional air panel”.
2 Remove the xing screws for each corner cover and remove the corner covers.
3 Remove the packing and guides.
4 Remove two (2) xing screws for each motor from the air panel.
5 Remove the screw for louver bearing, and pull it out from the air panel. Then, remove the louvres, louver bearings
and motors.
6 Remove the motors from the louvres.
7 Remove each connector connected to the motors.
8 Remove each louver bearing and louver spring.
? NOTE
• When reassembling, securely catch the C-shaped part of louver spring onto the hooking part of louver. Additionally, insert the
L-shaped part of louver spring into the hole of louver bearing.
• Rotate the louver bearing 360º clockwise before xing the screw for louver bearing.
Air panel
Packing
Guide
Louver bearing
Air panel
Motor for auto
louver
Fixing screw
Louver bearing
Fixing screws for
auto louver
Louver
Air panel
Motor for auto
louver
Connector
Louver
bearing
Guide
Fixing screw
Packing
Corner cover
Air panel
Guide
Packing
Louver
Louver spring
Motor for auto
louver
Reassembling
Hooking part
Louver bearing
Louver spring
Hole
Louver bearing
Rotate 360º
clockwise
