7 Servicing
RPI(L/H)-(0.4-6.0)FSRE - Ducted indoor unit
SMGB0137 rev.0 - 05/2021
233
7
7.5.11 Removal of the oat switch
1 Remove the motor and service covers as explained in “7.5.4 Removal of the motor cover” and “7.5.5 Removal of the
service cover”.
2 Remove the drain pan as explained in “7.5.6 Removal of the drain pan”..
3 Loosen the screws securing the oat switch to the support.
4 Loosen the resin nut securing the oat switch and remove it.
? NOTE
• To disconnect and remove the oat switch, previously see the chapter corresponding to the wiring diagrams in this Manual.
• The torque value of the resin nut is 0.3 - 0.4 Nm. If the torque value is higher, the nut will be damaged.

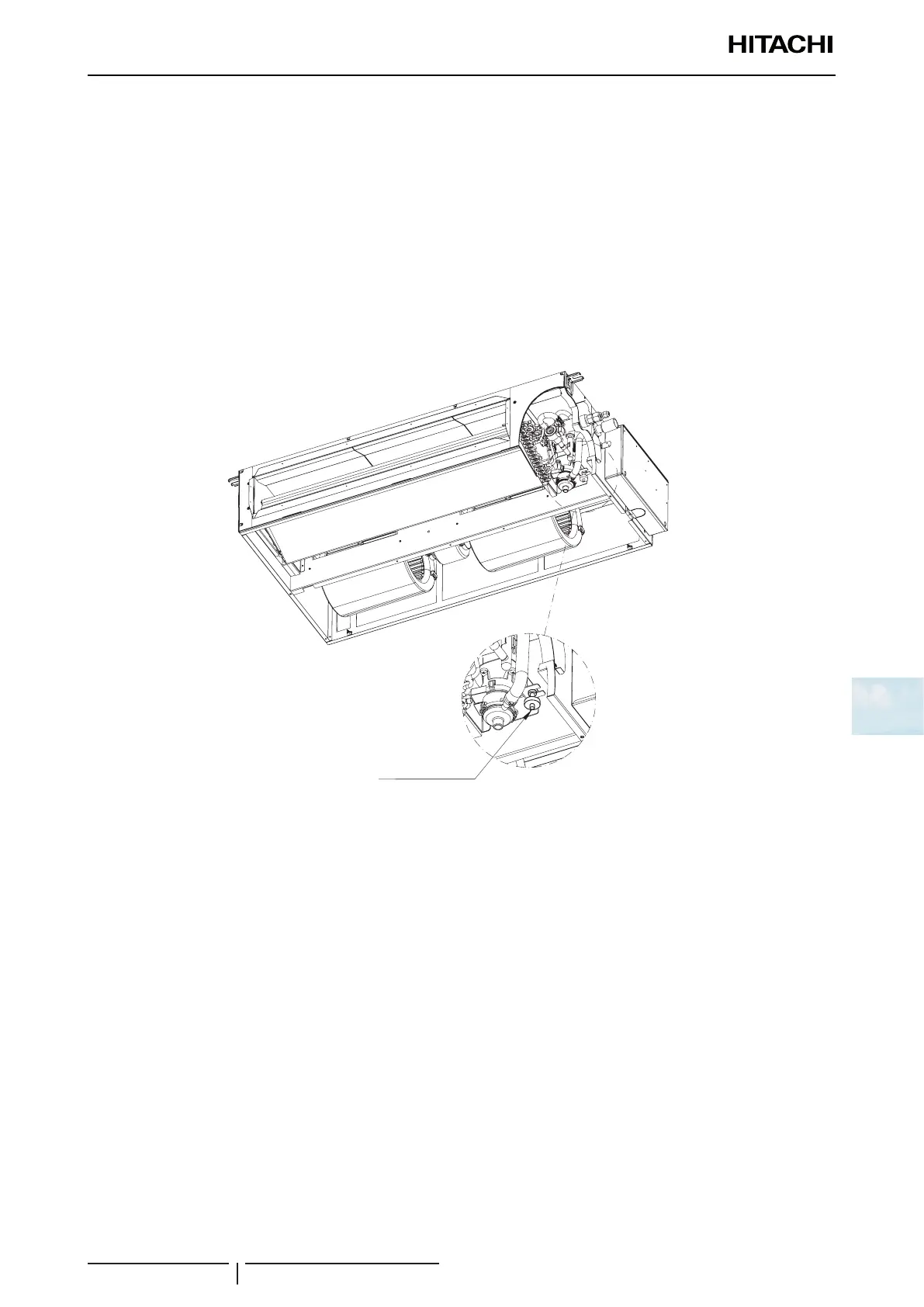

Flow switch
Bottom side
