Hitachi SJ200 Series

Step-by-Step Basic Installation
Inverter Mounting
and Installation
2–12

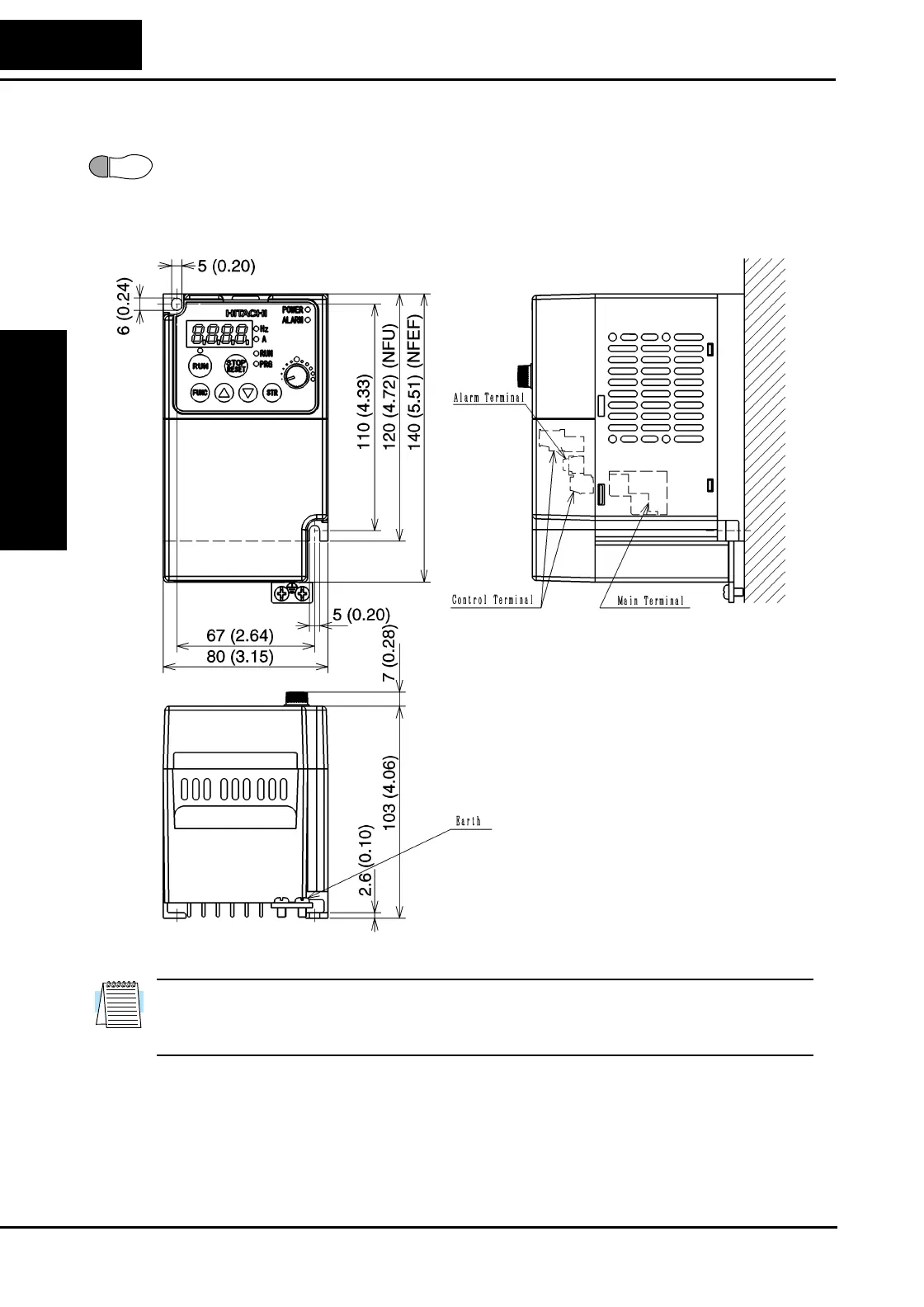

Check Inverter Dimensions
Step 4: Locate the applicable drawing on the following pages for your inverter.
Dimensions are given in millimeters (inches) format.
NOTE: Some inverter housings require two mounting screws, while others require four.
Be sure to use lock washers or other means to ensure screws do not loosen due to
vibration.
4
SJ200–002NFEF, –002NFU
