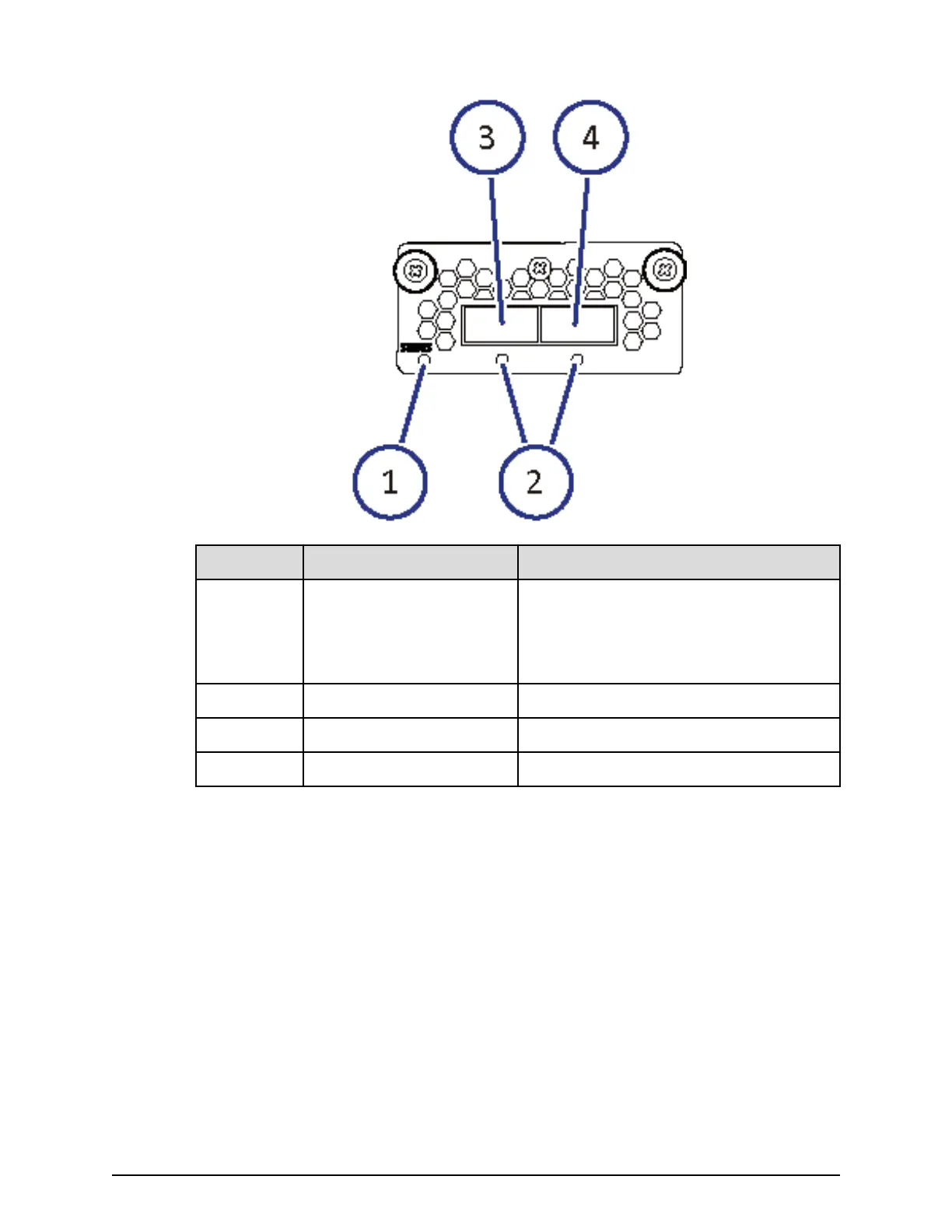

Number Item Description
1 STATUS LED Green: Back-end module is in the power-on
state.
Red: Back-end module can be removed
safely.
2 PORT LED Blue: Link status is normal.
3 PATH 0 connector Connect to a drive tray.
4 PATH 1 connector Connects to a drive tray.
Back-end modules
Chapter 2: Virtual Storage Platform N400, N600 controller
VSP N400, N600 Hardware Reference Guide 33
