Name Model name Height
Number of
drive slots Drive type
DBF DW-F800-DBF 2U (87 mm) 12 Flash module
drive (FMD)

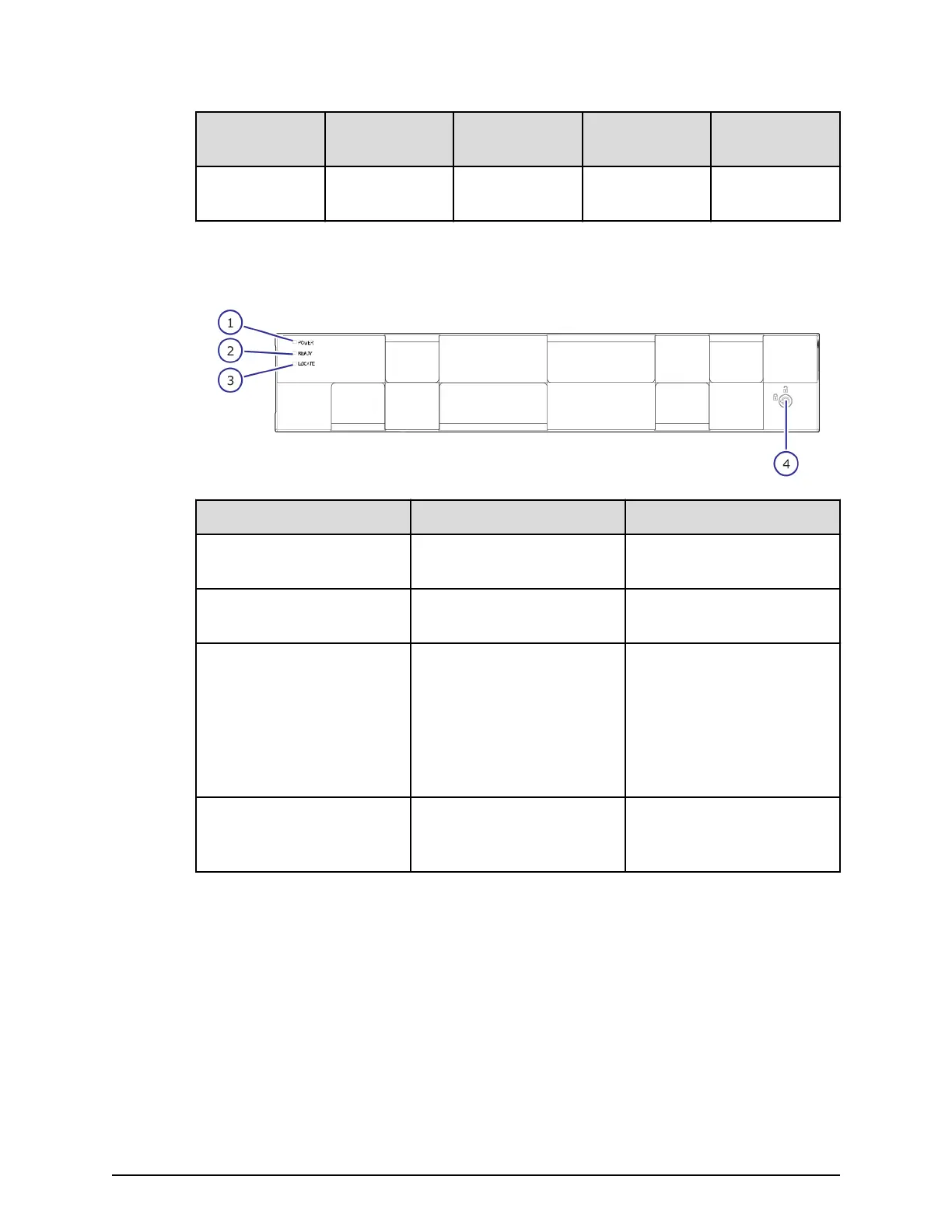

FMD with front panel bezel
Number Item Description
1 POWER LED Green: Drive tray is powered
on.
2 READY LED Green: Drive tray is
operational.
3 Locate LED Amber:
■
Indicates the location of
the chassis.
■
Can be turned on or
turned off by the
maintenance utility.
4 Lock Locks and unlocks the front
panel bezel by using the
supplied key.
FMD with front panel bezel
Chapter 3: Drive trays
VSP N400, N600 Hardware Reference Guide 43
