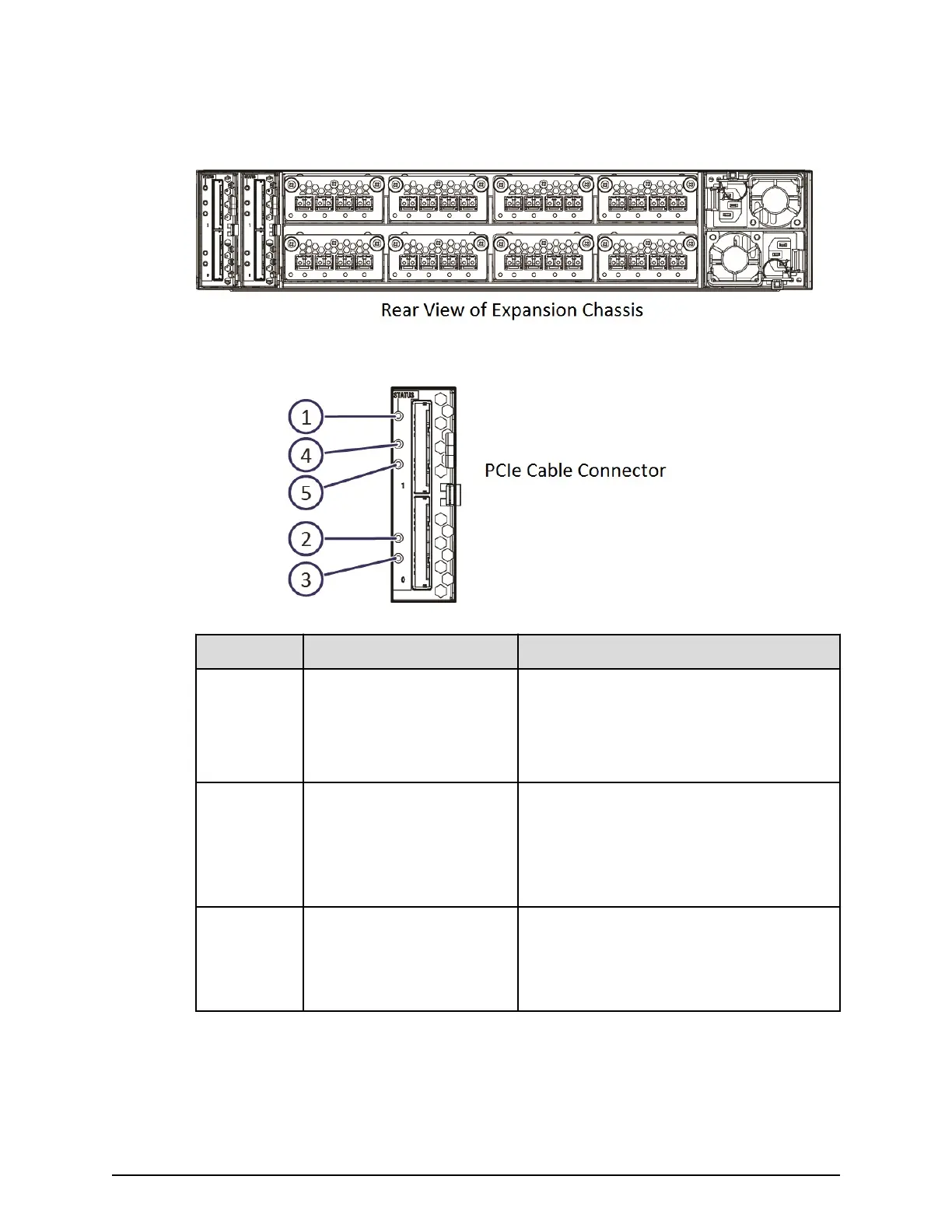

PCIe cable connector
Number Item Description
1 STATUS LED Green: PCIe cable connector is powered on.
Red: PCIe cable connector can be replaced
safely.
Off: PCIe cable connector is powered off.
2 Link Basic LED Green: Basic PCIe Gen-3.0 (8-Gbps) is
linked up normally.
Off: Basic PCIe is not linked up (PCIe cable
might not be connected). If a cable is
connected, it can be removed safely.
3 InAct Basic LED Amber: Basic PCIe status changed from link
up to link down and cables. Cables can be
removed safely.
Off: Basic PCIe is normal or not set.
PCIe cable connector
Chapter 4: Host port expansion chassis
VSP N400, N600 Hardware Reference Guide 53
