Hitachi VSP N400 - FMD Rear Panel

Number Item Description
Amber:
■
Indicates the location of
the chassis.
■
Can be turned on or
turned off by the
maintenance utility.
4 Flash module drives Twelve flash module drives.
Slots are organized the
following way:
9, 10, 11
6, 7, 8
3, 4, 5
0, 1, 2

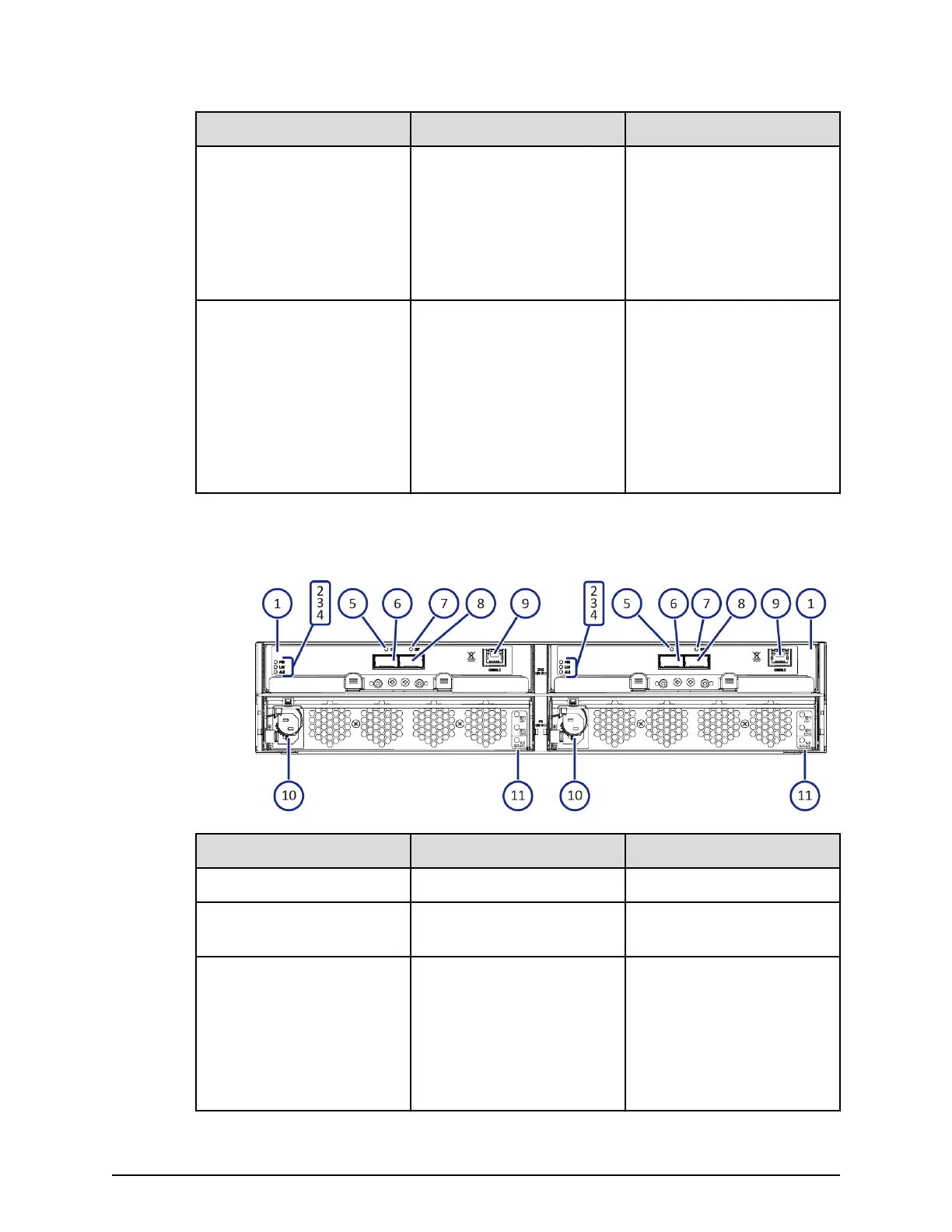

FMD rear panel
Number Item Description
1 ENC N/A
2 POWER LED Green: ENC is in the power-
on state.
3 Locate LED Amber:
■
Indicates the location of
the chassis.
■
Can be turned on or
turned off by the
maintenance utility.
FMD rear panel
Chapter 3: Drive trays
VSP N400, N600 Hardware Reference Guide 45
