CDA3-35 User’s Guide
Table 1: Hardware Connections
Reset Use this button to reboot or reset your CDA3-35.
Press the button and hold it for less than five seconds
to reboot the CDA3-35. The CDA3-35 restarts, using
your existing settings.
Press the button and hold it for more than five
seconds to delete all user-configured settings and
restart the CDA3-35 using its factory default settings.
See Resetting the CDA3-35 on page 18 for more
information on resetting the CDA3-35.
NOTE: Unless you previously backed-up the CDA3-35’s
configuration settings prior to resetting the
CDA3-35, the settings cannot be recovered.
LAN Use this port to connect your computer or network
device, using Category 5 or 6 Ethernet cable with RJ45
connectors.
CABLE Use this to connect to the Internet via an F-type RF
cable.
POWER Use this to connect to the 12v/1.5A power adapter that
came with your CDA3-35.
NEVER use another power adapter with your
CDA3-35. Doing so could harm your CDA3-35.

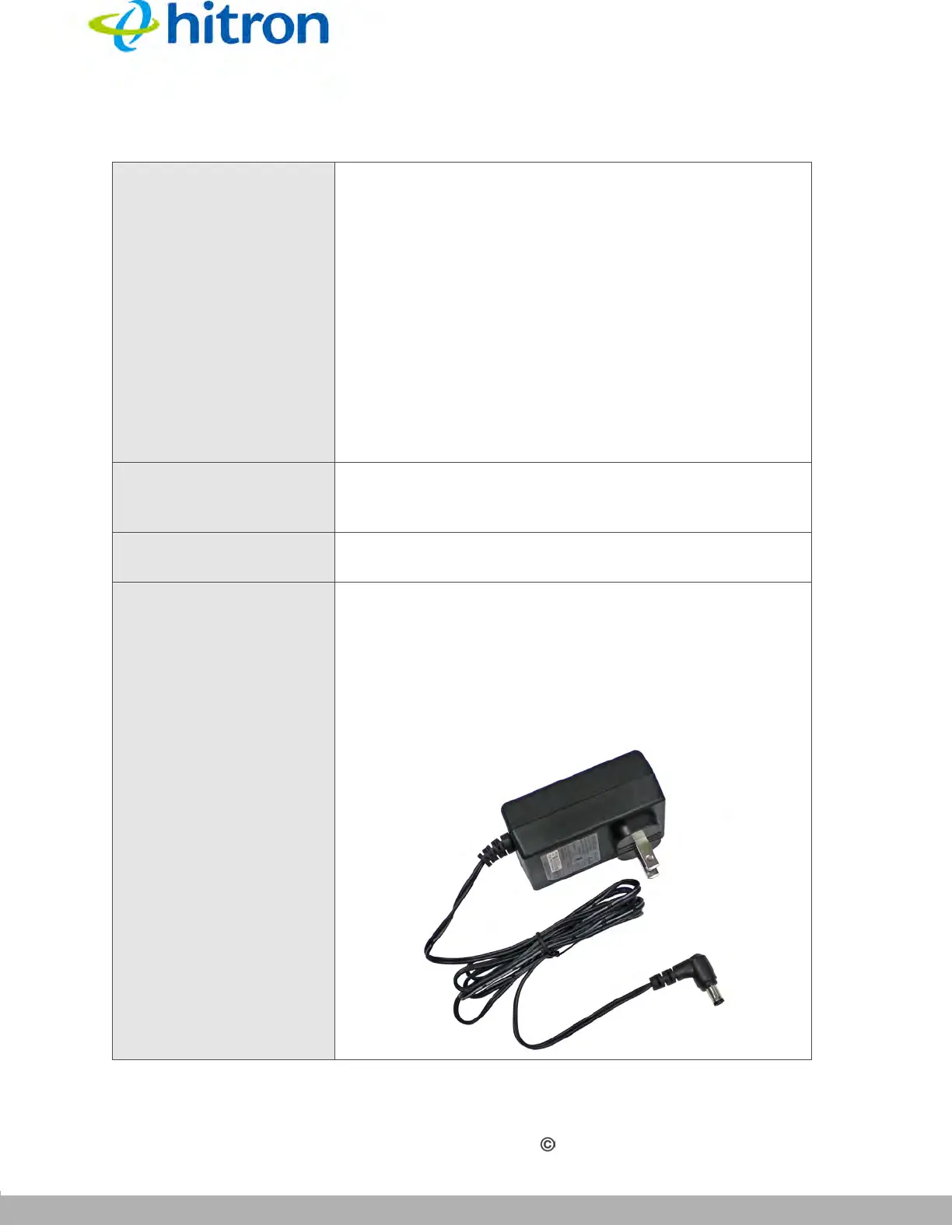

Figure 3: Power Adapter
