POWER
Off
The
CDA3-35 is not receiving power.
Green, steady
The
CDA3-35 is receiving power.
DS
Green, blinking
The CDA3-35 is searching for a downstream
frequency on the CABLE connection.
Green, steady The CDA3-35 has successfully located and locked
onto a downstream frequency on the CABLE
connection.
Blue, steady The CDA3-35 is engaged in channel bonding on the
downstream connection.
Off There is no downstream activity on the CABLE
connection.
US
Green, blinking
The CDA3-35 is searching for an upstream
frequency on the CABLE connection.
Green, steady The CDA3-35 has successfully located and locked
onto an upstream frequency on the CABLE
connection.
Blue, steady The CDA3-35 is engaged in channel bonding on the
upstream connection.
Off There is no upstream activity on the CABLE
connection.
Status Green, blinking The CDA3-35’s cable modem is registering with the
service provider’s CMTS.
Green,
steady The CDA3-35’s cable modem has successfully
registered with the service provider and is ready for
data transfer.
LAN
Off
No device is connected to one of the LAN ports.
Green, blinking A device is connected to the LAN port via a Fast
Ethernet (100Mbps) link, and is transmitting or
receiving data.
Green, steady
A device is connected to the LAN port via a Fast
Ethernet (100Mbps) link, but is not transmitting or
receiving data.
Blue, blinking A device is connected to the LAN port via a Gigabit
Ethernet (1000Mbps) link, and is transmitting or
receiving data.
Blue, steady A device is connected to the LAN port via a Gigabit
Ethernet (1000Mbps) link, but is not transmitting or
receiving data.

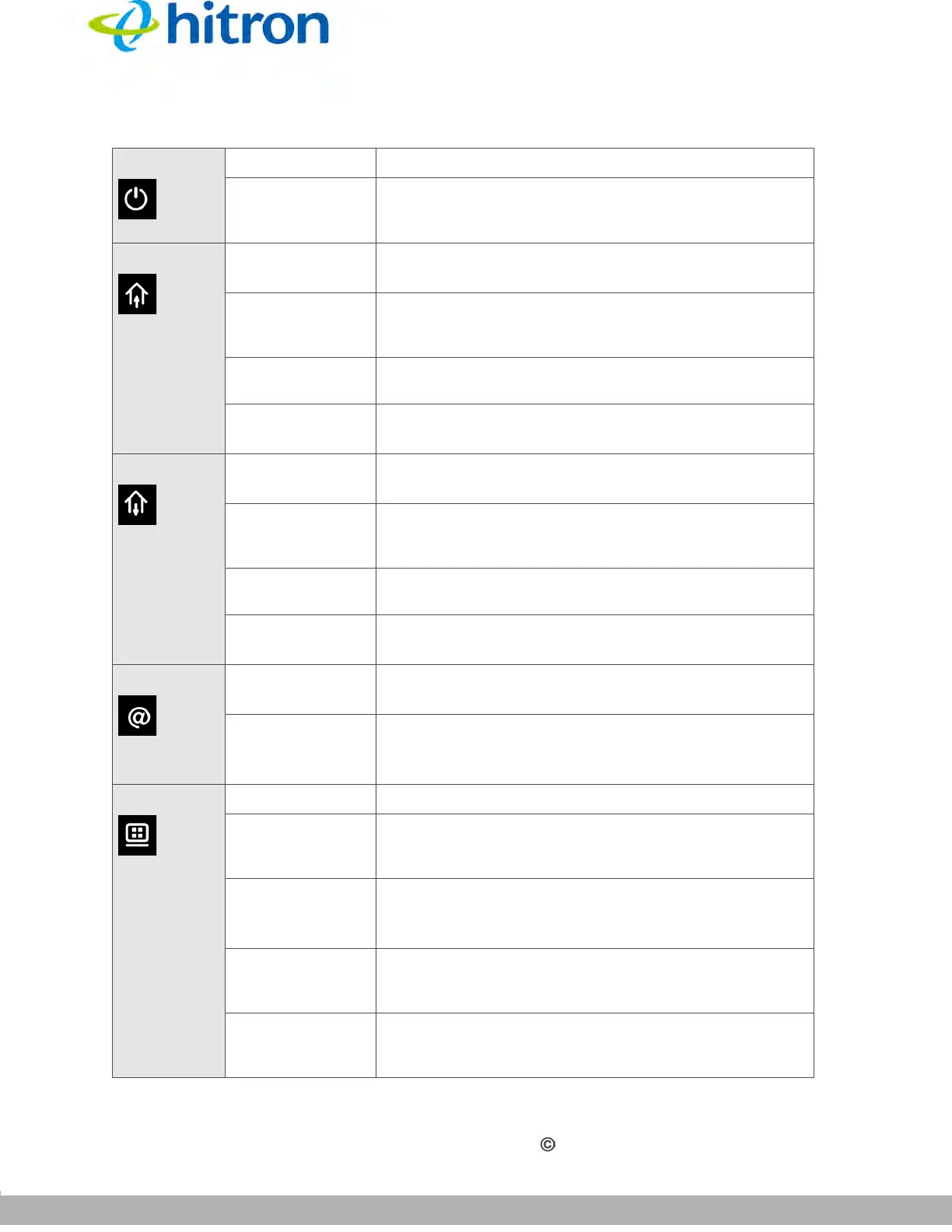

Table 2: LEDs
