Base Station Internal Controls and Indicators
1. COMMUNICATOR
®
ID display
2. Status light
3. Reset button
4. Ant2 antenna connector
5. Ant1 antenna connector
6. Start registration button
7. Clear all registration button
8. Indicator lights DS7 Record
(See Figure 2) DS6 Vehicle Present
DS5 “B” Talk
DS4 “A” Talk
DS10 +5V Xcvr
DS9 +5V
DS2 +12V
DS3 +22V
9. Line-in level adjustment
10. Transmit audio level adjustment
11. Transmit message level adjustment
12. Record mode button
13. VAA attenuation level adjustment
14. Line-out level adjustment
15. Inbound audio level adjustment
6 7 8
9 10 11 12 13 14 15
1
2
3
4
5

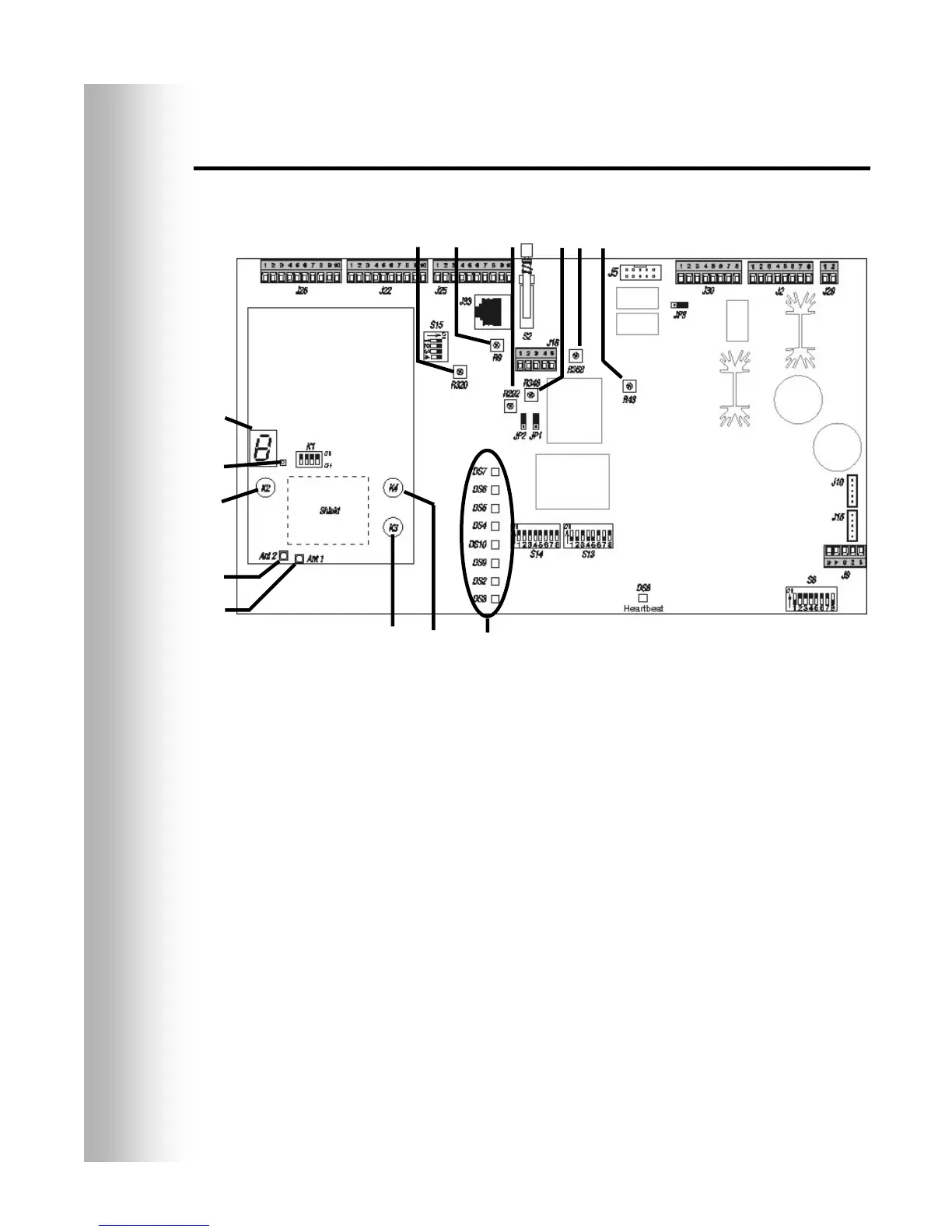

Figure 11. Base station internal features
