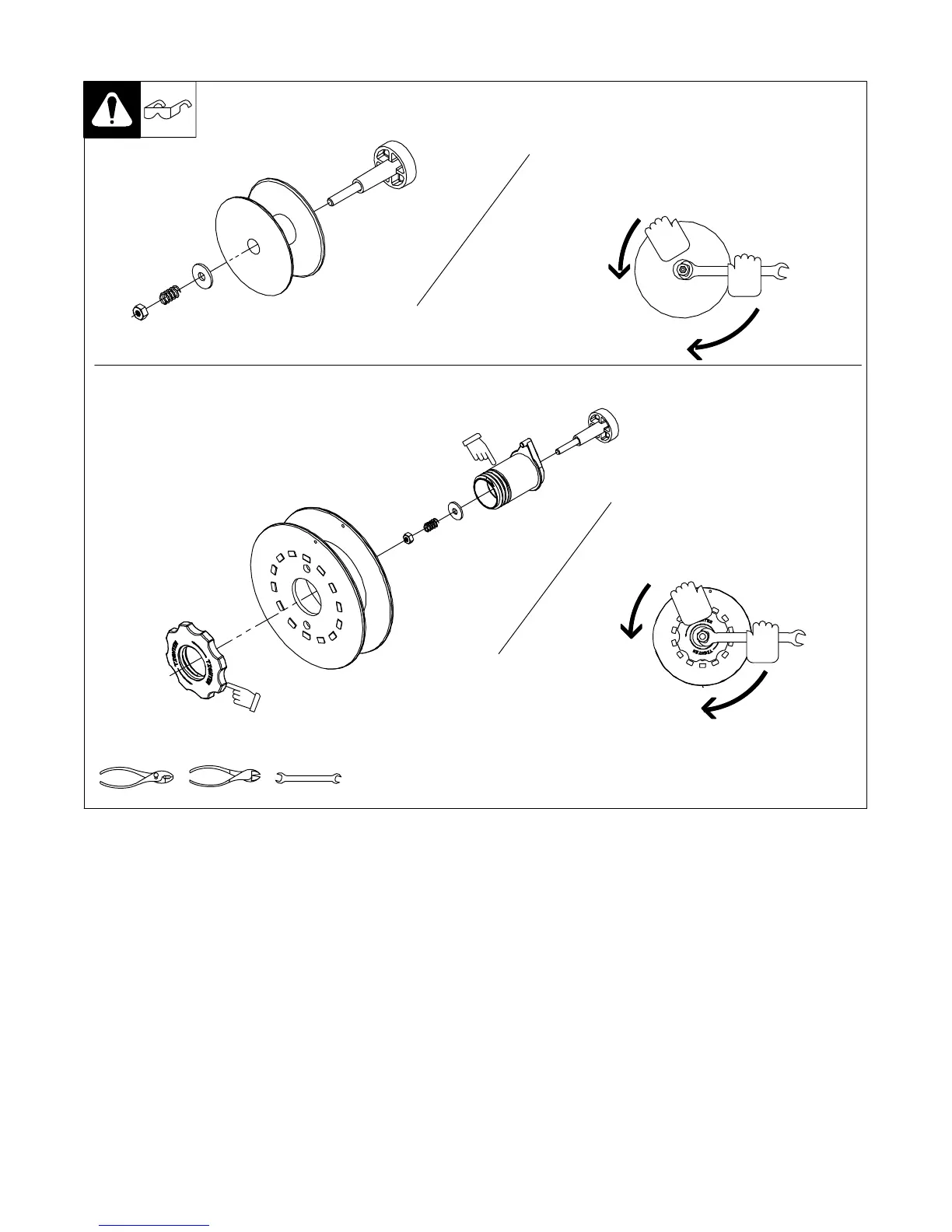

4-4. Installing Wire Spool And Adjusting Hub Tension
When a slight force is needed
to turn spool, tension is set.
1/2 in
Tools Needed:
Ref. 802 971-C / 803 012 / 803 013 -B
Installing 8 in (203 mm) Wire Spool
Installing 4 in (102 mm) Wire Spool
When a slight force is needed
to turn spool, tension is set.
Retaining ring used
with 8 in (203 mm)
spool only.
Adapter used with
8 in (203 mm)
spool only.
. Only applies to units equipped with
optional hub kit.
. Overtightening hub tension may
cause wire feed problems.
