SECTION 8 − WIRE WELDING GUIDELINES

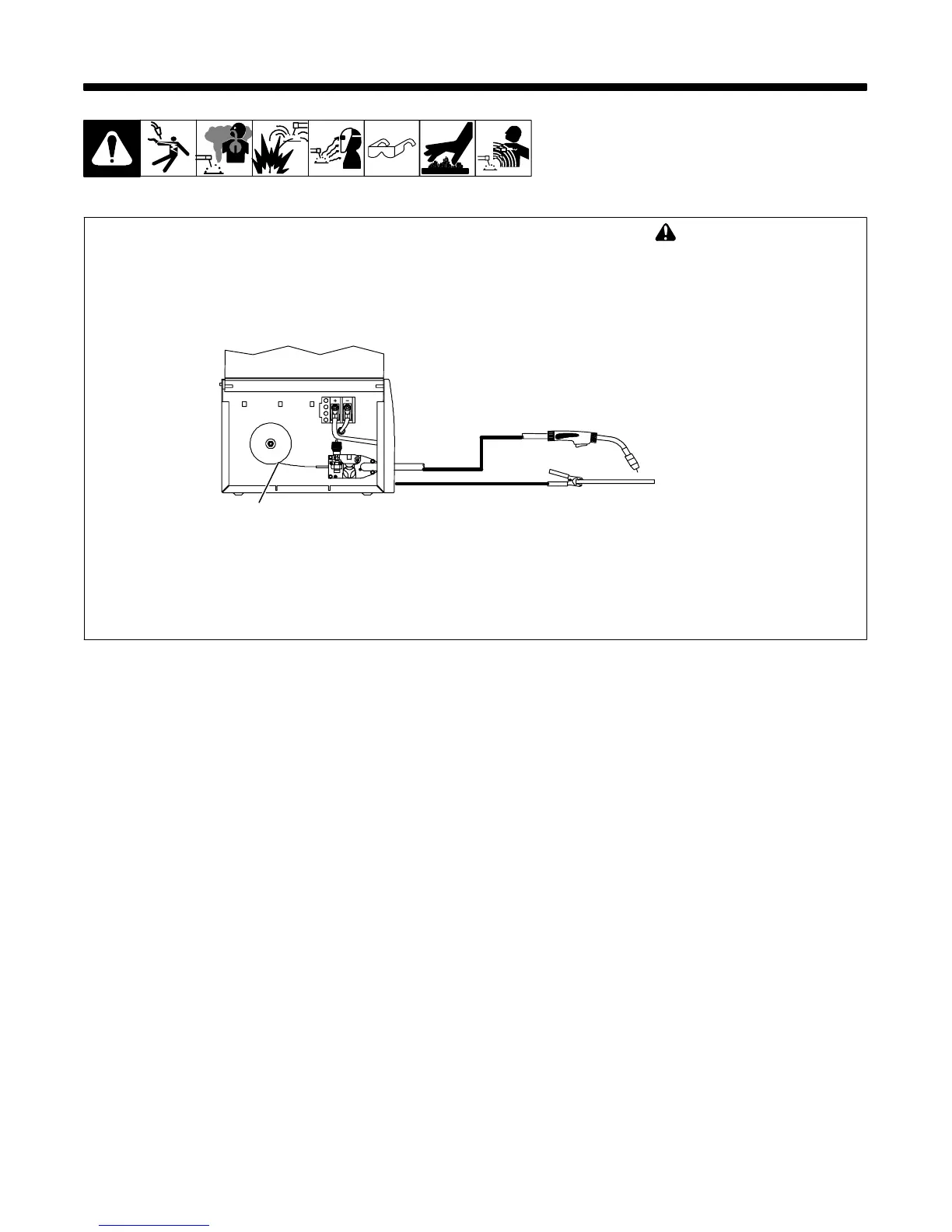

8-1. Typical FCAW Process Connections
! Weld current can damage
electronic parts in vehicles.
Disconnect both battery
cables before welding on a
vehicle. Place work clamp as
close to the weld as possible.
Wire Feeder/
Power Source
Workpiece
Gun
Work Clamp
fcaw 1/2003 / Ref. 803 444-A
Self-Shielding Flux
Core Wire
