OM-923 Page 15

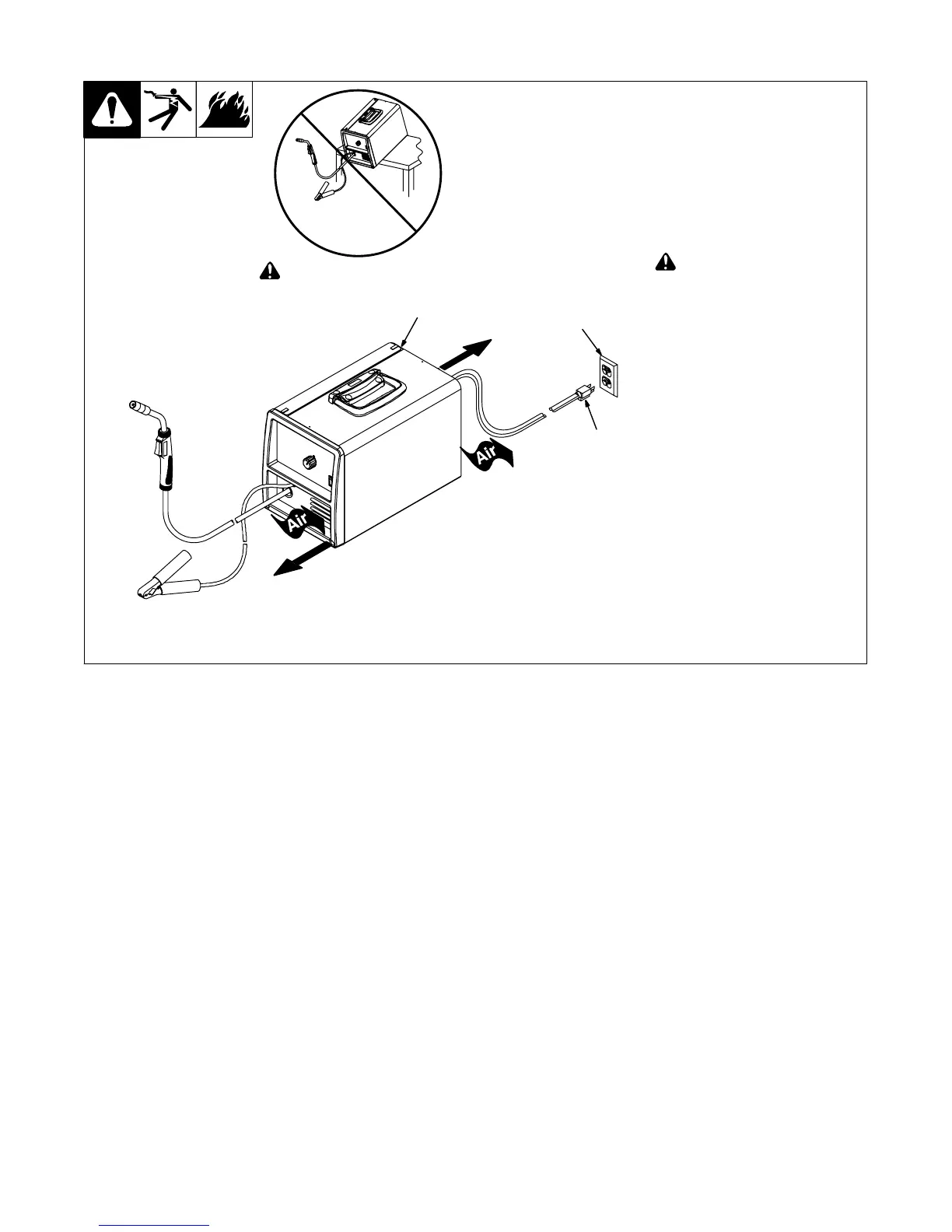

4-5. Selecting A Location And Connecting Input Power For 115 VAC Model
1 Rating Label
2 Grounded Receptacle
A 115 volt, 20 ampere individual
branch circuit protected by time-de-
lay fuses or circuit breaker is re-
quired.
3 Plug From Unit
Select extension cord of 12 AWG
for up to 50 ft (15 m) or 10 AWG for
50 up to 100 ft (30 m).
! Special installation may be
required where gasoline or
volatile liquids are present −
see NEC Article 511 or CEC
Section 20.
804 122-C
! Do not move or operate unit
where it could tip.
18 in
(460 mm)
18 in
(460 mm)
1
2
3
