5. Exterior structure
44
The following applies for the roof load
• Use only standardised and licensed ladders that can be positi-
oned rmly to climb onto the roof.
• The roof has not been made for concentrated loads. Place
a large-scale cover over the area you wish to step on before
standing on the roof. Materials with a soft and smooth surface
(such as a large piece of styrofoam) are suitable for this purpose.
• Do not step too close to the roof bonnets or the air conditioning
systems on the roof (stay at least 30 cm away).
• Do not step on the rounded areas at the front and rear ends of
the caravan.
5.4 Roof
Be careful when standing on the roof. There is a great
danger that you will slip if the roof is wet or icy.
The maximum total load for the roof rail is 80 kg!

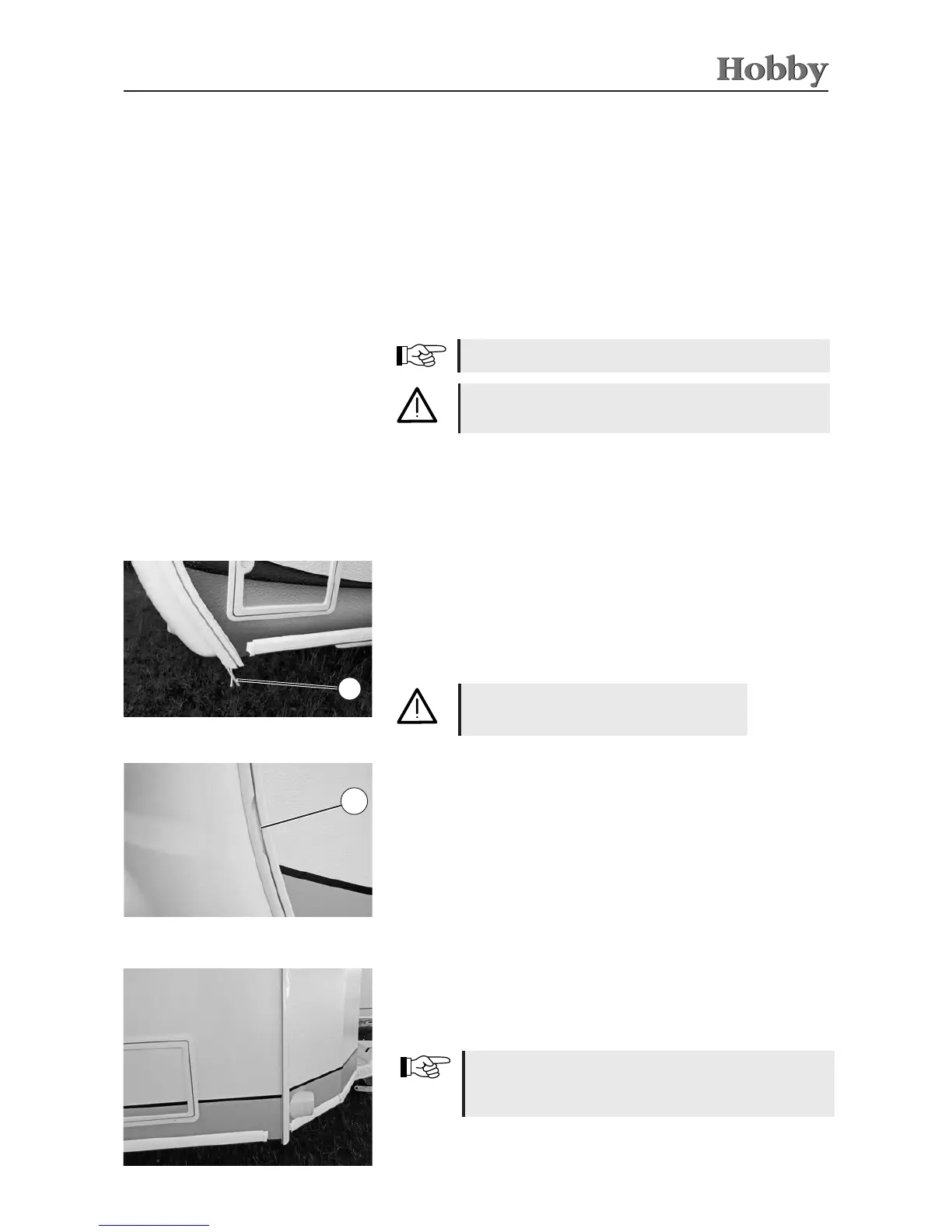

5.5 Guide rail for outer tent and skirting
The keder of the outer tent slides into the guide rail for the outer tent
on both sides of the caravan, both at the front and rear ends.
The rail channel of the outer tent rail is wider
k
at the rear end of
the caravan (above the rear lights). This makes it easier to insert
the outer tent.
2
The seal
j
under the guide rail for the outer tent has deliberately
been left hanging somewhat behind the guide rail for the outer tent
at the front and rear ends to ensure that rain and moisture will drip
o completely.
ONTOUR/Landhaus model
ONTOUR/De Luxe (Edition)/Excellent/Prestige/Premium
Seal on the outer tent guide rail
Outer tent guide rail with extension
The projecting seal must never be
removed.
1
In the Landhaus model, the keder is inserted from the bottom at the
ends of the outer tent guide rail.
Outer tent guide rail with insertion for keder
from below
Landhaus model
Further information on the measurements of the outer
tent perimeter can be found in Chapter 14 Technical
Data.
