89
7. Installation of electrical devices
1 2 3 4
5
Assignment of fuses
Electric circuit (7,5A):
children‘sbedsidelights,clothescupboardlight(onlyWLU),outer
tent light, wall lights, ceiling light, bedside lights
Electric circuit (15 A):
children‘sbedsidelights
Electric circuit (7,5 A):
clothescupboardlight,leftbedsidelight(onlyWLU),ambience2,
kitchen,shower
Electric circuit (7,5 A):
fan,washstand,ambience3,ambience1
Electric circuit (7,5 A):
watersupply,PortaPotti,refrigeratorillumination

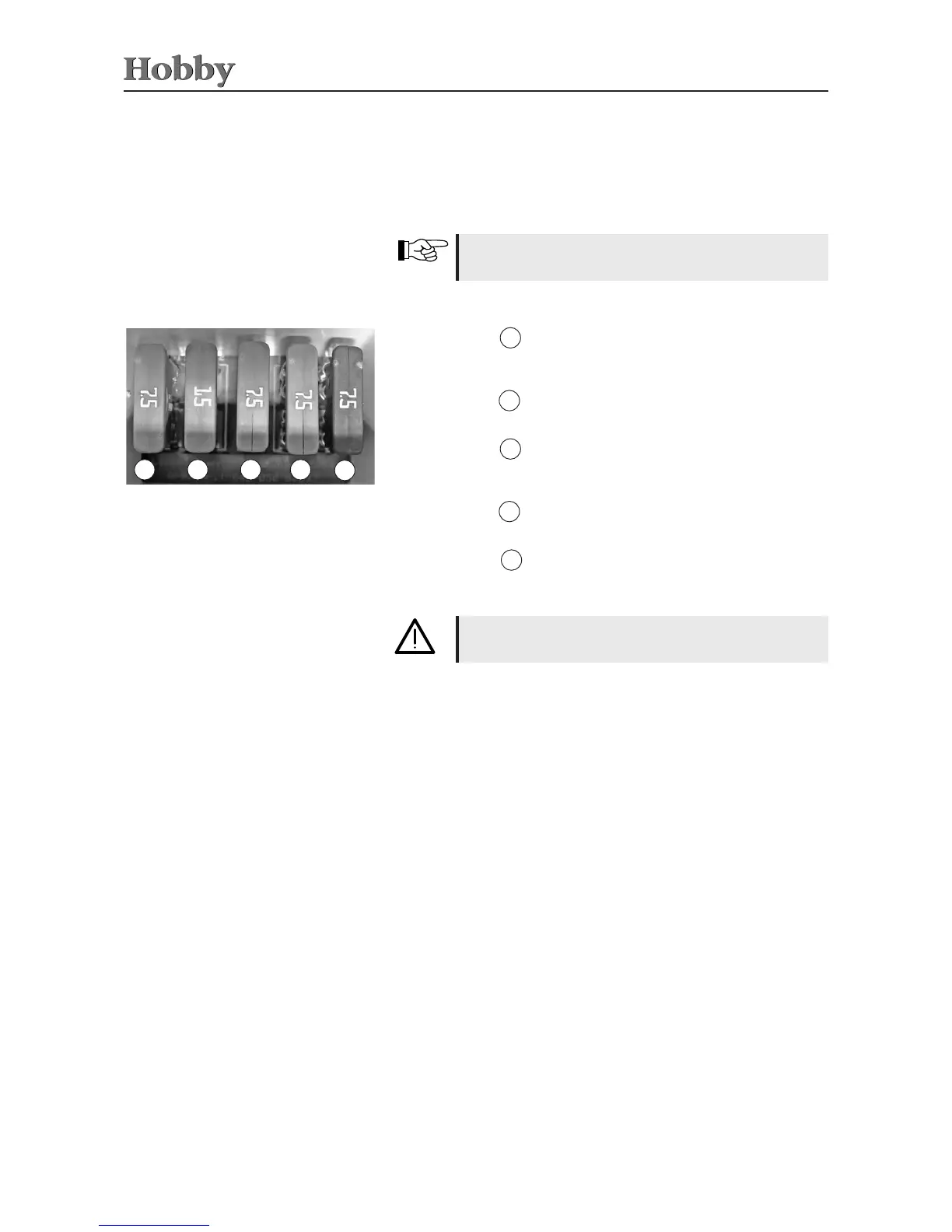

Assignment of fuses
The fuses for the individual internal electric circuits are located in
thelightingcontrolmodule.Theyareassignedasfollows(fromleft
toright):
Insomemodels,theremaybeslightdeviationsin
thisassignment.
Onlyreplacedefectfusesifyouknowwhatcaused
thefusetoblowandhavexedthis.
1
2
3
4
5
