CTC-CEN Service Manual 07-13 Rev.E
38

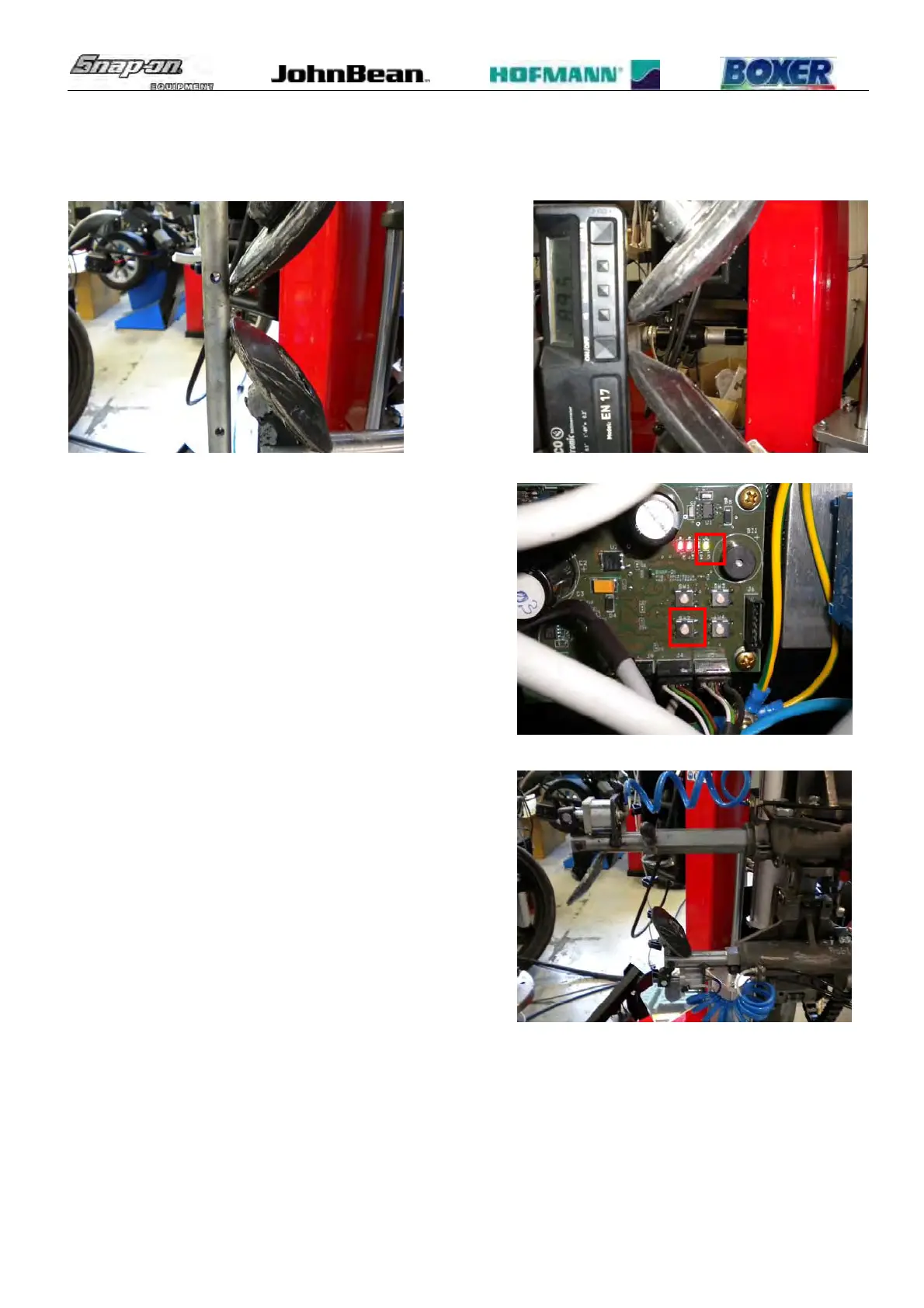

6. Move the upper bead breaker (master) all inward. Place the MH rod in front of the disks to make sure about the
correct alignment of the disks. If necessary move the lower arm to equalize the disks alignment. If the machine is
without MH arm use the electronic inclinometer to make the alignment.
7. Acquire the position pressing for a while the button SW2.
Now the LED 4 will turn off while the 5 one will start blinking.
8. Move the upper bead breaker arm (master) all way out.
