CTC-CEN Service Manual 07-13 Rev.E
37
Procedure:
1 Remove the cover from the electric box.
2 Turn on the machine:
WARNING! MAHINE UNDER TENSION. RISK OF ELECTRIC
SHOCK
3. Make sure that the bead breaker arm are unlocked

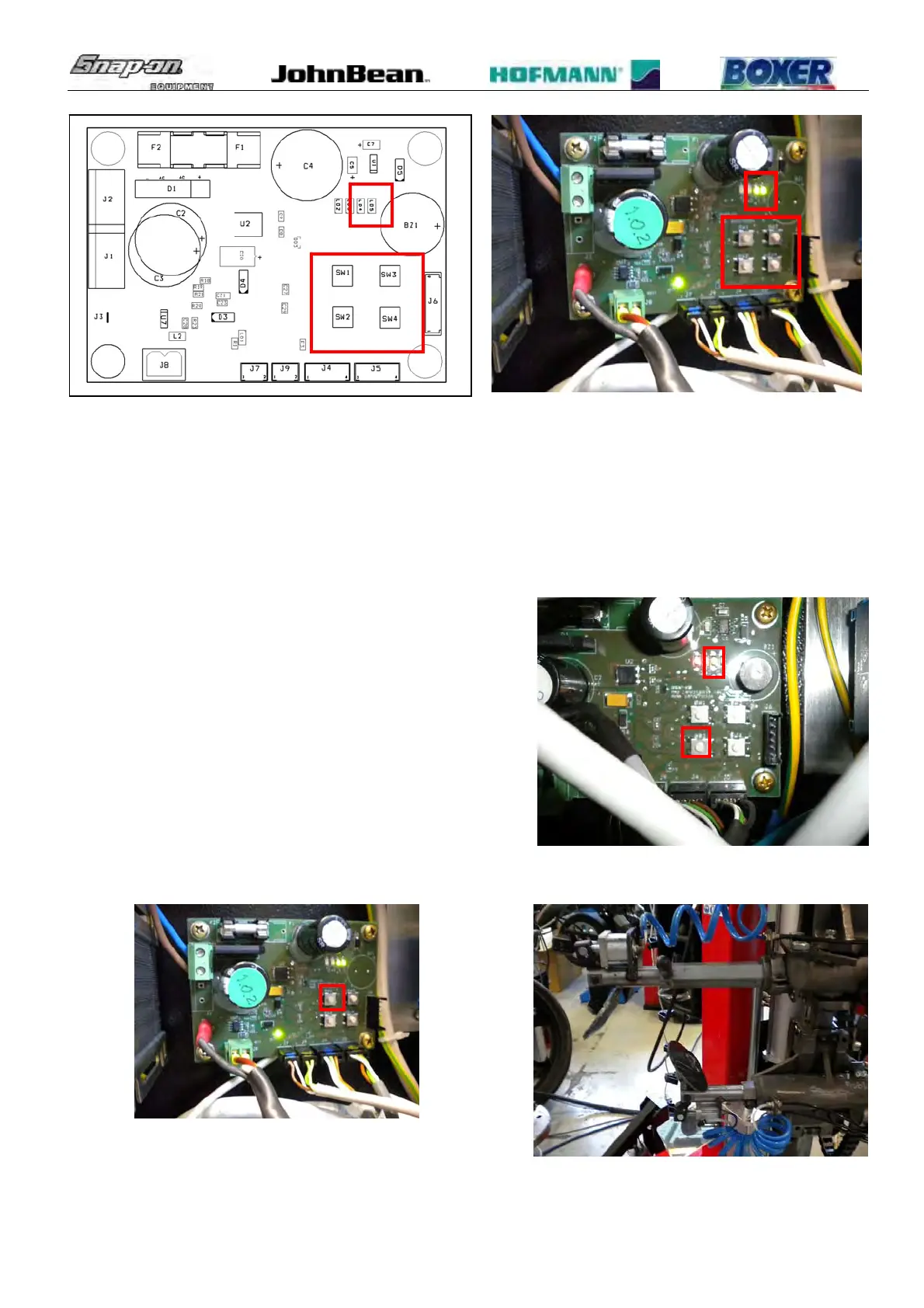

4. Press the button SW2 ‘till the green LED 4 will start blinking.
The blinking LEDs show that the machine is in calibration status.
5. Press and hold the button SW1 to move the lower bead breaker arm (slave) all inward.
To Next Page
