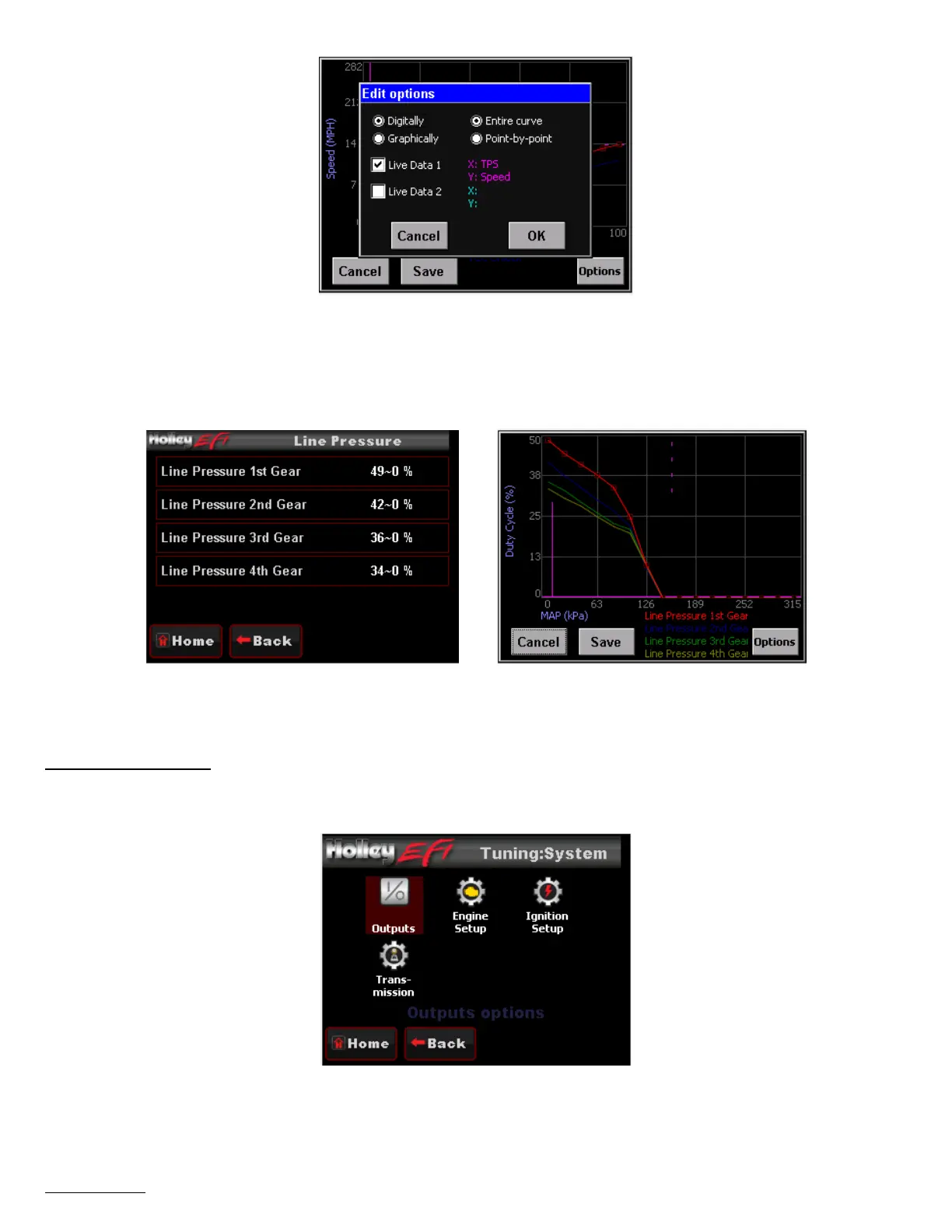

Figure 87
30.5.5 Line Pressure
Tune the line pressure vs. TPS or MAP for each gear. A lower duty cycle (moving towards 0%) increases line pressure with 0% providing
maximum line pressure applied. Values above 40-50% typically result in a line pressure too low for any throttle position, which may result
in transmission damage.
Figure 88 Figure 89
31.0 SYSTEM SETUP
31.1 System Tuning
From the HOME MENU, select TUNING, and SYSTEM. There are four areas you can modify; OUTPUTS, ENGINE SETUP, IGNITION
SETUP, and TRANSMISSION.
Figure 90
