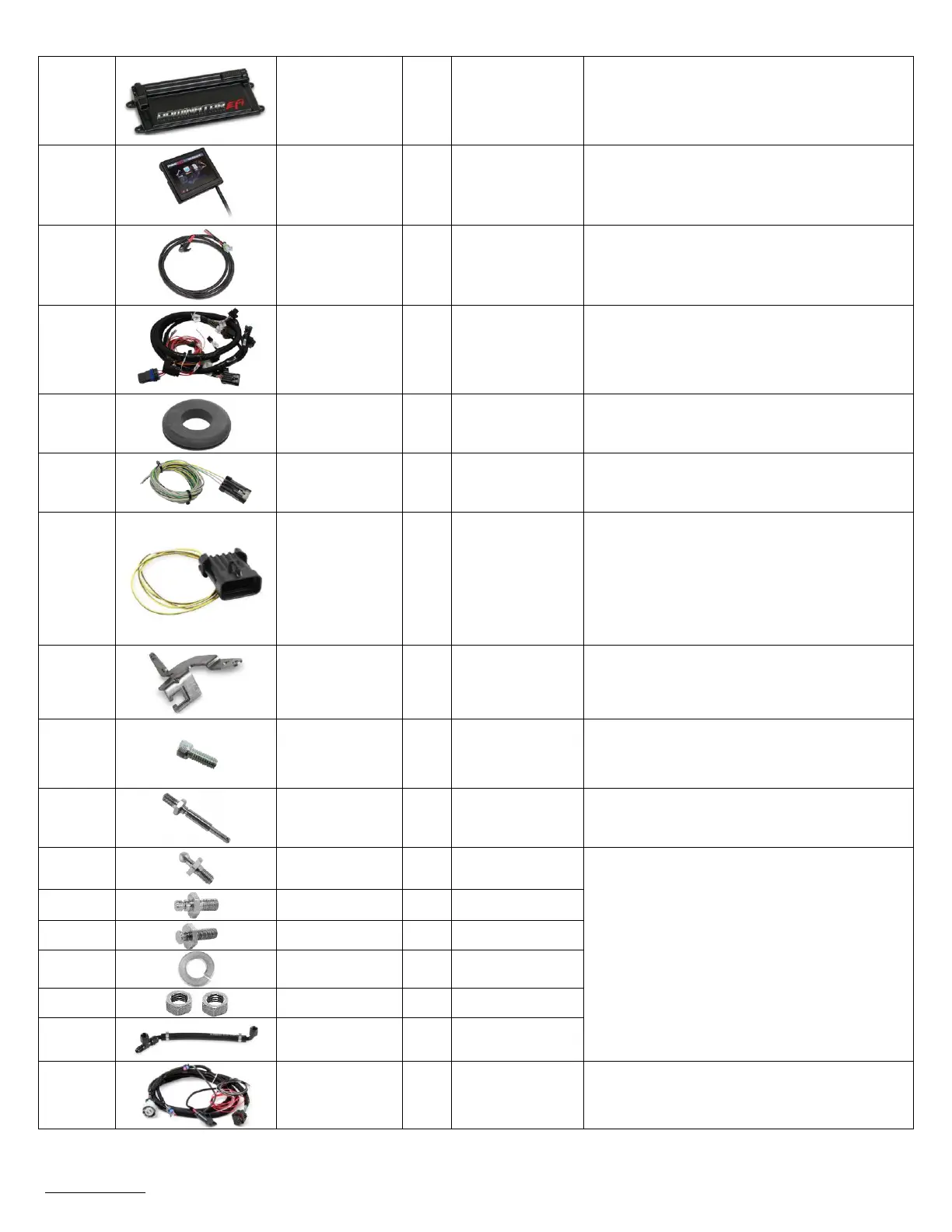

TERMINATOR™
EFI Electronic
Control Unit (ECU)
1
554-114
 ECU can be mounted inside passenger
compartment or in engine compartment if
precautions in the installation section are followed
 Do NOT remove plastic shoulders on mounting
ears of ECU
11
3.5” Touch Screen
Controller
1
553-108
 Includes harness to connect directly to CAN
connector
12
Main Power
Harness
1
558-308
 Must be connected DIRECTLY to the battery, no
exceptions
 Do not connect to ECU until ALL wiring and
installation is performed
13
TERMINATOR™
EFI Main Wiring
Harness
1
558-414
 Connectors are labeled to simplify installation
 If ECU is mounted in passenger compartment, be
sure to use grommet (included) where harness
passes through firewall
14
Grommet
1
N/A
 Used to route Main Harness through firewall
 Requires 2” hole to be drilled using a hole saw
15
Output Harness
1
558-420
 Mates to Input/Output connector on Main Wiring
Harness and can be used for A/C Shutdown,
Electric Fan #1 Output, and/or Electric Fan #2
Output.
16
Ignition Adapter
1
558-302
 This is only used on applications using a CD box
such as an MSD 6AL, when timing control is not
desired
 This plugs in to the connector labeled “IGNITION”
and the loose yellow/black wire connects to the
“Tach Out” connection on the ignition box
 Never connect this wire directly to the ignition coil!
17
Throttle Bracket,
Throttle Only
1
20-151
18
1/4-20 x 5/8 Socket
Head Cap Screw
1
N/A
Used to secure throttle cable bracket to throttle
body with a lock washer (Item 24)
19
Throttle and Cruise
Control Stud
1
20-36
 Used for various throttle and/or transmission
combinations

20
Throttle Lever Ball
1
20-2
 Used for various throttle and/or transmission
combinations
21
Throttle Lever Stud
1
20-37
22
Transmission
Kickdown Stud
1
20-40
23
Lock Washers
3
N/A
24
1/4-28 Nuts
2
N/A
25
Stealth Terminator
Fuel Line
Assembly
1
534-247
26
Transmission
Harness
1
558-405
