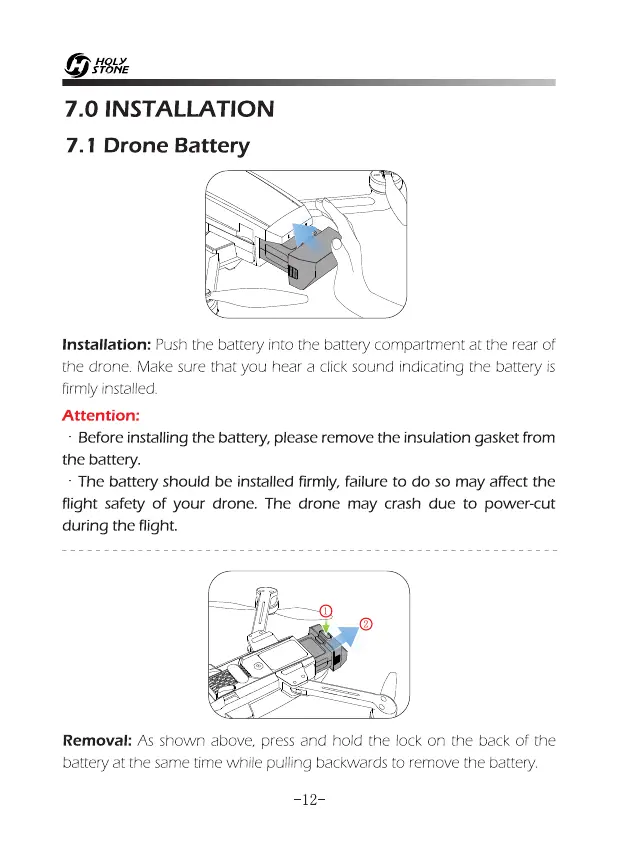

7.0 INSTALLATION
7.1 Drone Battery
Installation:
Push the battery into the battery compartment at the rear of
the drone. Make sure that you hear a click sound indicating the battery is
firmly installed.
Attention:
•
Before installing the battery, please remove the insulation gasket from
the battery.
•
The battery should be installed firmly, failure to do so may affect the
flight safety of your drone. The drone may crash due to power-cut
during the flight.
Removal:
As shown above, press and hold the lock on the back of the
battery at the same time while pulling backwards to remove the battery.
-12-
