OPERATI ON
HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at
Seit e 3 5
METALLDREHMASCHINE / METAL TURNING LATHE ED 750FD
1 4 .2 .3 Setting the spindle speed
The speed (high / low) is selected by the speed adjustment ( 16 ).
The set speed is displayed on the speed display (
2 0 ).
1 4 .2 .4 Clam p Tool
The tool must be clamped.
During the rotating operation of the tool has a tendency to bend away from the workpiece.
Therefore, the tool overhang on the tool holder 3
/ 8 " (~ 9 mm) should not exceed.
The cut angle is correct if the cutting edge is in line with the central axis of the workpiece. The
correct height of the tool can be achieved by comparing the tool tip with the live center in the
tailstock tip.
If necessary, the tool must be adjusted by using the same documents. ( Available from Holzmann
under item number PU7TLG95 and PU7TLG150 )

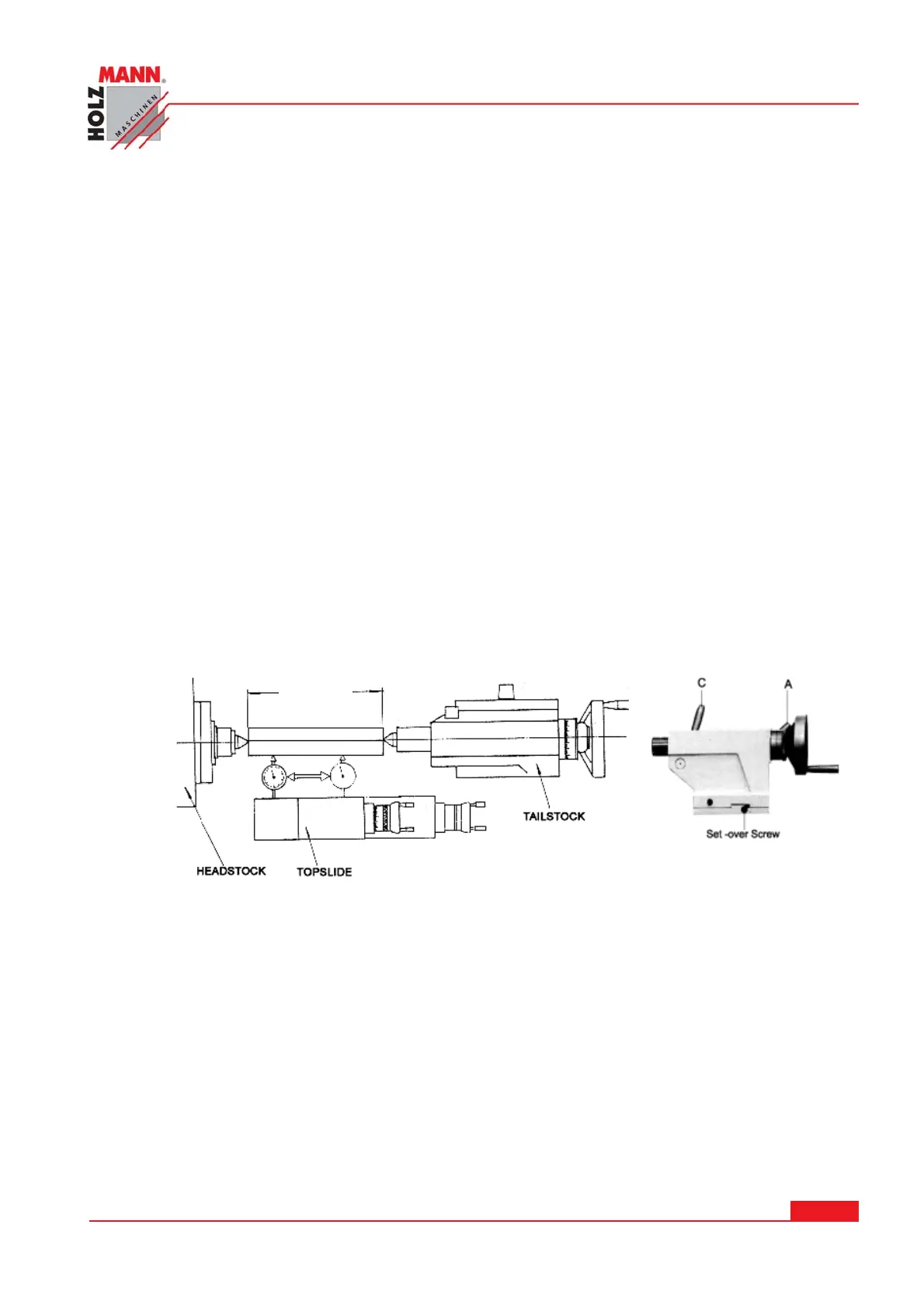

1 4 .2 .5 Leveling tailstock to headstock
Tighten properly between spindle and tailstock up a 3 0 5 mm long solid piece of pipe.
Cock now in the tool holder has a digital Display one.
200mm
