OPERATI ON
HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at
Seit e 3 9
METALLDREHMASCHINE / METAL TURNING LATHE ED 750FD

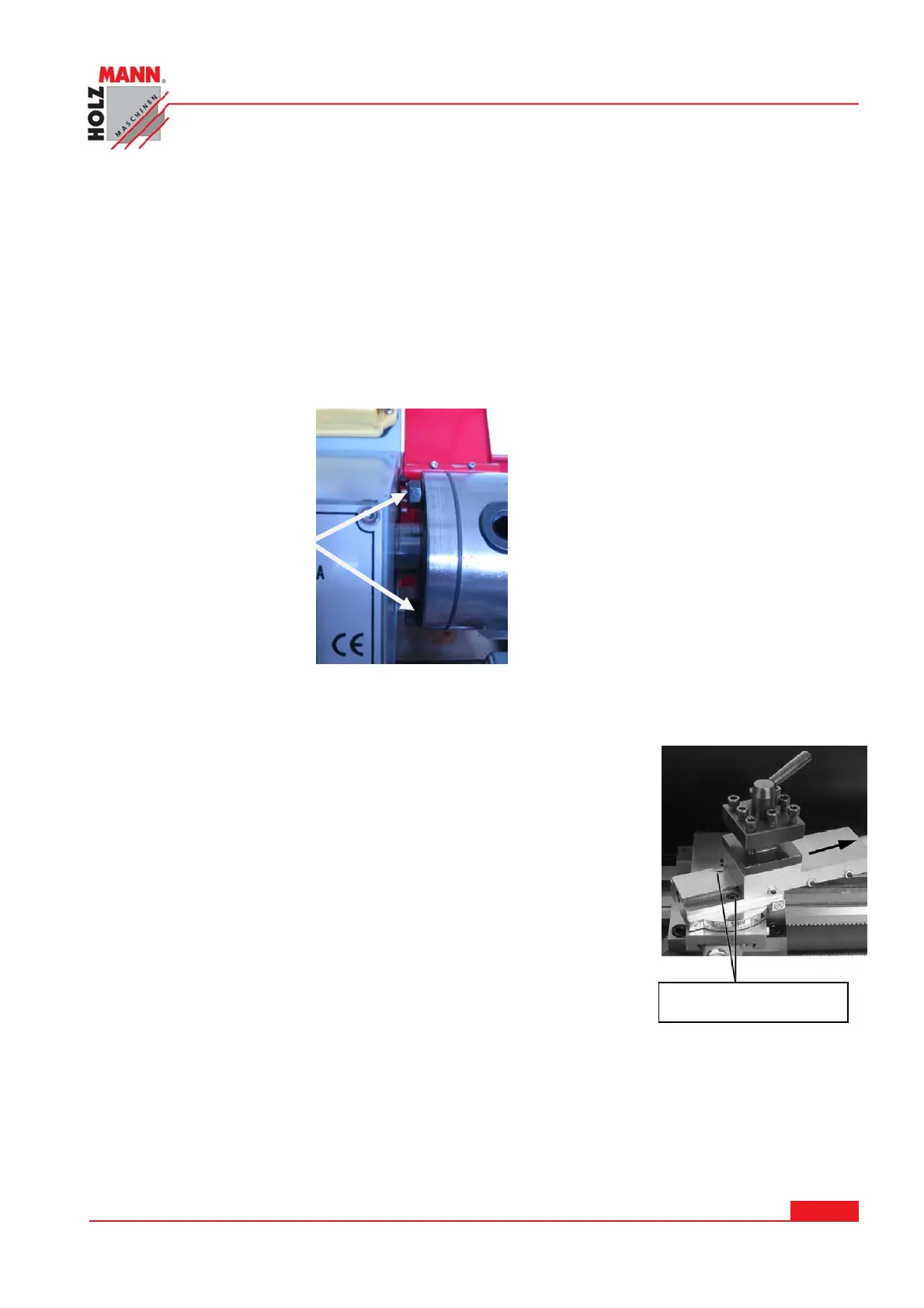

1 4 .2 .1 3 Lathe chuck / faceplate assem bly
If you mount the rotary chuck or chucks want to dismantle or, first make sure that the holding
cams are fixed.
Loosen the three screws (A) and lift off the lathe chuck.
Now mount chuck or faceplate on the spindle head and tighten the bolts in sequence to.
Do not replace food or face plates between different lathes, without checking the correct ad-
justment cams.
1 4 .2 .1 4 Top slide
For angular adjustment of the upper slide, loosen the screws, turn the
carriage to the desired position and fix the carriage again with the
screws.
A (3x)
Adjusting screws (1)
