OPERATI ON
HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at
Seit e 3 8
METALLDREHMASCHINE / METAL TURNING LATHE ED 750FD

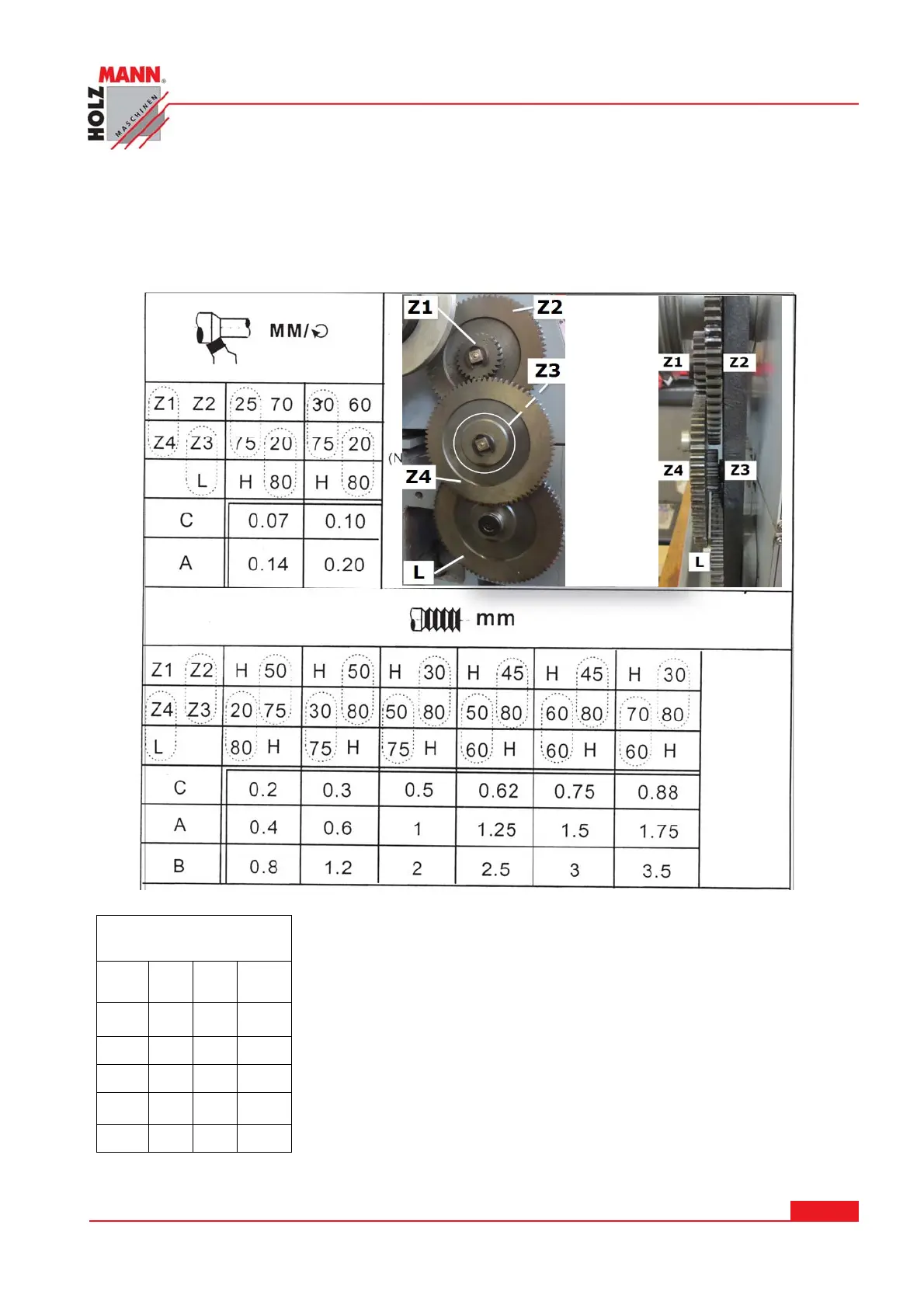

1 4 .2 .1 2 Set ting for feed and thread pitches
Use to select the longitudinal feed, as well as for setting of metric and English threads, the rele-
vant tables can be found on the machine left.
INFO:
the change gears are depicted as substituted the letters and numbers of the table after.
Thread pitch
1,5mm
gear Z2 engages with gear Z3/4
gear Z3/4 engages in gear L
"H" stands for white space (sleeve). Instead of a sleeve can al-
so a smaller gear to be used with any of the other gear is en-
gaged.
The switch (1 8 ) is provided with thread pitch 1,5mm here to
"A"
Z1 Z2 H 45
Z4 Z3 60 80
L 60 H
B
A
X
C
