STOLNÍ A ZRACOVACÍ PILA / COMPOUND TABLE/MITRE SAW TK 305
14.2.3 Mitre saw

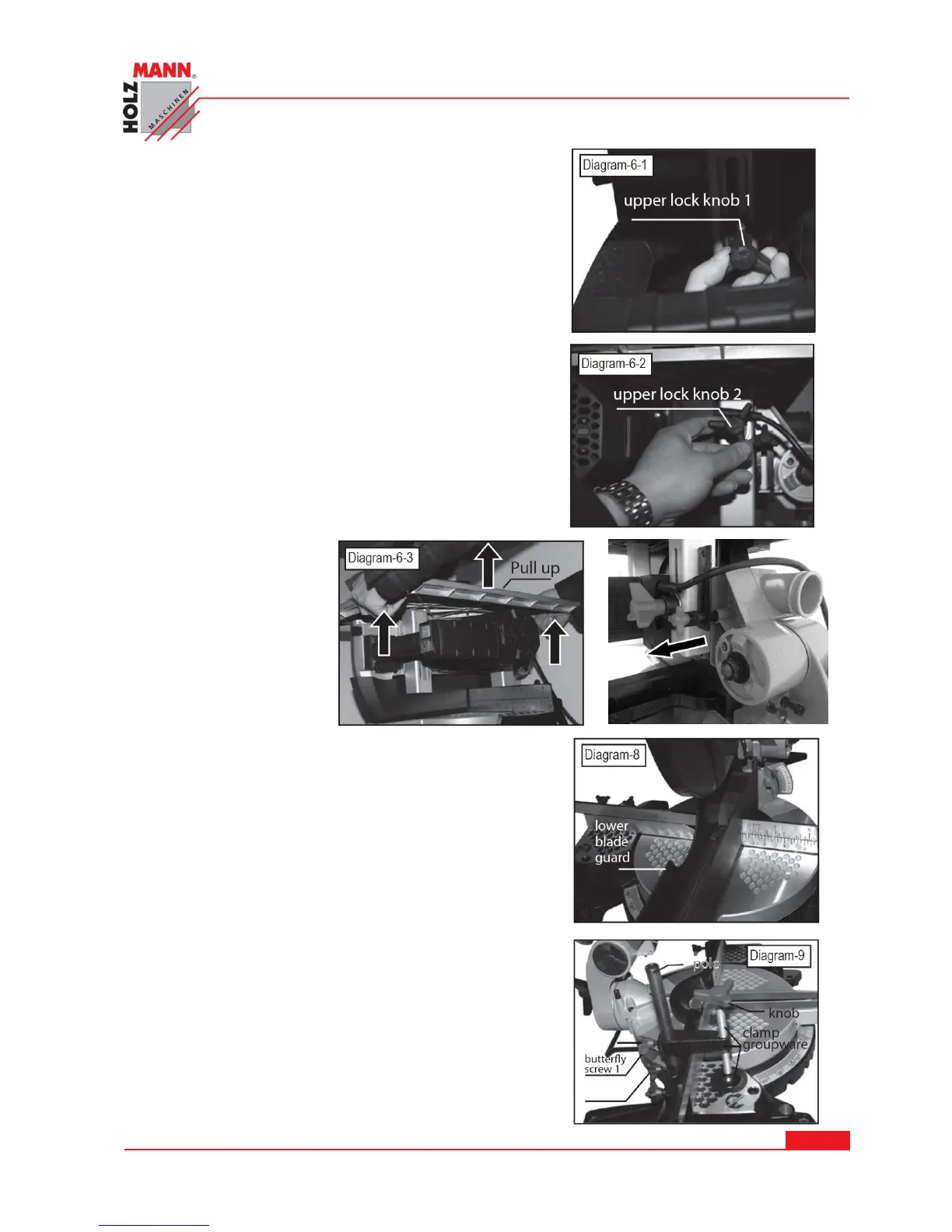

1. Loose the “upper lock knob 1” and “upper lock
knob 2”; then pull out the “mitre shaft lock”. The
mitre will to open and into open position.
2. Screw up the “upper lock knob 1” and “upper lock
knob 2”.
3. Pull up the work
table face, then
tighten “Upper lock
knob 1” and “Upper
lock knob2”.
Pull the safety bolt
to open the mitre
saw
4. Remove the “lower blade guard” when you want
use the machine to cut and it stayed at open
mode.
5. Install the clamp groupware
c) Hold the “clamp groupware” pole, insert it to
the hole in the “location plate” left side.
d) Screw up the “butterfly screw 1.
