HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at Strana 38
STOLNÍ A ZRACOVACÍ PILA / COMPOUND TABLE/MITRE SAW TK 305

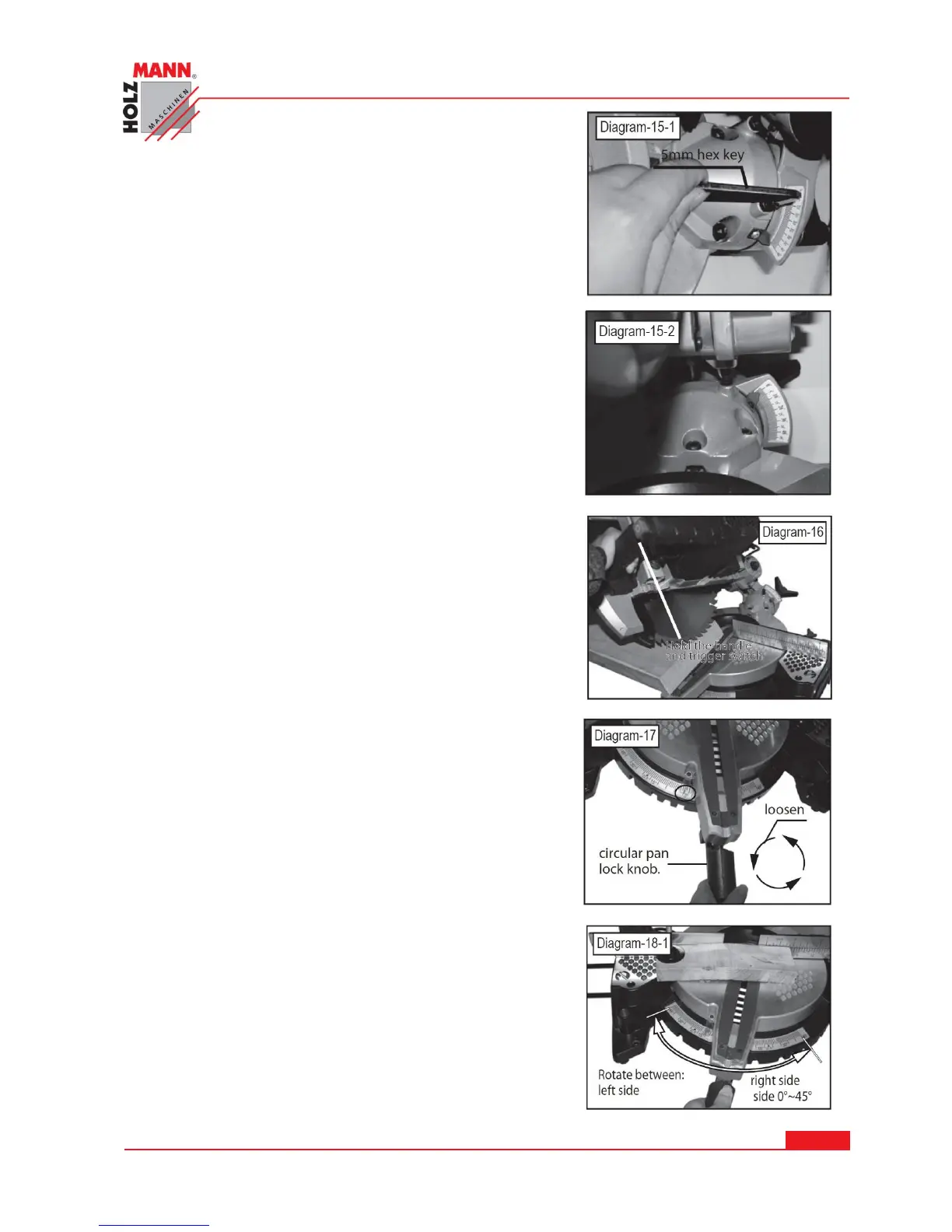

7. Use a 5mm hex key to check the “verticalis lock
screw”: Loose the lock screw and lock screw
adjusting screw in or out to achieve a 0° angle.
Retighten the lock nut.
Tighten the “mitre swing and control angle knob”.
Reset the cutting head. It will be used to bevel cutting now.
Cutting head designed and provide to bevel cutting angle
are between 0°~ 45° at left side.
14.2.5 Mitre saw angle cutting
1. Location the cutting object by “clamp groupware”;
2. According to your actual required of cutting angle to
select and locate it.
3. Hold the handle and trigger switch with your hand;
4. To the left side of the swing cutting head;
5. Press the “cutting head” until it to server. Release
and reset the cutting head.
14.2.6 Adjusting the base level angle
1. Hold the “circular pan lock knob” and loosen it. Then
trigger the spring pin always.
2. Put the board on the “circular pan” ;
3. Reference “location ruler” to select a cutting length,
then screw up the “clamp groupware” knob until it to
clamp the board
4. Rotate and locate the “circular pan” by “circular pan
lock knob.
5. According to your actual required of cutting angle to
select and locate it.
