TAKING CARE OF UNEXPECTED PROBLEMS
FUSES
Electric Starter Will Not
Operate
The 10 A, 15 A, and 30 A main fuses
protect the electric starter relay and
related circuits.
The 30 A main fuse protects the
ignition switch and related circuits. If
this fuse blows, the engine will not
start or run.
Battery Will Not Charge
A 150 A ACG fuse protects the
alternator circuit. If the ACG fuse
blows, the engine will not charge the
battery. Refer to ACG Fuse (p. 100).
Fuse Replacement
Disconnect the battery cable at the
battery negative (–) terminal before
replacing the f use.
Failure to do so may cause a short
circuit.
Main Fuse
1. Stop the engine.
2. Disconnect the battery.
3. Remove the engine cover (p. 63).

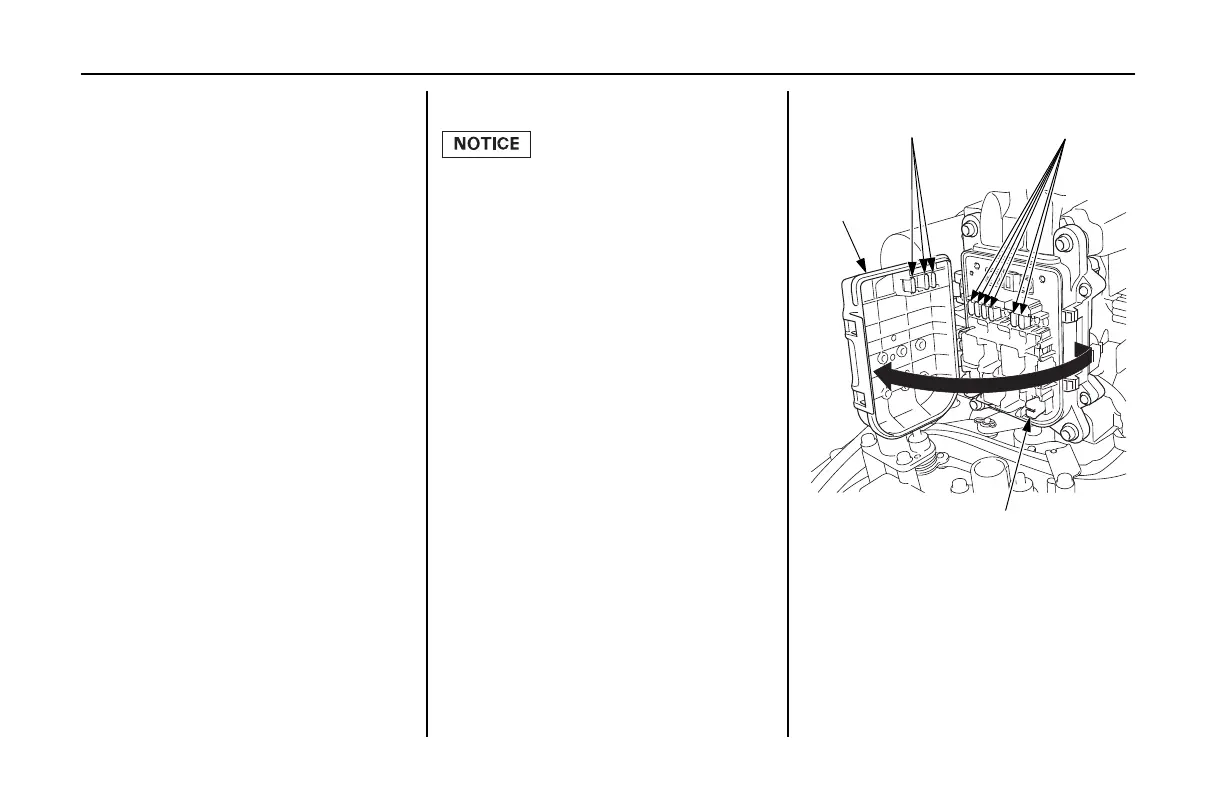

4. Open the junction box cover.
JUNCTION
BOX
COVER
SPARE FUSES
(10 A, 15 A, 30 A)
MAIN FUSES
(10 A, 15 A, 30 A)
FUSE PULLER
