NOTICE
When installing the brake caliper into position, carefully
fit the brake disc between the pads to avoid scratching
them.

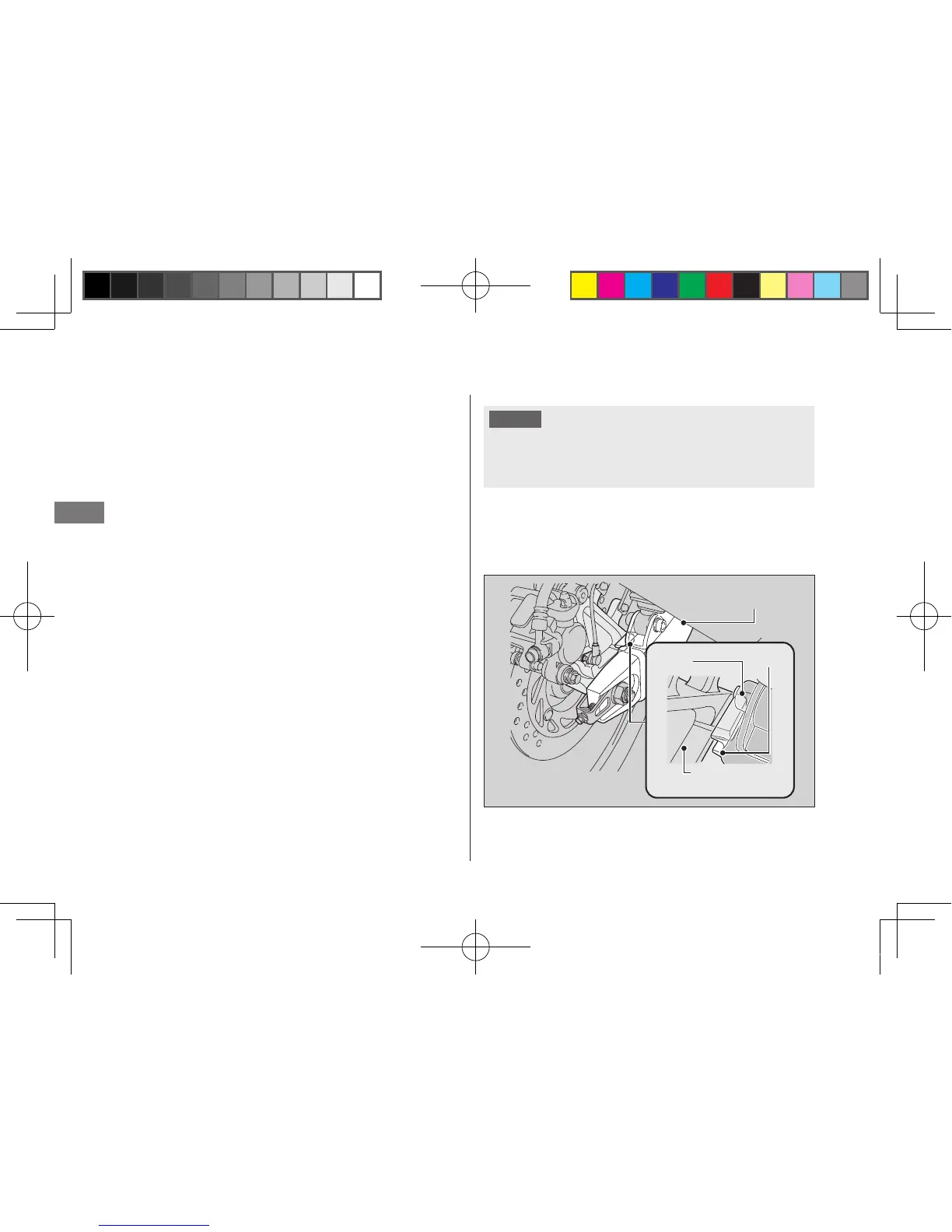

2. Make sure that the lug on the brake
caliper bracket is positioned in the slot on
the swingarm.
Lug
Brake caliper
bracket
Slot
Swingarm
6. Remove the rear axle shaft, side collars
and rear wheel.
a
Support the brake caliper assembly so
that it doesn’t hang from the brake
hose. Do not twist the brake hose.
a
Avoid getting grease, oil, or dirt on the
disc or pad surfaces.
a
Do not push the brake pedal while the
brake caliper is removed.
Installation
1. To install the rear wheel, reverse the
removal procedure.
a
Take care to prevent the brake caliper
from scratching the wheel during
installation.
