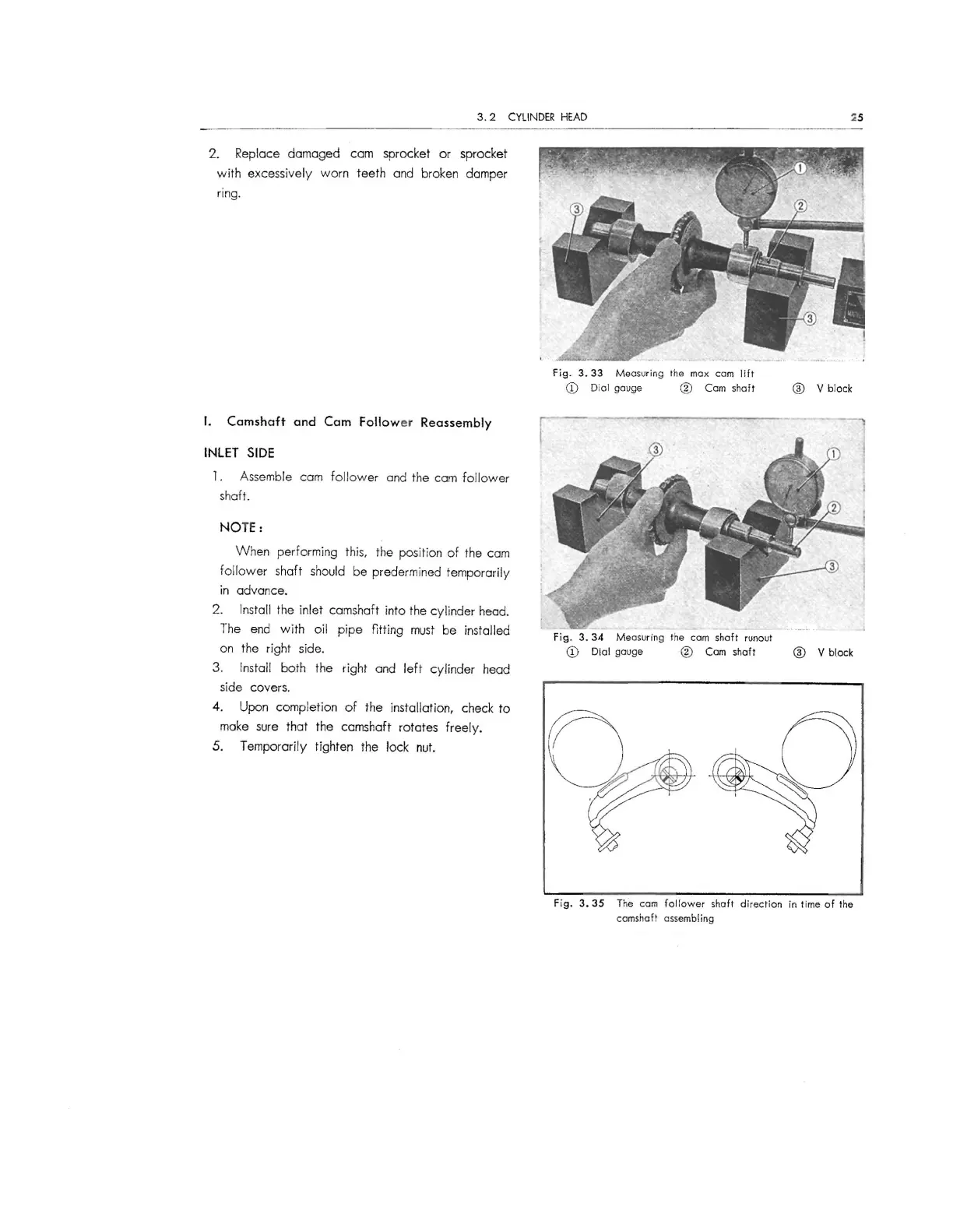

3. 2 CYLINDER HEAD

2. Replace damaged cam sprocket or sprocket

with excessively worn teeth and broken damper

ring.

I. Camshaft and Cam Follow er Reassembly

INLET SIDE

1. Assemble cam follower and the cam fol lower

shaft.

NO TE:

Whe n performing this, the position of the cam

fo llower shaft should be predermined temporarily

in advance.

2. Install the inlet camshaft into the cyl inder head.

The end with oil pipe

fitting must be installed

on the right side.

3. Install both the right and left cylinder head

side covers.

4. Upon completio n of the installation, check to

make sure that the camshaft rotates freel y.

5. Temporarily tighten the lock nut.

Fig. 3. 33 Measuring the max cam lif t

CD Dial gauge ® Cam shaft

® V block

fig . 3. 34 Measuring the cam shaft runout

CD Dial gouge ® Com shaft ® V bl.ock

f ig . 3. 35 The cam follower shaft direction in time of the

camshaft assembling
