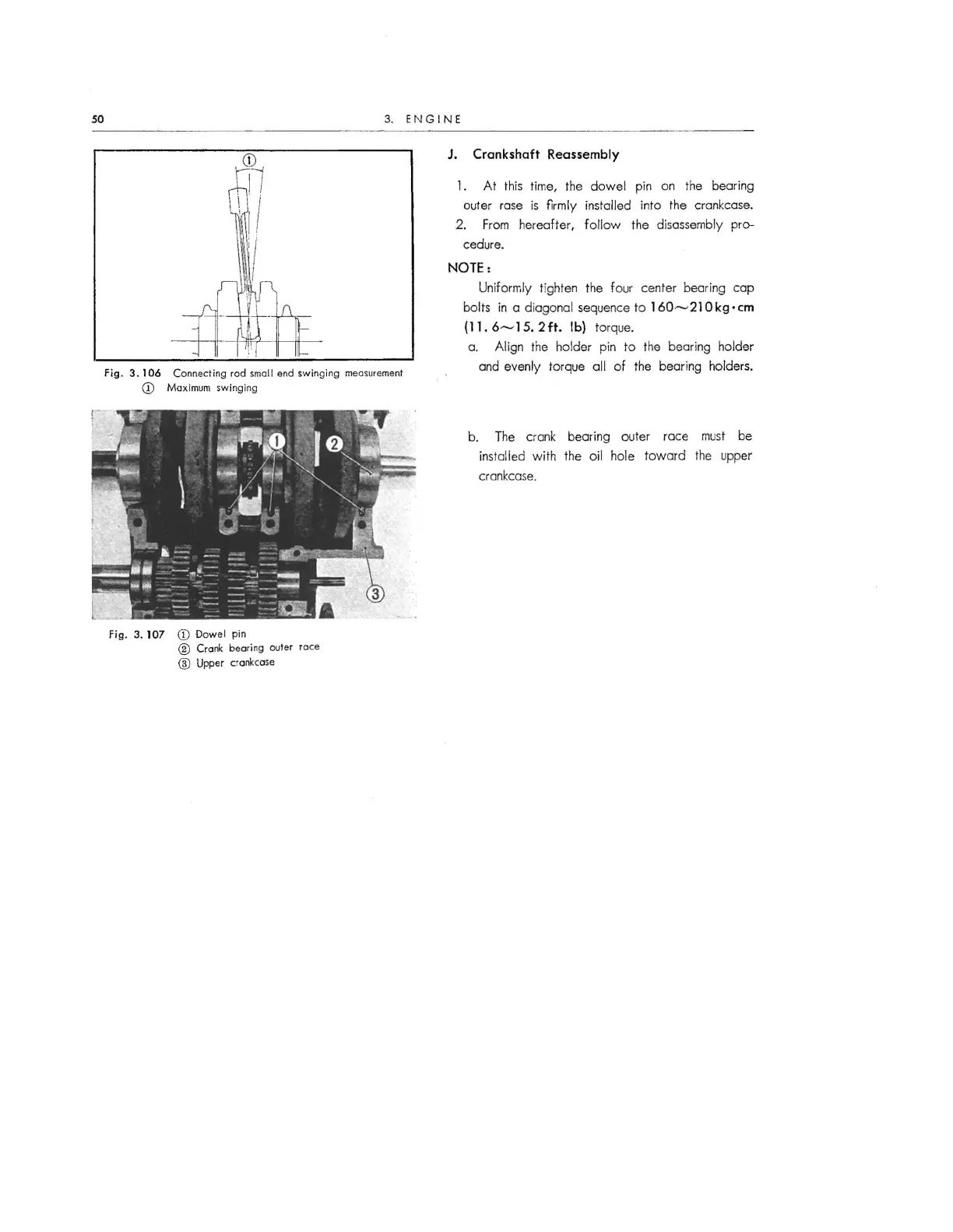

3. ENGINE

J. Crankshaft Reassembly

l. At this time, the dow el pin on the bearing

outer rose is

f1rmly installed into the crankcase.

2. From hereafter, follow the disassembly pro-

cedure.

NOTE:

Uniformly tighten the four center bearing cap

bolts in a diagonal sequence to

1 60~ 21 0 kg· cm

(11.6~15.2ft. lb) torque.

a. Align the holder pin to the bearing holder

fig. 3. 106 Connecting rod small end swinging measurement and evenly torque all of the bearing holders.

CD Maximum swinging

Fig. 3.

107 (D Dowe l pin

® Crank beoring outer race

@ Upper crankcase

b. The crank bearing outer race must be

installed with the oil hole toward the upper

crankcase.
