Servicing Your Honda
120
Seat Removal
Refer to Safety Precautions on page 109.
The seat must be removed for the engine oil filter, air cleaner, spark
plug, battery and fuse maintenance and to remove the rear fender
cover and tank cover assembly, to access the owner’s manual, air
pressure gauge, 40 A spare fuse and tool kit.
Removal
1.
Pull the seat latch (1) at the rear of the seat.
2.
Slide the seat (2) back and lift it.
Installation
1.
Insert the front prongs (3) into the backside of the tank cover (4)
and hooks (5) on the frame, and press the studs (6) into the
grommets (7).
2.
Press down on the seat until locks.

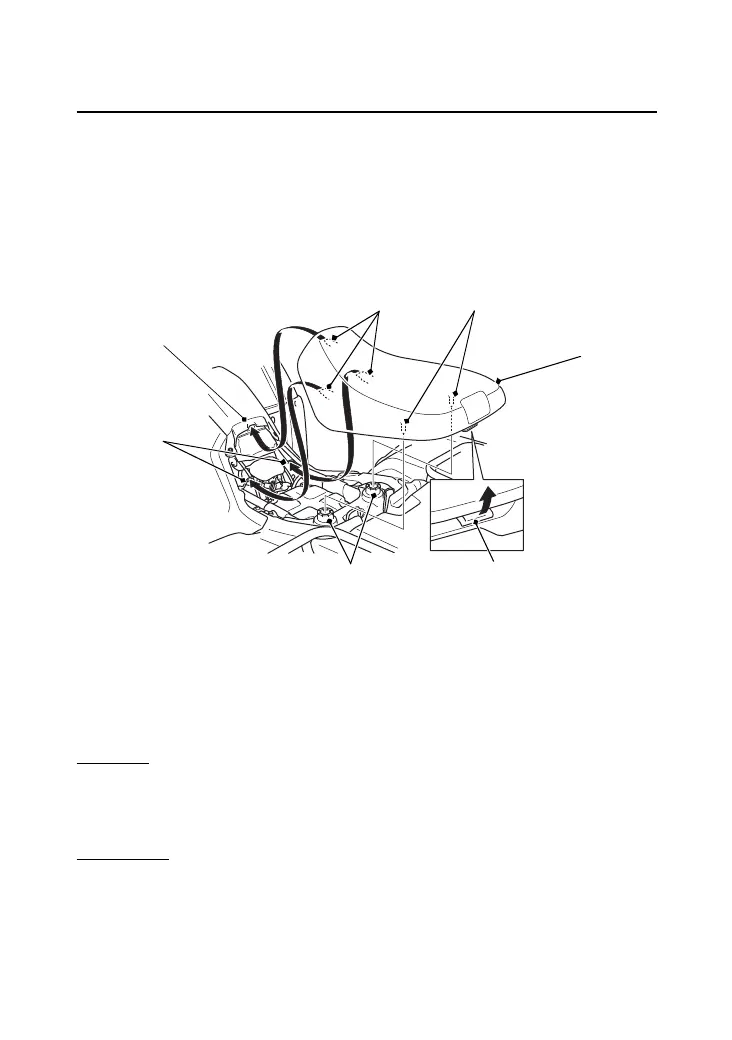

(1)
(3)
(2)
(5)
(4)
(6)
(1) seat latch
(2) seat
(3) front prongs
(5) hooks
(6) studs
(7) grommets
(7)
(4) tank cover
19 TRX500FM1 FM2 (U)-32HR4A40.backup.book Page 120 Wednesday, April 18, 2018 3:36 PM
