Instruments & Controls
34
Controls & Features

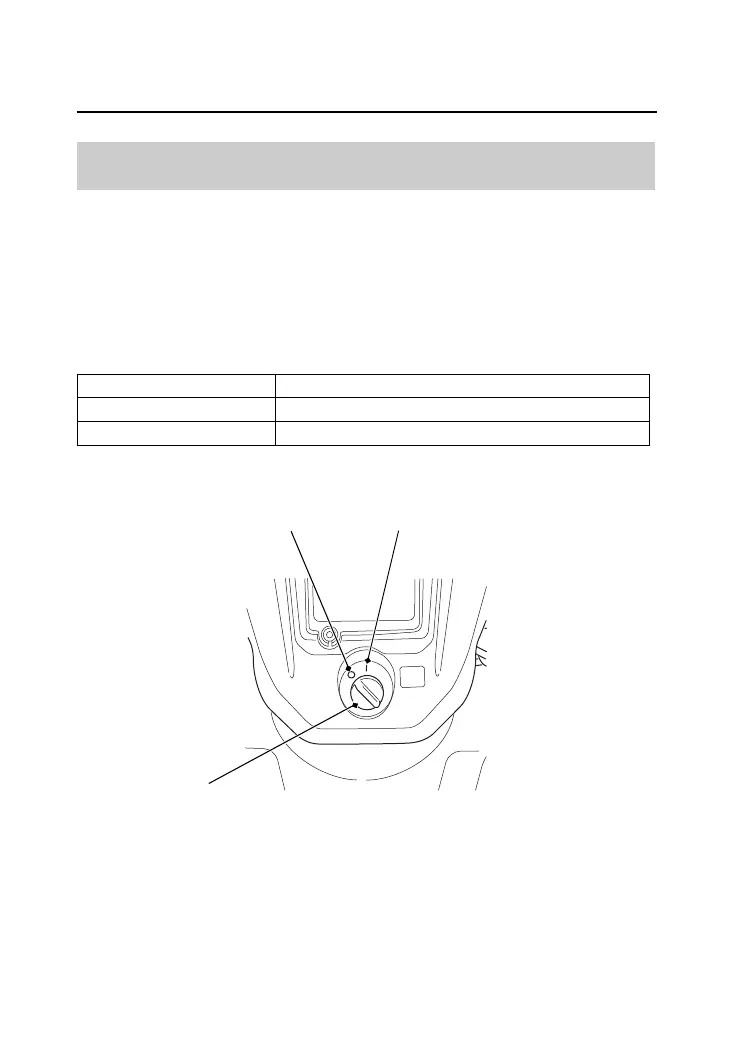

The ignition switch (1) is used for starting and stopping the engine
(page 78). Insert the key and turn it to the right for the ON (q)
position.
The ignition switch is also used to reset the maintenance tripmeter/
maintenance hour meter (page 31).
Ignition Switch
Key Position Function
ON (q) Electrical circuits on.
OFF (w) No electrical circuits function.
CENTRE OF HANDLEBAR
OFF ON
(1)
q ON
w OFF
(1) ignition switch
