Instruments & Controls
40
Controls & Features
The engine stop switch (1) is used to stop the engine in an
emergency. To operate, slide the switch to the OFF (r) position. The
switch must be in the RUN (e) position to start the engine, and it
should normally remain in the RUN (e) position even when the
engine is OFF.
If your ATV is stopped with the ignition switch ON (q) and the engine
stop switch OFF (r), the battery will discharge. Turn the ignition
switch to OFF (w) to prevent battery discharge.

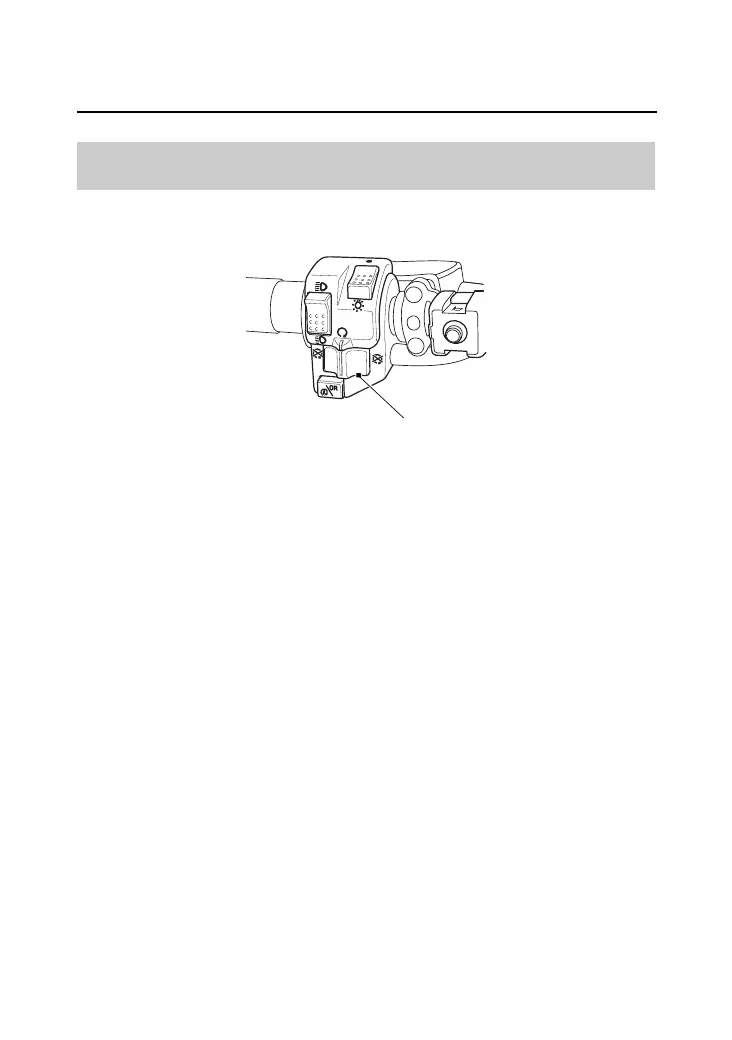

Engine Stop Switch
e r
LEFT HANDLEBAR
r OFF(1) engine stop switch
e RUN
(1)
