Rear Final Gear Oil
(cont’d)
1.
Park your ATV on a firm, level surface.
2.
Place an oil drain pan under the oil drain bolt (1).
3.
Remove the oil fill cap (2), O-ring (3), drain bolt and sealing
washer (4).
4.
After the oil has completely drained, reinstall the drain bolt with
a new sealing washer and tighten it to the specified torque:
12 N·m (1.2 kgf·m, 9 lbf·ft)

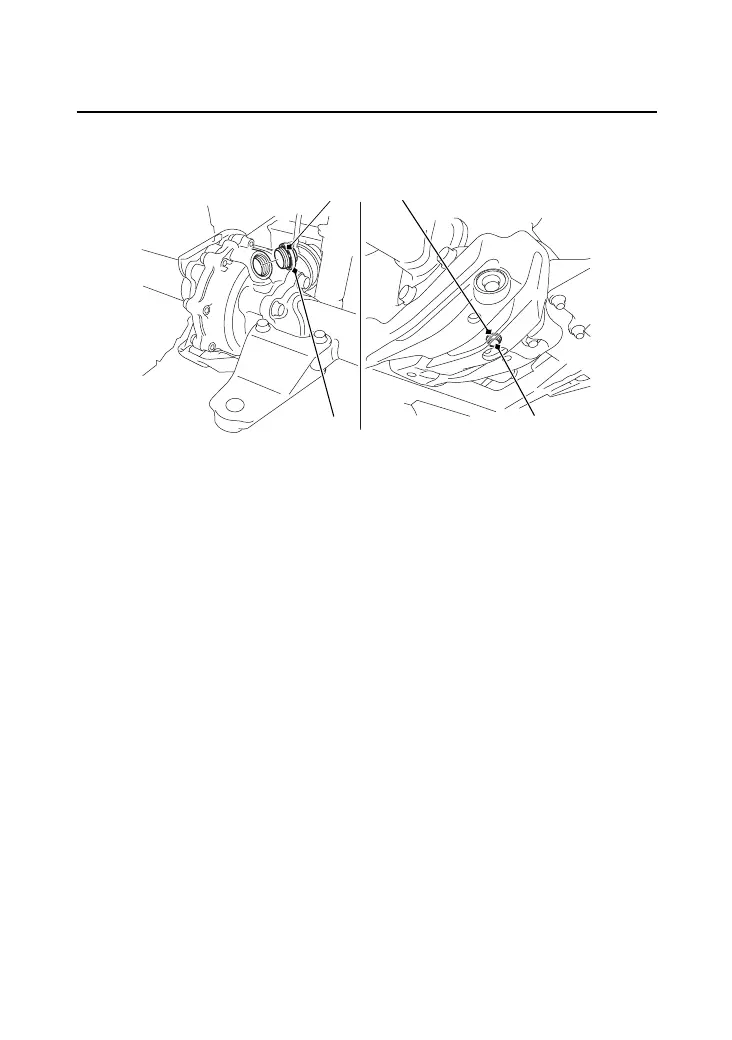

(1) oil drain bolt
(3) (4)
(2) (1)
(2) oil fill cap
(3) O-ring
(4) sealing washer
REAR UNDERSIDE
