Servicing Your Honda
152
Air Cleaner
11.
Install the air cleaner on the air cleaner body.
12.
Install the clamp.
13.
Insert the air cleaner assembly into the air cleaner housing.
14.
Fasten the screw.
15.
Reassemble by reversing the disassembly sequence.

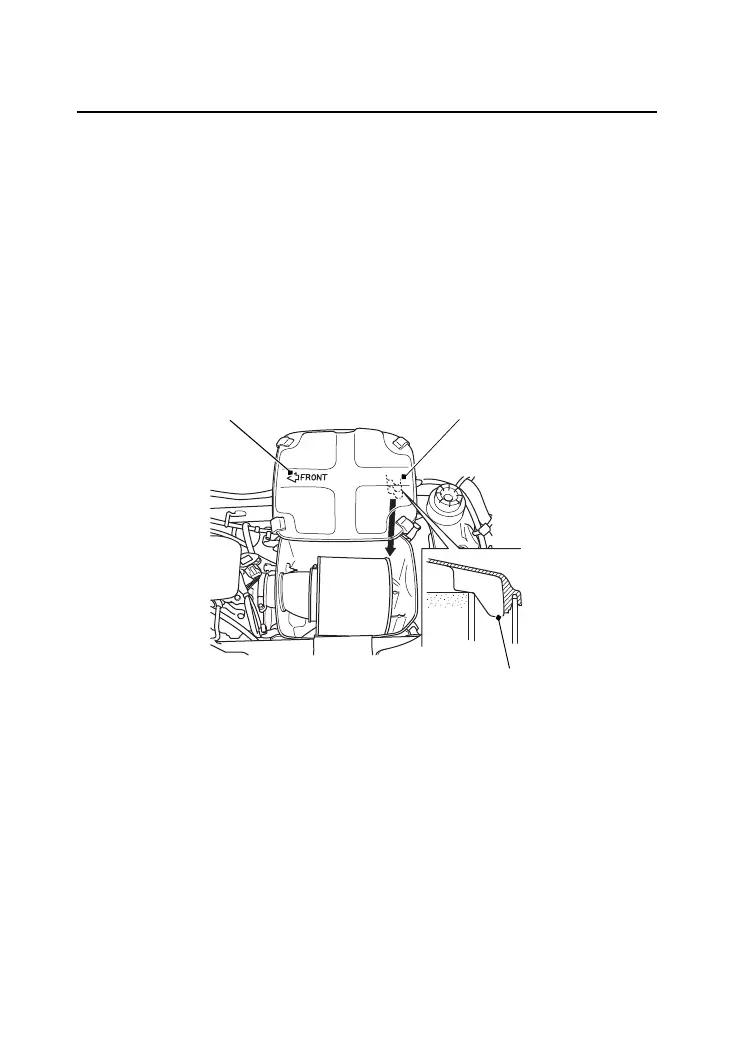

• Install the air cleaner housing cover with the FRONT mark (8)
facing forward and fit the cut out of the tab (9) at the end of
the air cleaner.
UNDER SEAT
(8) FRONT mark
(9) tab
(9)(8)
(9)
19 TRX500FM1 FM2 (U)-32HR4A40.backup.book Page 152 Wednesday, April 18, 2018 3:36 PM
